Brand: Panduit
|
SKU:
277495

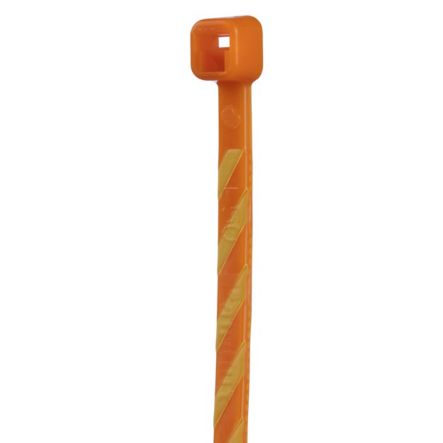

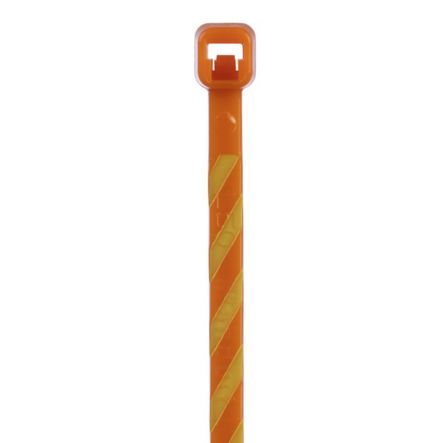

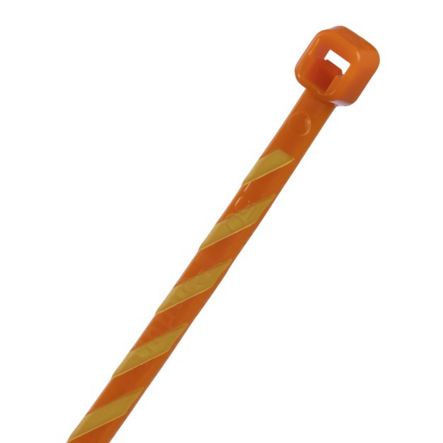

Panduit PLT1M-L3-4 | Plt1M-L3-4 Premium Cable Tie
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT1M-L3-4 | Plt1M-L3-4 Premium Cable Tie
Regular price
$1.46
Unit price
Description
Description
Panduit PLT1M-L3-4 | Plt1M-L3-4 Premium Cable Tie
Pan-Ty locking tie, miniature cross section, 4.0" (102mm) length, nylon 6.6, orange/yellow stripe.
Panduit - PLT1M-L3-4 - Features
- Panduit Pan-Ty Miniature Cable Tie, Miniature, Series: PLT, 4 in Length, 0.1 in Width, 0.036 in Thickness, 0.82 in Diameter Bundle, Lock Mechanism: Locking, 18 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Orange/Yellow Stripe
- Striped Pan-Ty cable ties in 25 color combinations match the universally accepted even count color code
Specifications
Specifications
Panduit - PLT1M-L3-4 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT1M-L3-4 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT1M-L3-4 |
| Item Description | Plt1M-L3-4 Premium Cable Tie |
| Product Type | Premium Cable Tie |
| Color | Orange/Yellow |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 102 |
| Body Width (In.) | 0.1 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.036 |
| Body Thickness (mm) | 0.9 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22.1 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS |
| Application | General |
| Part Features | One-piece, all nylon cable tie accommodate a maxinum bundle diamter of 0.82" (21mm). |
| MPN: | PLT1M-L3-4 |
| Bundle Diameter: | 0.82 in |
| Color: | Orange/Yellow Stripe |
| Length: | 4 in |
| Lock Mechanism: | Locking |
| Material: | Nylon 6.6 |
| Series: | PLT |
| Temperature Rating: | -76 to 185 deg F |
| Tensile Strength: | 18 lb |
| Thickness: | 0.036 in |
| Type: | Miniature |
| Width: | 0.1 in |
Panduit - PLT1M-L3-4 - Package Information
| UPC | 07498353976 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0018 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.0366 |
Panduit - PLT1M-L3-4 - Videos
| Video 1 | Click to View |
|---|
