Brand: Panduit
|
SKU:
313958

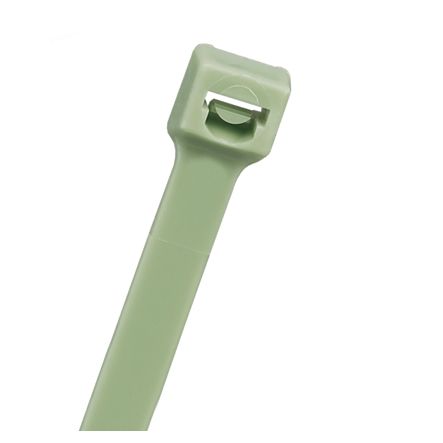

Panduit PLT1M-M109 Cable Tie, 3.9";L (99mm), Miniature, Polypropylene, Green, pack of 1000
Regular price
$95.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT1M-M109 Cable Tie, 3.9";L (99mm), Miniature, Polypr...
Regular price
$95.29
Unit price
Description
Description
Panduit PLT1M-M109 | Pan-Ty PLT1M-M109 Cable Tie, Green, Polypropylene, 3.9"L, 11lb, PK1000
Pan-Ty locking tie, miniature cross section, 3.9 (99mm) length, polypropylene, green.
Panduit - PLT1M-M109 - Features
- For chemical resistance where high loop tensile strength is not required especially in the presence of hydrochloric acid, salts and bases
- Material requires lowering the tool setting (see package label)
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- Polypropylene cable ties have a distinctive green color and are used indoors
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to peed installation
Specifications
Specifications
Panduit - PLT1M-M109 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT1M-M109 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT1M-M109 |
| Item Description | Pan-Ty PLT1M-M109 Cable Tie, Green, Polypropylene, 3.9"L, 11lb, PK1000 |
| Product Type | Premium Cable Tie |
| Color | Green |
| Environment | Indoor/Outdoor |
| Material | Polypropylene |
| Resistance Properties | Chemical Resistant |
| Overall Length (In.) | 3.9 |
| Overall Length (mm) | 99 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.043 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22.1 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 49 |
| Minimum Loop Tensile Strength (lb) | 11 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Application | Chemical Resistant |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT1M-M109 - Package Information
| UPC | 07498354702 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.0669 |
| Standard. Ctn. Quantity | 50000 |
| Standard. Ctn. Volume (cf) | 3.3446 |
Panduit - PLT1M-M109 - Videos
| Video 1 | Click to View |
|---|
