Panduit PLT1M-M4Y | Premium Cable Tie
Description
Description

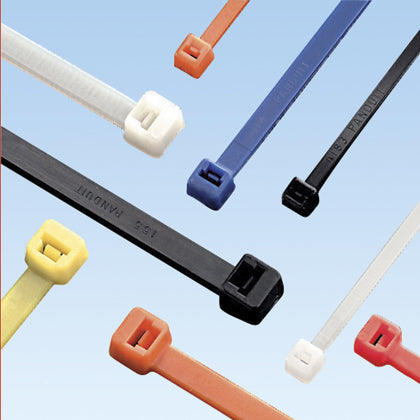

Organize your cables efficiently with our standard locking cable tie. This cable tie has a curved tip for easy threading and a nylon material that resists weather.
Cable Tie, 3.9", Miniature cross section
Pan-Ty metal detectable cable ties and mounts are designed to help the food, beverage and pharmaceutical industries meet product manufacturing safety standards. Featuring metal impregnated material, these metal detectable products are identifiable by metal detection equipment. Panduit metal detectable products help companies comply with the U.S. Food and Drug Administration HACCP standards and the European Union (EU) hygiene monitoring regulations. Additionally, the distinct blue color facilitates quick visual detection. Metal detectable cable ties and mounts are available in either nylon material for general purpose applications or polypropylene material which provides superior resistance to harsh cleaning chemicals. The GT series of tools captures the cut-off tips of ties to help further prevent process stream contamination. The Pan-Ty metal detectable cable ties, cable tie mounts and installation tools deliver a complete bundling solution to help reduce product contamination and loss.
Panduit Pan-Ty Cable Tie, Miniature Cross Section Plenum Rated, Series: PLT Series, 3.9 in Length, 0.1 in Width, 0.04 in Thickness, 0.87 in Diameter Bundle, Lock Mechanism: Locking, 18 lb Tensile Strength, -70 to 185 deg F, Nylon 6.6, Yellow
Panduit - PLT1M-M4Y - Features
- 1-piece locking wedge for consistent performance and reliability
- Low thread force and high loop tensile strength
- For indoor use
- Versatile cable ties can be used in countless applications
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- Curved tip is easy to pick up from flat surces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PLT1M-M4Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT1M-M4Y |
| Type | Cables Ties And Accessories |
| Size | 4" |
| UNSPSC Code | 39121703 |
| Material Description | Nylon 6.6 () |
| Product Type | Premium Cable Tie |
| Color | Yellow |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Overall Length (In.) | 3.94 |
| Overall Length (mm) | 99 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.043 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22.1 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498344407 |
Panduit - PLT1M-M4Y - Videos
| Panduit PLT1M-M4Y Video 1 | Click to View |
|---|
