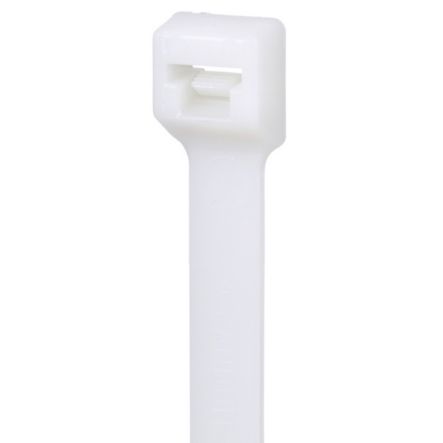

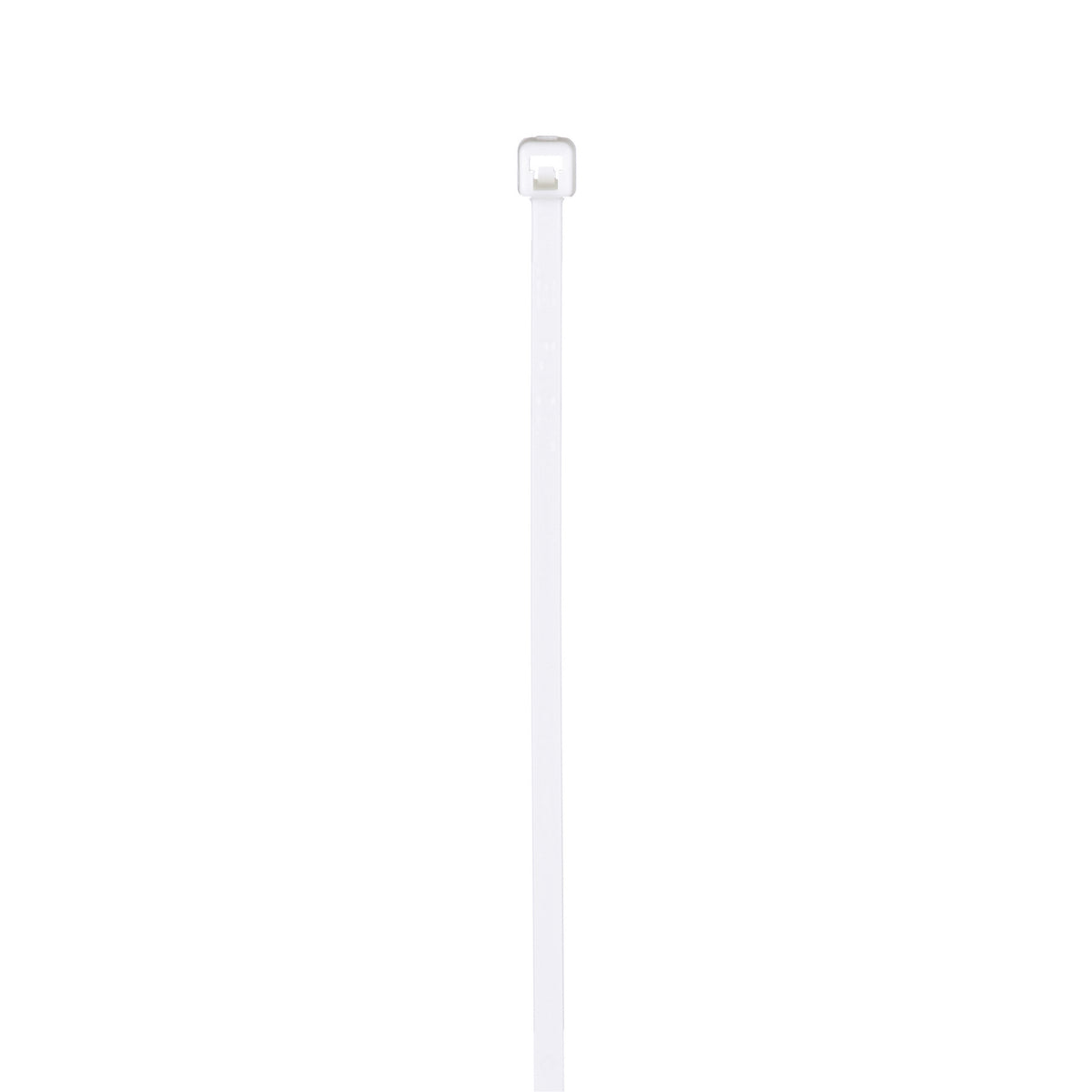

Panduit PLT1M-M69 | Pan-Ty Cable Tie, Ivory, Flame Retardant PA6.6, 3.9"L, 18lb, PK1000
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT1M-M69 | Pan-Ty Cable Tie, Ivory, Flame Retardant PA6.6,...
Description
Description
Organize your cables efficiently with our standard locking cable tie. This cable tie has a curved tip for easy threading and a nylon material that resists weather.
Panduit PLT1M-M69 Locking Cable Ties are designed to satisfy the needs of flame retardant (UL 94V-0) applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster i nitial threading. Miniature cross section, 3.9" (99mm) length. Made of Flame Retardant Nylon 6.6, are Ivory in color and come in packages of 1000.
Pan-Ty metal detectable cable ties and mounts are designed to help the food, beverage and pharmaceutical industries meet product manufacturing safety standards. featuring metal impregnated material, these metal detectable products are identifiable by metal detection equipment. Panduit metal detectable products help companies comply with the U.S. food and Drug Administration HACCP* standards and the European Union (EU) hygiene monitoring regulations. Additionally, the distinct blue color facilitates quick visual detection. metal detectable cable ties and mounts are available in either nylon material for general purpose applications or polypropylene material which provides superior resistance to harsh cleaning chemicals. the GT series of tools captures the cut-off tips of ties to help further prevent process stream contamination. the Pan-Ty metal detectable cable ties, cable tie mounts and installation tools deliver a complete bundling solution to help reduce product contamination and loss.
Panduit Pan-Ty Miniature Cable Tie, Cross Section, 3.9 in Length, 0.1 in Width, 0.04 in Thickness, 0.87 in Bundle Dia, Locking, 18 lb Tensile, -76 to 212 deg F, Nylon 6.6, Ivory
Panduit - PLT1M-M69 - Features
- 1-piece locking wedge for consistent performance and reliability
- Low thread force and high loop tensile strength
- Flammability rating of UL94V-0 - indoor use
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- Curved tip is easy to pick up from flat surfaces and allows faster initialthreading to speed installation (Light-Heavy cross section ties have a straight tip)
- Complementary flame retardant mounts available
Specifications
Specifications
Panduit - PLT1M-M69 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT1M-M69 |
| Type | Cables Ties And Accessories |
| Size | 4" |
| UNSPSC Code | 39121703 |
| Material Description | Nylon 6.6 (Flame-Retardant) |
| Product Type | Premium Cable Tie |
| Color | Ivory |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Resistance Properties | Flame-Retardant |
| Overall Length (In.) | 3.94 |
| Overall Length (mm) | 99 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.043 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 100 |
| Maximum Operating Temperature (°F) | 212 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498355000 |
Panduit - PLT1M-M69 - Videos
| Panduit PLT1M-M69 Video 1 | Click to View |
|---|
