Brand: Panduit
|
SKU:
1016396

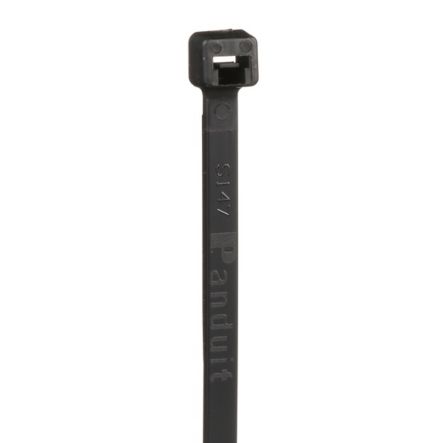

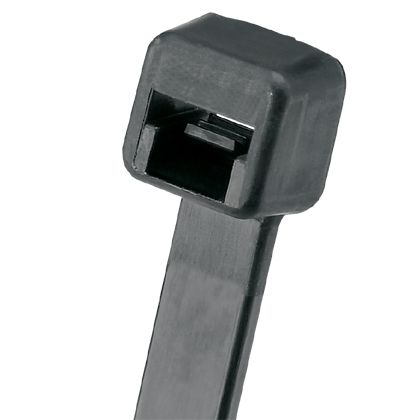

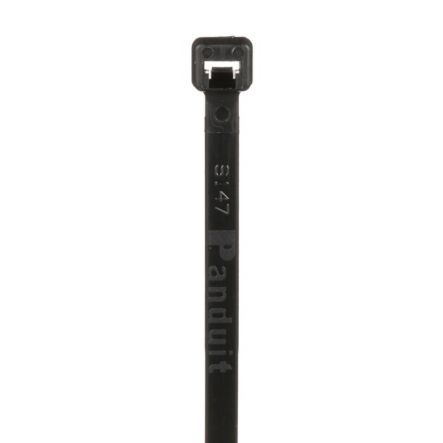

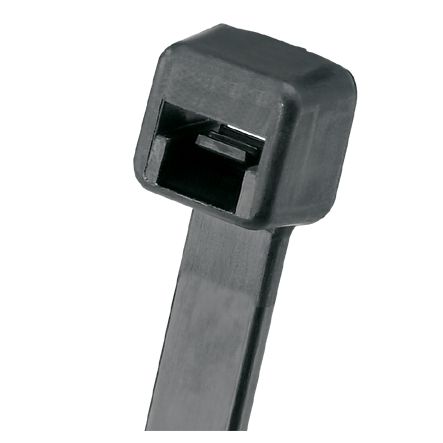

Panduit PLT2.5I-C0 | Cable Tie | UPC - 07498354151
Regular price
$1.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT2.5I-C0 | Cable Tie | UPC - 07498354151
Regular price
$1.36
Unit price
Description
Description
Panduit Pan-Ty Cable Tie, Intermediate, Series: PLT, 9.7 in Length, 0.15 in Width, 0.05 in Thickness, 2-1/2 in Bundle Dia, Locking, 40 lb Tensile, -76 to 185 deg F, Nylon 6.6, Black
Features + Benefits
- 1-piece locking wedge for consistent performance and reliability
- Low thread force and high loop tensile strength
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
Panduit PLT2.5I-C0 Key Specs
| Product Type | Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Sub Brand | Pan-Ty |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Material | Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Maximum Bundle Diameter (In.) | 2.5 |
| Maximum Bundle Diameter (mm) | 63.5 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Length (In.) | 9.7 |
| Overall Length (mm) | 246 |
| Body Width (In.) | 0.145 |
| Body Width (mm) | 3.7 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit PLT2.5I-C0 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PLT1.5M-CO Product Page | Download and View |
| Videos | Premium Cable Ties | Download and View |
| Selection Guides | Cable Ties Product Selection Guide. | Download and View |
| Part Drawings | PAN-TY Cable Tie - PLT Series: SS-5540 Sheet 1 | Download and View |
