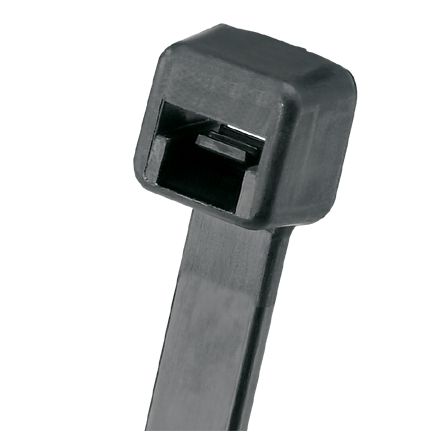

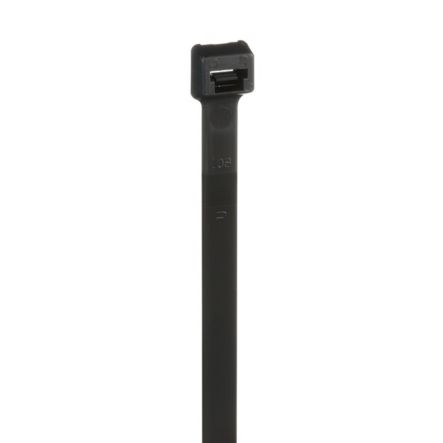

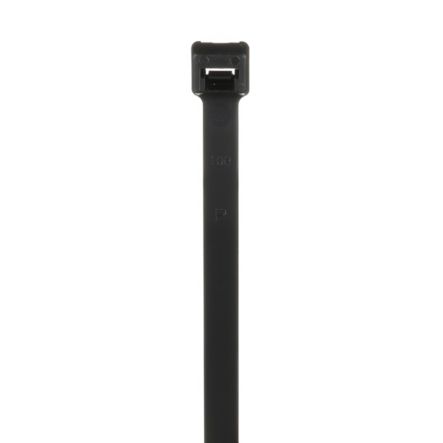

Panduit PLT2H-TL100 | Pan-Ty PLT2H-TL100 Cable Tie, Black, UV Polypropylene, 8.1"L, 50lb, PK250
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT2H-TL100 | Pan-Ty PLT2H-TL100 Cable Tie, Black, UV Polyp...
Description
Description
Panduit PLT2H-TL100 Locking Cable Ties are designed to satisfy the needs of chemical resistance applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Light-heavy cross section, 8.1" (206mm) length. Made of Weather Resistant Polypropylene with high resistance to ultraviolet light, are black in color and come in packages of 250.
Panduit - PLT2H-TL100 - Features
- Cable Tie, 8.1";, Light-Heavy cross section
- For chemical resistance where high loop tensile strength is not required especially in the presence of hydrochloric acid, salts and bases
- Greater resistance to damage caused by ultraviolet light - indoor or outdoor use
- Material requires lowering the tool setting (see package label)
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading o speed installation
Specifications
Specifications
Panduit - PLT2H-TL100 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT2H-TL100 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT2H-TL100 |
| Item Description | Pan-Ty PLT2H-TL100 Cable Tie, Black, UV Polypropylene, 8.1"L, 50lb, PK250 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Polypropylene |
| Resistance Properties | Chemical and UV Resistant |
| Overall Length (In.) | 8.1 |
| Overall Length (mm) | 206 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.6 |
| Body Thickness (In.) | 0.075 |
| Body Thickness (mm) | 1.9 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 51 |
| Minimum Bundle Diameter (In.) | 0.188 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS Compliant |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT2H-TL100 - Package Information
| UPC | 07498338764 |
|---|---|
| Standard Package Quantity | 250 |
| Standard Package Volume (cf) | 0.1544 |
| Standard. Ctn. Quantity | 2500 |
| Standard. Ctn. Volume (cf) | 1.5436 |
Panduit - PLT2H-TL100 - Videos
| Video 1 | Click to View |
|---|
