Panduit PLT2H-TL109 | PLT2H-TL109 Premium Cable Tie
Regular price
$181.07
Unit price
Description
Description

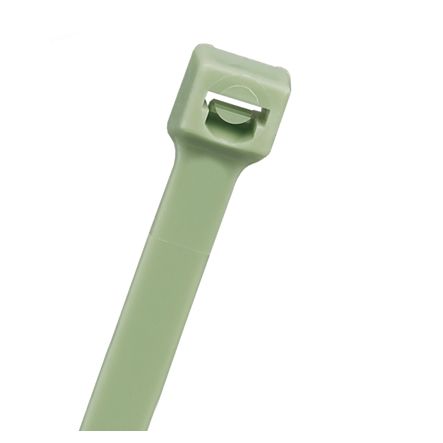

Panduit PLT2H-TL109 | PLT2H-TL109 Premium Cable Tie
Pan-Ty locking tie, light-heavy cross section, 8.1 (206mm) length, polypropylene, green.
Panduit - PLT2H-TL109 - Features
- Cable Tie, 8.1";, Light-Heavy cross section
- For chemical resistance where high loop tensile strength is not required especially in the presence of hydrochloric acid, salts and bases
- Material requires lowering the tool setting (see package label)
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- Polypropylene cable ties have a distinctive green color and are used indoors
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to peed installation
Specifications
Specifications
Panduit - PLT2H-TL109 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT2H-TL109 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT2H-TL109 |
| Item Description | PLT2H-TL109 Premium Cable Tie |
| Product Type | Premium Cable Tie |
| Color | Green |
| Environment | Outdoor |
| Material | Polypropylene |
| Resistance Properties | Chemical Resistant |
| Overall Length (In.) | 8.1 |
| Overall Length (mm) | 206 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.6 |
| Body Thickness (In.) | 0.075 |
| Body Thickness (mm) | 1.9 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 50.8 |
| Minimum Bundle Diameter (In.) | 0.19 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS Compliant |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH |
| Application | Chemical Resistant |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT2H-TL109 - Package Information
| UPC | 07498338765 |
|---|---|
| Standard Package Quantity | 250 |
| Standard Package Volume (cf) | 0.1544 |
| Standard. Ctn. Quantity | 2500 |
| Standard. Ctn. Volume (cf) | 1.5436 |
