Panduit PLT2I-M76 | Pan-Ty PLT2I-M76 Cable Tie, Aqua, Tefzel, UV, H...
Description
Description

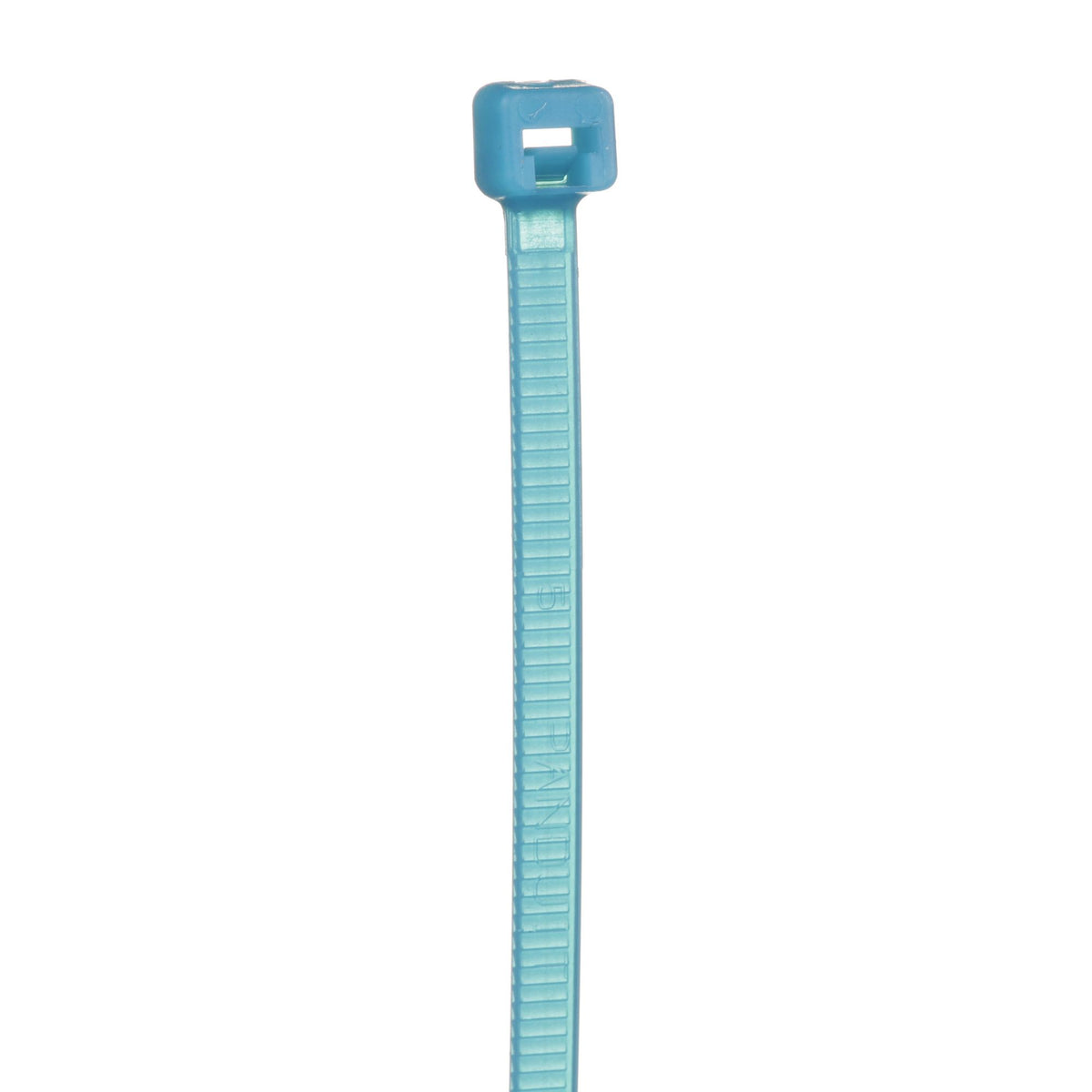

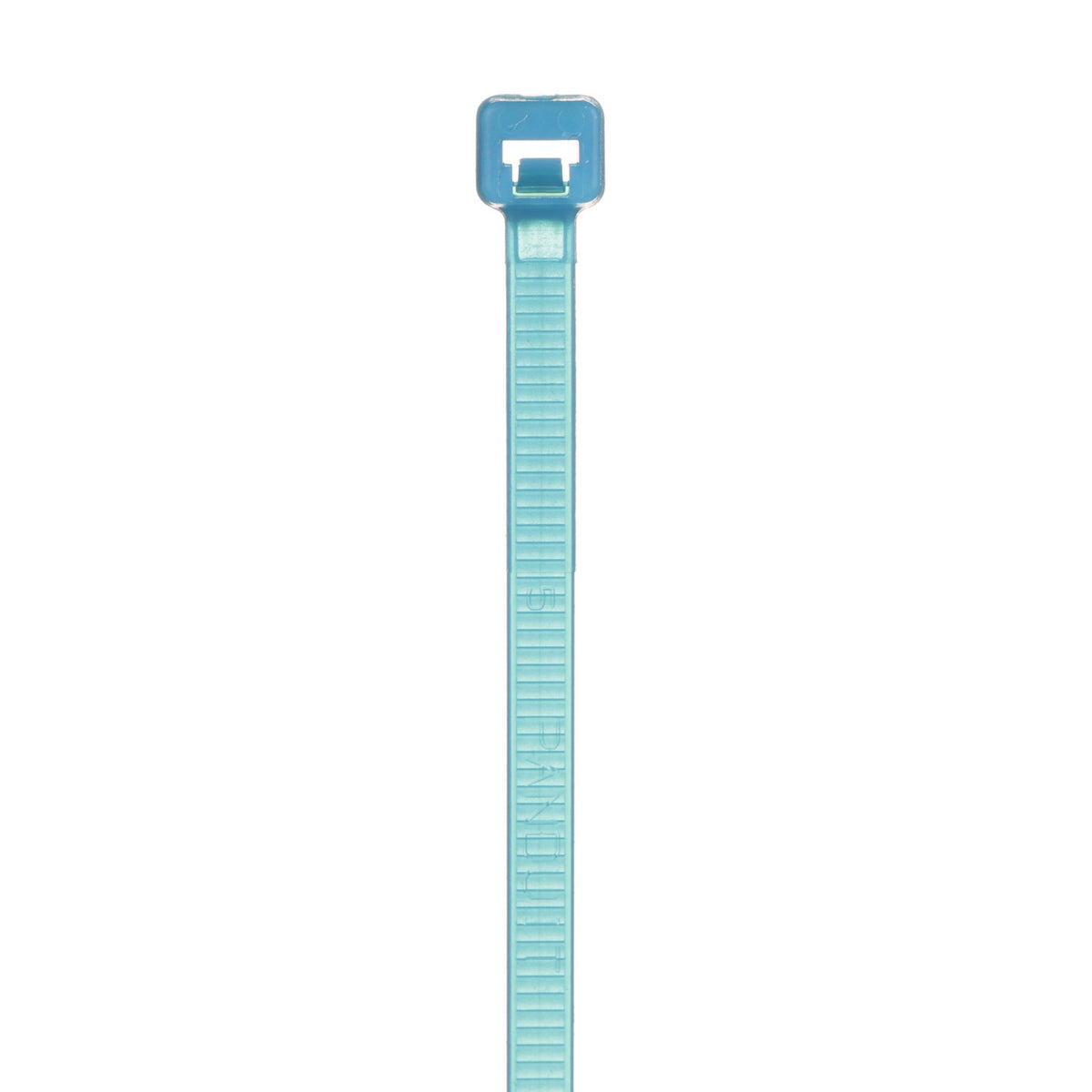

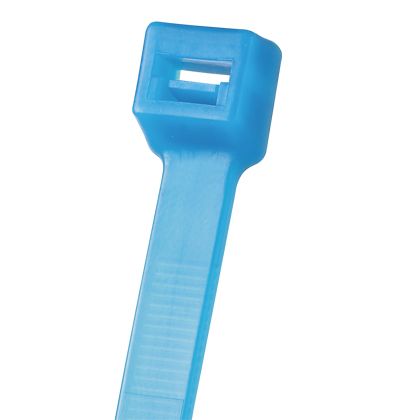

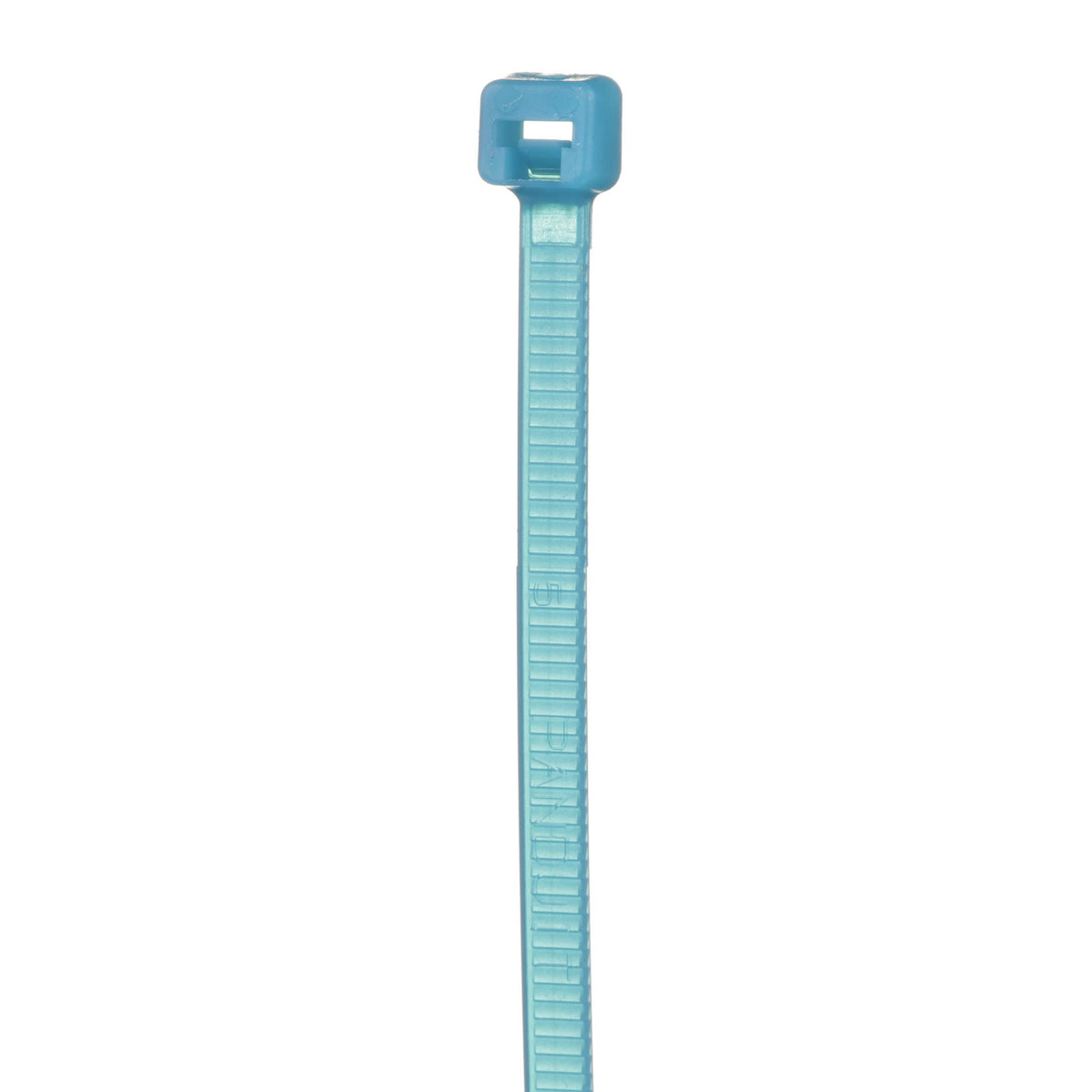

Panduit PLT2I-M76 Tefzel locking cable ties are designed for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures. Ideal for use in nuclear power facilities and chemical processing plants. Low smoke density and excellent flammability rating of UL 94V-0. Intermediate cross section, 8.0" (203mm) length. For indoor or outdoor use, made of Tefzel, are a distinctive aqua blue in color and come in packages of 1000.
Panduit PLT2I-M76 Cable Tie, Int, 8in, Tefzel, Blue, 1000pk
Specifications
Specifications
Panduit - PLT2I-M76 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT2I-M76 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT2I-M76 |
| Item Description | Pan-Ty PLT2I-M76 Cable Tie, Aqua, Tefzel, UV, High Heat, 8"L, 30lb, PK1000 |
| Product Type | Premium Cable Tie |
| Color | Aqua |
| Environment | Indoor/Outdoor |
| Material | Tefzel |
| Resistance Properties | Chemical, Radiation, UV and High Heat Resistant |
| Overall Length (In.) | 8 |
| Overall Length (mm) | 203 |
| Body Width (In.) | 0.135 |
| Body Width (mm) | 3.4 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 51 |
| Minimum Bundle Diameter (In.) | 0.13 |
| Minimum Bundle Diameter (mm) | 3.3 |
| Minimum Loop Tensile Strength (N) | 133 |
| Minimum Loop Tensile Strength (lb) | 30 |
| Maximum Operating Temperature (°C) | 170 |
| Maximum Operating Temperature (°F) | 338 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854, UL 62275 Compliant (Type 1, 11), RoHS Compliant |
| Military Cross Reference Number | MS3367-5-15 |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT2I-M76 - Package Information
| UPC | 07498354814 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1544 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 1.5436 |
