Brand: Panduit
|
SKU:
104679

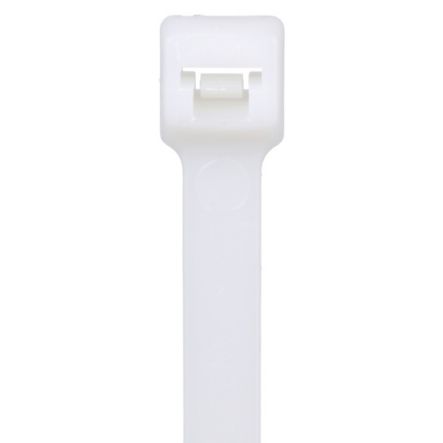

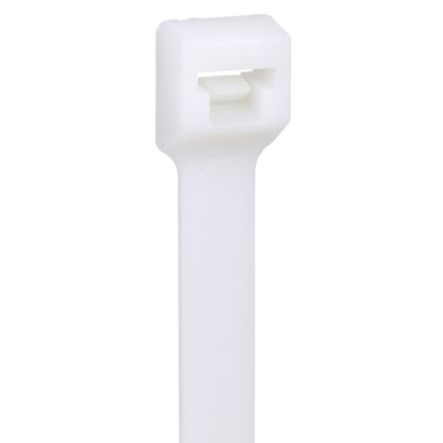

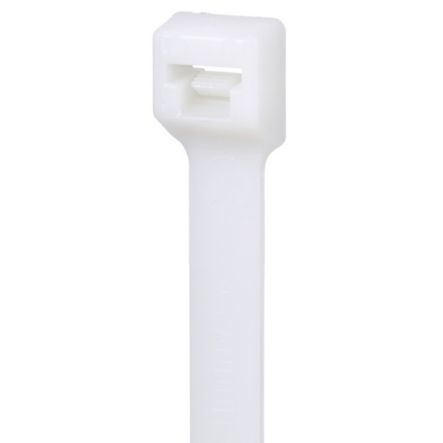

Panduit PLT2M-C | Cable Tie, 8.0";L (203mm), Miniature, Nylon, Natural, Pack of 100
Regular price
$22.42
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT2M-C | Cable Tie, 8.0";L (203mm), Miniature, Nylon,...
Regular price
$22.42
Unit price
Description
Description
Panduit PLT2M-C | Pan-Ty PLT2M-C Cable Tie, PA6.6, 8"L, 18lb, PK100
Panduit PLT2M-C Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Miniature cross section, 8.0" (203mm) length. Made of Nylon 6.6, are natural in color and come in packages of 100.
Panduit - PLT2M-C - Features
- Cable Tie, 8.0";, Miniature cross section
- For indoor use
- Versatile cable ties can be used in countless applications
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- A variety of materials and colors available for specific applications
- Miniature to Standard cross sections feature a curved tip for easy threading and handling
Specifications
Specifications
Panduit - PLT2M-C - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT2M-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT2M-C |
| Item Description | Pan-Ty PLT2M-C Cable Tie, PA6.6, 8"L, 18lb, PK100 |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 8 |
| Overall Length (mm) | 203 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.043 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 51 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT2M-C - Package Information
| UPC | 07498354029 |
|---|---|
| Standard Pkg. Qty. | 100 |
| Standard Package Volume (cf) | 0.0321 |
| Standard Ctn. Qty. | 1000 |
| Standard Ctn. Volume (cf) | 0.3207 |
Panduit - PLT2M-C - Videos
| Video 1 | Click to View |
|---|
