Brand: Panduit
|
SKU:
987344

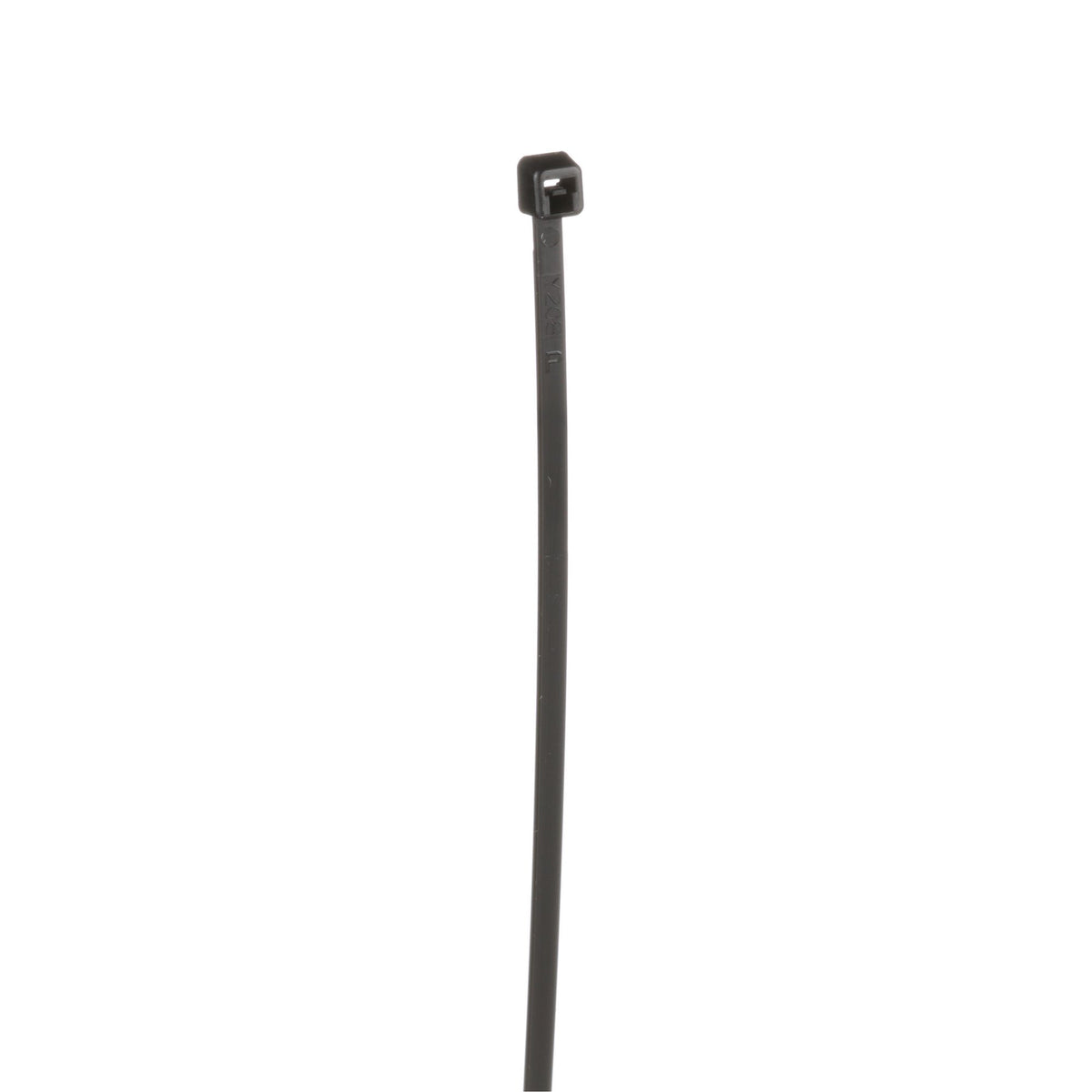

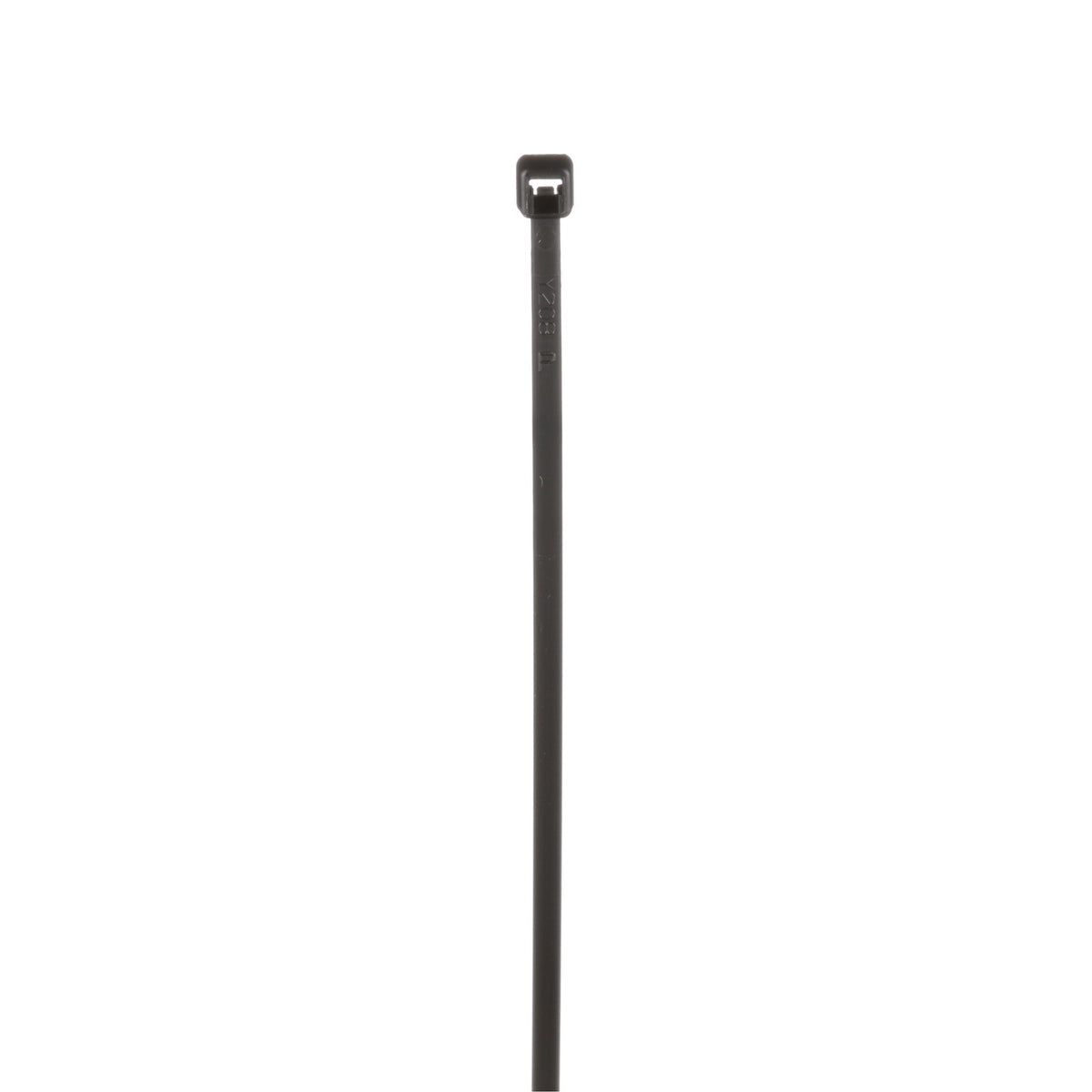

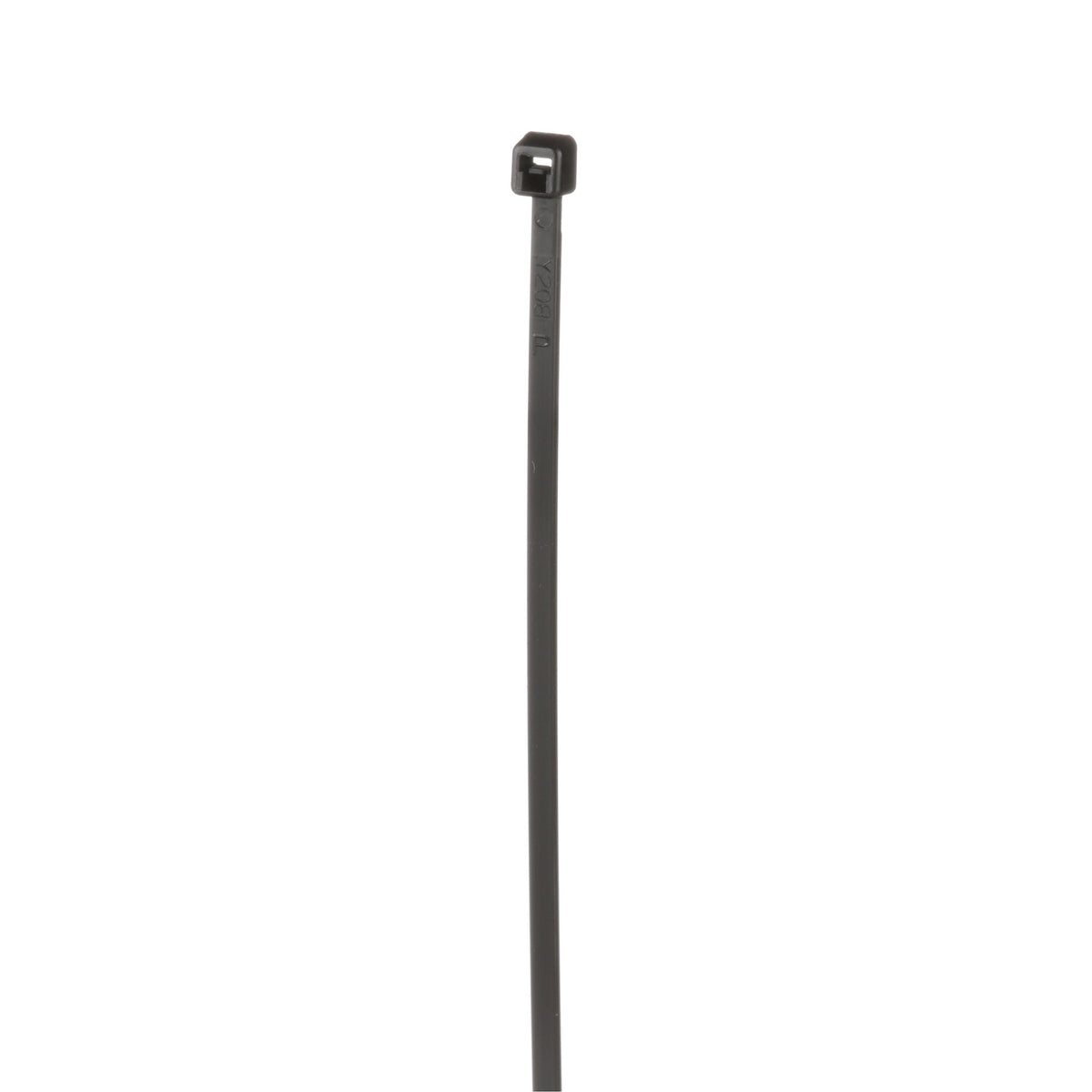

Panduit PLT2M-M20 | Pan-Ty PLT2M-M20 Cable Tie, Black, PA6.6, 8"L, 18lb, PK1000
Regular price
$80.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT2M-M20 | Pan-Ty PLT2M-M20 Cable Tie, Black, PA6.6, 8&quo...
Regular price
$80.93
Unit price
Description
Description
Panduit PLT2M-M20 | Pan-Ty PLT2M-M20 Cable Tie, Black, PA6.6, 8"L, 18lb, PK1000

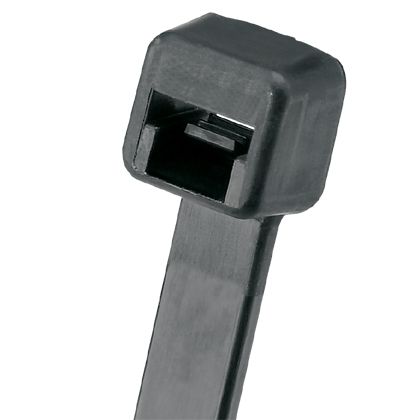

Panduit PLT2M-M20 Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Miniature cross section, 8.0" (203mm) length. Made of Nylon 6.6, are black in color and come in packages of 1000.
Panduit PLT2M-M20 Cable Tie, Min, 8in, Nylon, Blue, 1000pk
Specifications
Specifications
Panduit - PLT2M-M20 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT2M-M20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT2M-M20 |
| Item Description | Pan-Ty PLT2M-M20 Cable Tie, Black, PA6.6, 8"L, 18lb, PK1000 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 8 |
| Overall Length (mm) | 203 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.043 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 51 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT2M-M20 - Package Information
| UPC | 07498356311 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.0866 |
| Standard Ctn. Quantity | 25000 |
| Standard Ctn. Volume (cf) | 2.1638 |
Panduit - PLT2M-M20 - Videos
| Video 1 | Click to View |
|---|
