Brand: Panduit
|
SKU:
104675-EA

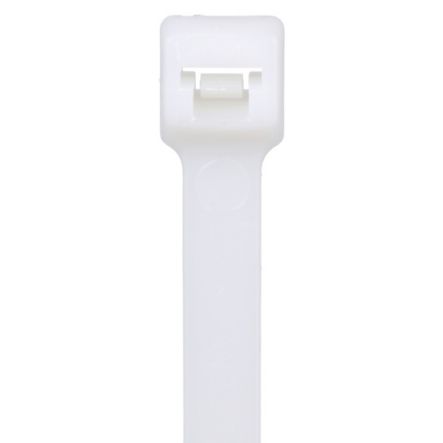

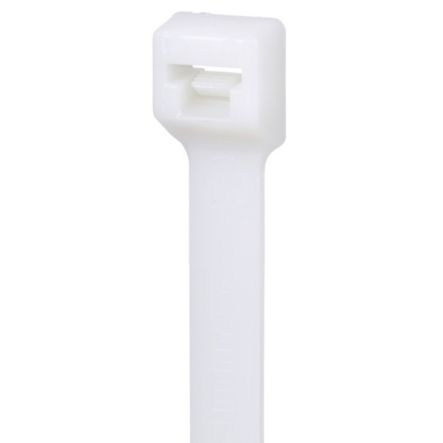

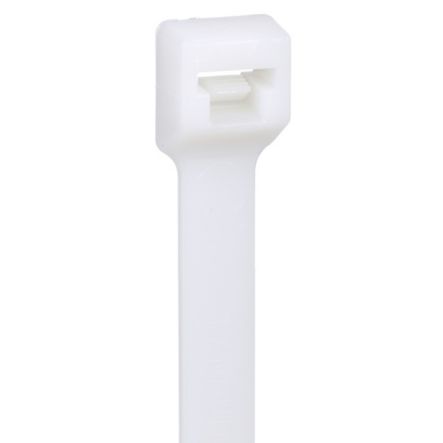

Panduit PLT2S-C | Pan-Ty PLT2S-C Cable Tie, PA6.6, 7.4"L, 50lb, PK100
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT2S-C | Pan-Ty PLT2S-C Cable Tie, PA6.6, 7.4"L, 50lb...
Regular price
$1.46
Unit price
Description
Description
Panduit PLT2S-C | Pan-Ty PLT2S-C Cable Tie, PA6.6, 7.4"L, 50lb, PK100
Panduit PLT2S-C Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 7.4" (188mm) length. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
Panduit PLT2S-C - CABLE TIE - CABLE TIE 7.4" 50LB
Specifications
Specifications
Panduit - PLT2S-C - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT2S-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT2S-C |
| Item Description | Pan-Ty PLT2S-C Cable Tie, PA6.6, 7.4"L, 50lb, PK100 |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 7.4 |
| Overall Length (mm) | 188 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 1.88 |
| Maximum Bundle Diameter (mm) | 47.8 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant |
| Military Cross Reference Number | MS3367-1-9 |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT2S-C - Package Information
| UPC | 07498354045 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0321 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.3207 |
Panduit - PLT2S-C - Videos
| Video 1 | Click to View |
|---|
