Brand: Panduit
|
SKU:
668610
Panduit PLT2S-M | Pan-Ty PLT2S-M Cable Tie, PA6.6, 7.4"L, 50lb, PK1000
Regular price
$99.21
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT2S-M | Pan-Ty PLT2S-M Cable Tie, PA6.6, 7.4"L, 50lb...
Regular price
$99.21
Unit price
Description
Description

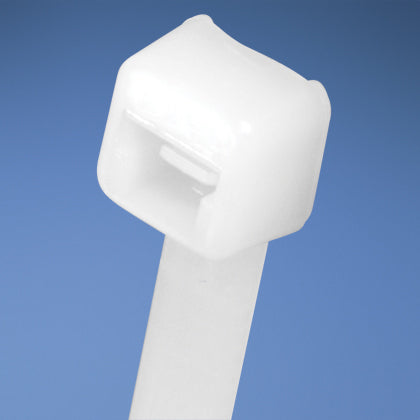

Panduit PLT2S-M | Pan-Ty PLT2S-M Cable Tie, PA6.6, 7.4"L, 50lb, PK1000
Panduit PLT2S-M Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 7.4" (188mm) length. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.
Panduit - PLT2S-M - Features
- Panduit Pan-Ty Cable Tie, Plenum Rated Standard, Series: PLT, 7.4 in Length, 0.19 in Width, 0.05 in Thickness, 1.88 in Bundle Dia, Locking, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
- Features + Benefits
- 1-piece locking wedge for consistent performance and reliability
- Low thread force and high loop tensile strength
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
Specifications
Specifications
Panduit - PLT2S-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT2S-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT2S-M |
| Item Description | Pan-Ty PLT2S-M Cable Tie, PA6.6, 7.4"L, 50lb, PK1000 |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 7.4 |
| Overall Length (mm) | 188 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 1.88 |
| Maximum Bundle Diameter (mm) | 47.8 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant |
| Military Cross Reference Number | MS3367-1-9 |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT2S-M - Package Information
| UPC | 07498354078 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.2210 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 2.2103 |
Panduit - PLT2S-M - Videos
| Video 1 | Click to View |
|---|
