Brand: Panduit
|
SKU:
367744

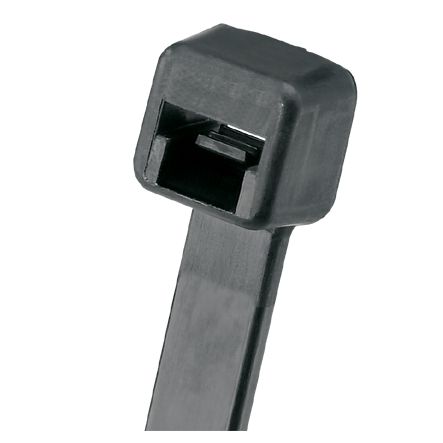

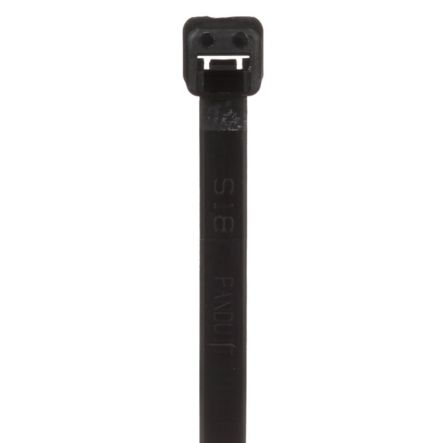

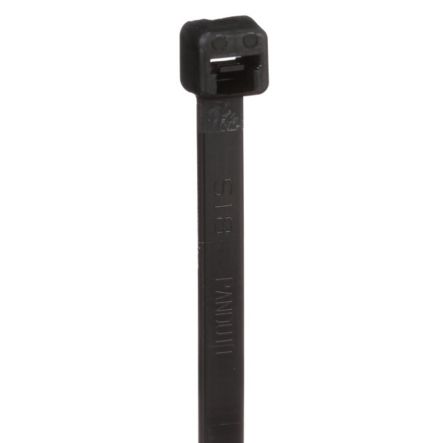

Panduit PLT2S-M100 | Pan-Ty PLT2S-M100 Cable Tie, Black, UV Polypropylene, 7.4"L, 30lb, PK1000
Regular price
$183.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT2S-M100 | Pan-Ty PLT2S-M100 Cable Tie, Black, UV Polypro...
Regular price
$183.08
Unit price
Description
Description
Panduit PLT2S-M100 | Pan-Ty PLT2S-M100 Cable Tie, Black, UV Polypropylene, 7.4"L, 30lb, PK1000
Panduit PLT2S-M100 Locking Cable Ties are designed to satisfy the needs of chemical and weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 7.4" (188mm) length. Made of Weather Resistant Polypropylene, are black in color and come in packages of 1000.
Panduit - PLT2S-M100 - Features
- For chemical resistance where high loop tensile strength is not required especially in the presence of hydrochloric acid, salts and bases
- Greater resistance to damage caused by ultraviolet light - indoor or outdoor use
- Material requires lowering the tool setting (see package label)
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading o speed installation
Specifications
Specifications
Panduit - PLT2S-M100 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT2S-M100 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT2S-M100 |
| Item Description | Pan-Ty PLT2S-M100 Cable Tie, Black, UV Polypropylene, 7.4"L, 30lb, PK1000 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Polypropylene |
| Resistance Properties | Chemical and UV Resistant |
| Overall Length (In.) | 7.4 |
| Overall Length (mm) | 188 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 1.88 |
| Maximum Bundle Diameter (mm) | 48 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 133 |
| Minimum Loop Tensile Strength (lb) | 30 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS Compliant |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT2S-M100 - Package Information
| UPC | 07498354823 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.2164 |
| Standard. Ctn. Quantity | 10000 |
| Standard. Ctn. Volume (cf) | 2.1638 |
Panduit - PLT2S-M100 - Videos
| Video 1 | Click to View |
|---|
