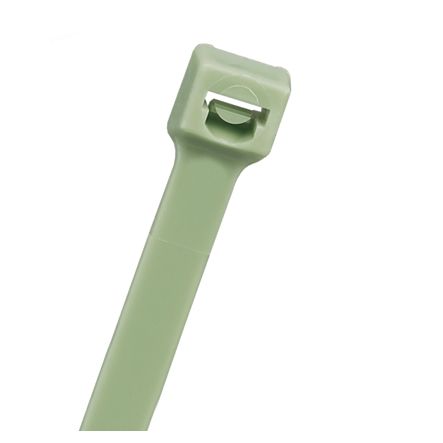

Panduit PLT2S-M109 | Pan-Ty PLT2S-M109 Super-Grip Cable Tie, Green, Polypropylene, 7.4"L, 30lb
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT2S-M109 | Pan-Ty PLT2S-M109 Super-Grip Cable Tie, Green,...
Description
Description
Panduit PLT2S-M109 Locking Cable Ties are designed to fasten wiring and hoses in the chemical process industry and related harsh environments. Ideal for applications that demand a cable tie material that provides superior chemical resistance to salts, bases and acids in various solutions and concentrations. Standard cross section, 7.4" (188mm) length. Made of Polypropylene and are for indoor use only. They are a distinctive green color and come in packages of 1000.
Panduit - PLT2S-M109 - Features
- For chemical resistance where high loop tensile strength is not required especially in the presence of hydrochloric acid, salts and bases
- Material requires lowering the tool setting (see package label)
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- Polypropylene cable ties have a distinctive green color and are used indoors
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to peed installation
Specifications
Specifications
Panduit - PLT2S-M109 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT2S-M109 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT2S-M109 |
| Item Description | Pan-Ty PLT2S-M109 Super-Grip Cable Tie, Green, Polypropylene, 7.4"L, 30lb |
| Product Type | Premium Cable Tie |
| Color | Green |
| Environment | Indoor |
| Material | Polypropylene |
| Resistance Properties | Chemical Resistant |
| Overall Length (In.) | 7.4 |
| Overall Length (mm) | 188 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 1.88 |
| Maximum Bundle Diameter (mm) | 48 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 133 |
| Minimum Loop Tensile Strength (lb) | 30 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS Compliant |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT2S-M109 - Package Information
| UPC | 07498354821 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.2164 |
| Standard. Ctn. Quantity | 10000 |
| Standard. Ctn. Volume (cf) | 2.1638 |
Panduit - PLT2S-M109 - Videos
| Video 1 | Click to View |
|---|
