Panduit PLT2S-M71 | Pan-Ty PLT2S-M71 Cable Tie, Brown, PEEK, Radiation, High Heat, 7.4"L, 150lb
Regular price
$1,764.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT2S-M71 | Pan-Ty PLT2S-M71 Cable Tie, Brown, PEEK, Radiat...
Regular price
$1,764.57
Unit price
Description
Description
Panduit PLT2S-M71 | Pan-Ty PLT2S-M71 Cable Tie, Brown, PEEK, Radiation, High Heat, 7.4"L, 150lb

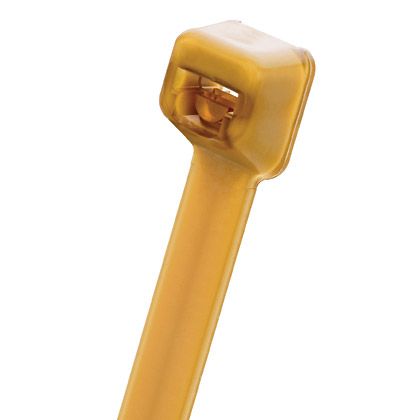

Panduit PLT2S-M71 Locking Cable Ties are designed for harsh environments where a cable tie material is required to hold up to chemical, high radiation, and/or high operating temperature environments. Non-conductive material that is excellent for high temperature applications. Standard cross section, 7.4” (188 mm) length. Made of PEEK, are translucent brown in color and come in packages of 1000.
Specifications
Specifications
Panduit - PLT2S-M71 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT2S-M71 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT2S-M71 |
| Item Description | Pan-Ty PLT2S-M71 Cable Tie, Brown, PEEK, Radiation, High Heat, 7.4"L, 150lb |
| Product Type | Premium Cable Tie |
| Color | Translucent Brown |
| Environment | Indoor |
| Material | PEEK |
| Resistance Properties | Chemical-Resistant, High Heat-Resistant, Radiation-Resistant |
| Overall Length (In.) | 7.4 |
| Overall Length (mm) | 188 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.055 |
| Body Thickness (mm) | 1.4 |
| Maximum Bundle Diameter (In.) | 1.88 |
| Maximum Bundle Diameter (mm) | 48 |
| Minimum Bundle Diameter (In.) | 0.13 |
| Minimum Bundle Diameter (mm) | 3.3 |
| Minimum Loop Tensile Strength (N) | 668 |
| Minimum Loop Tensile Strength (lb) | 150 |
| Maximum Operating Temperature (°C) | 260 |
| Maximum Operating Temperature (°F) | 500 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS Compliant |
| Military Cross Reference Number | MS3367-1-16 |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Brand Name - PLT2S-M71 - Package Information
| UPC | 07498390462 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1957 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 1.9571 |
