Panduit PLT3H-L0 | Pan-Ty PLT3H-L0 Cable Tie, Black, UV PA6.6, 11.4"L, 120lb, PK50
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT3H-L0 | Pan-Ty PLT3H-L0 Cable Tie, Black, UV PA6.6, 11.4...
Description
Description

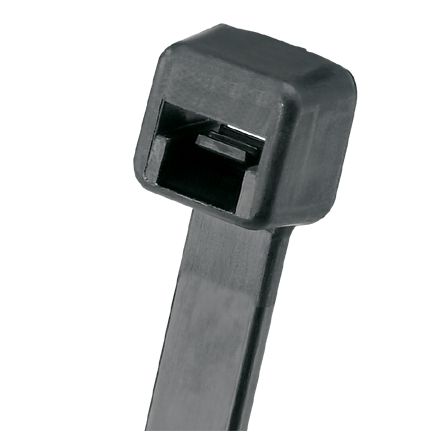

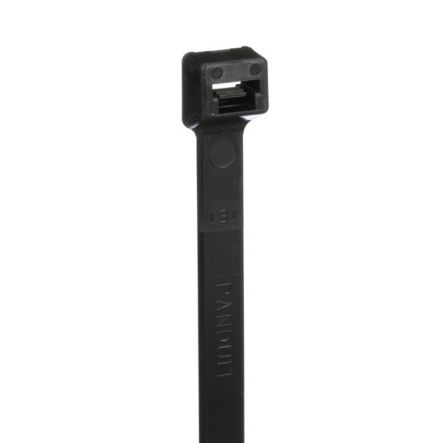

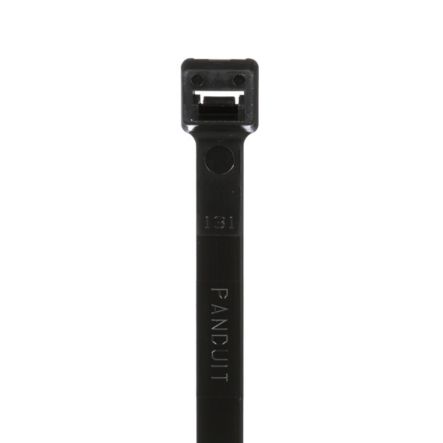

Panduit PLT3H-L0 Locking Cable Ties are designed to satisfy the needs of weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Light-Heavy cross section, 11.4" (290mm) length. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 50.
Pan-Ty locking tie, light-heavy cross section, 11.4 (290mm) length, weather resistant nylon 6.6, black, standard package
Panduit - PLT3H-L0 - Features
- One-Piece Construction for Consistent Performance and Reliability
- Lowest Threading Force of any One-Piece Cable Tie in the Industry
- Curved Tip is Easy to Pick up from Flat Surfaces and Allows Faster Initial Threading to Speed Installation
- RoHS Compliat
Specifications
Specifications
Panduit - PLT3H-L0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT3H-L0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT3H-L0 |
| Item Description | Pan-Ty PLT3H-L0 Cable Tie, Black, UV PA6.6, 11.4"L, 120lb, PK50 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 11.4 |
| Overall Length (mm) | 290 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.6 |
| Body Thickness (In.) | 0.075 |
| Body Thickness (mm) | 1.9 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76 |
| Minimum Bundle Diameter (In.) | 0.188 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, RoHS Compliant |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Part Features | One piece construction provides consistent, reliable performance. Low thread force. |
Panduit - PLT3H-L0 - Package Information
| UPC | 07498354077 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0534 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.5339 |
