Panduit PLT3I-M | Pan-Ty Cable Tie, PA6.6, 11.4"L, 40lb, PK1000
Description
Description
Organize your cables efficiently with our standard locking cable tie. This cable tie has a curved tip for easy threading and a nylon material that resists weather.

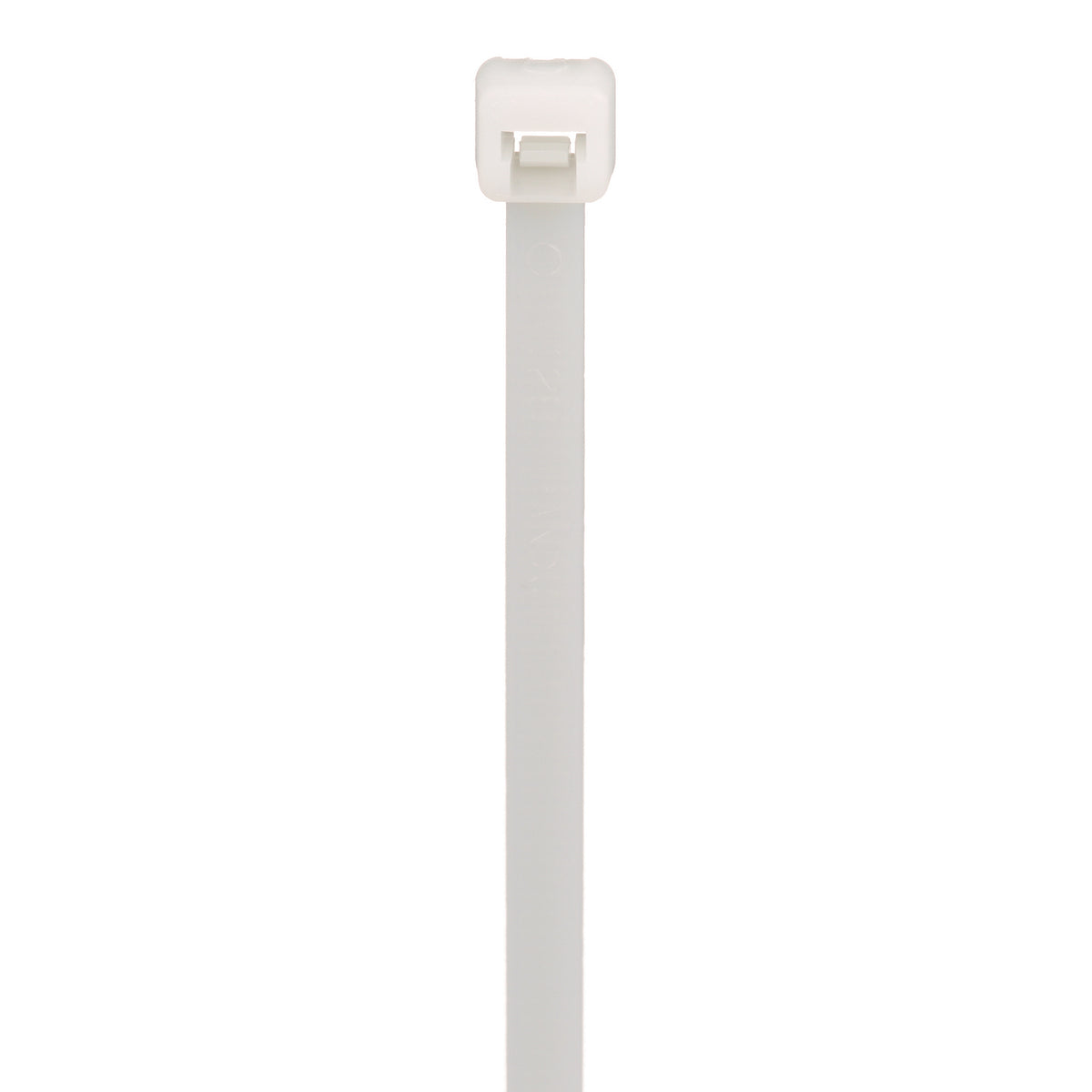

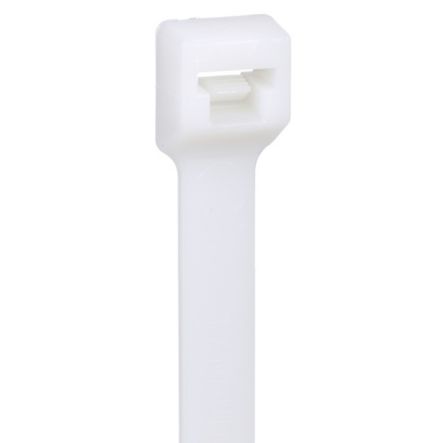

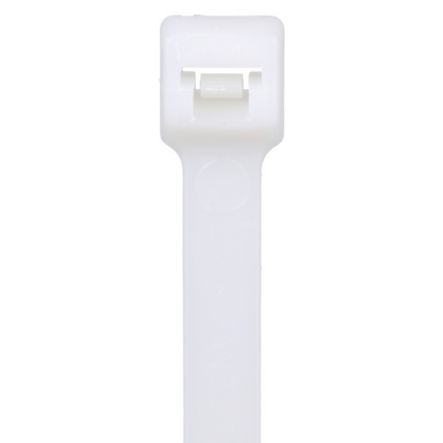

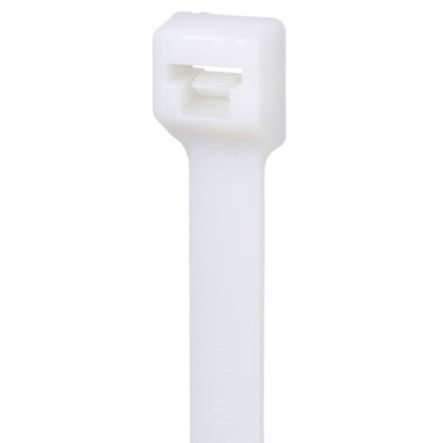

Panduit PLT3I-M Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Int ermediate cross section, 11.4 (290mm) length. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.
Panduit Pan-Ty Cable Tie, Intermediate Plenum Rated, Series: PLT, 11.4 in Length, 0.15 in Width, 0.05 in Thickness, 3 in Bundle Dia, Locking, 40 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Panduit - PLT3I-M - Features
- 1-piece locking wedge for consistent performance and reliability
- Low thread force and high loop tensile strength
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
- For indoor use
- Versatile cable ties can be used in countless applications
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- A variety of materials and colors available for specific applications
- Miniature to Standard cross sections feature a curved tip for easy threading and handling
Specifications
Specifications
Panduit - PLT3I-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT3I-M |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Material Description | Nylon 6.6 () |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 11.4 |
| Overall Length (mm) | 290 |
| Body Width (In.) | 0.145 |
| Body Width (mm) | 3.7 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498354051 |
