Brand: Panduit
|
SKU:
677454
Panduit PLT3I-M10 | Pan-Ty PLT3I-M10 Cable Tie, White, PA6.6, 11.4"L, 40lb, PK1000
Regular price
$252.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT3I-M10 | Pan-Ty PLT3I-M10 Cable Tie, White, PA6.6, 11.4&...
Regular price
$252.98
Unit price
Description
Description
Panduit PLT3I-M10 | Pan-Ty PLT3I-M10 Cable Tie, White, PA6.6, 11.4"L, 40lb, PK1000

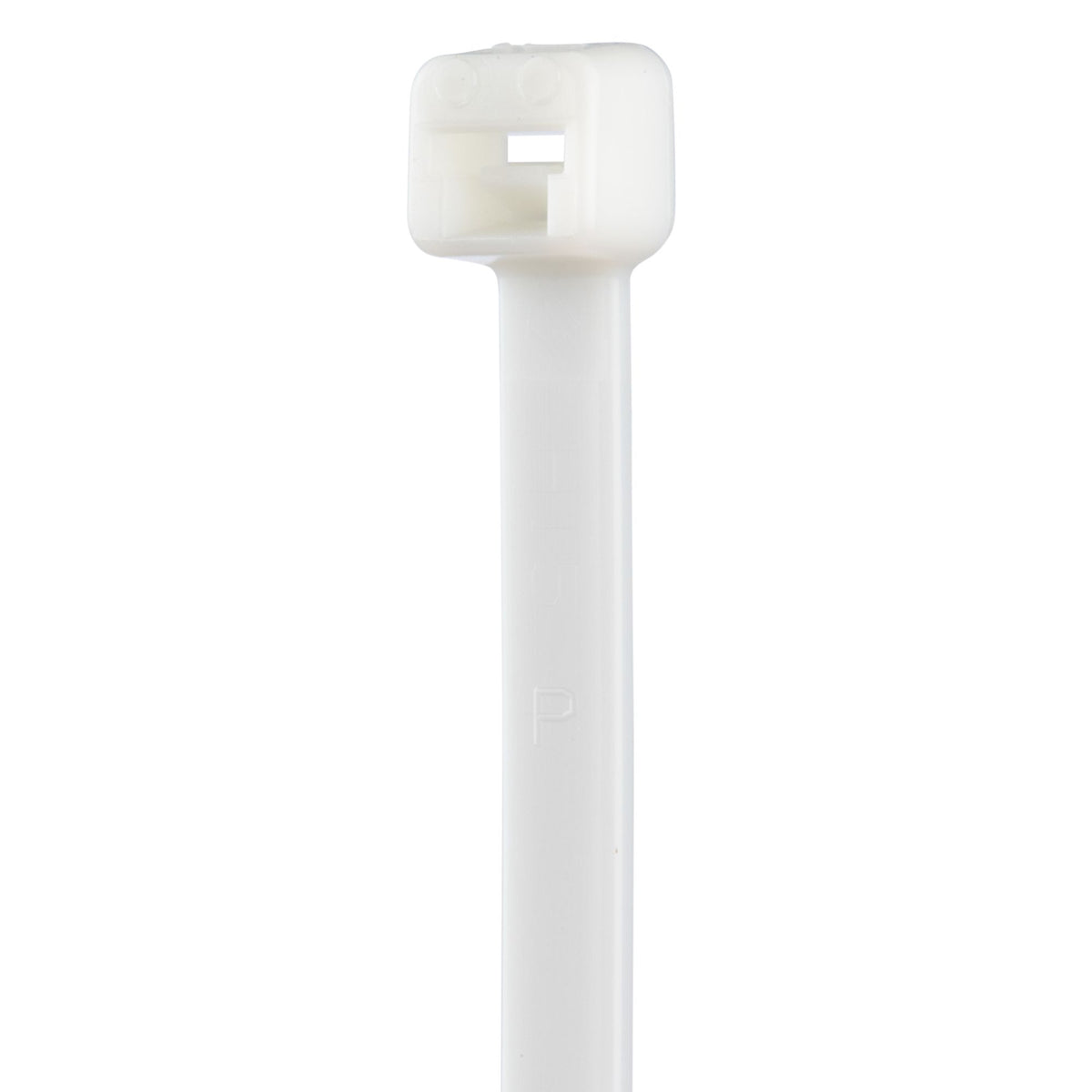

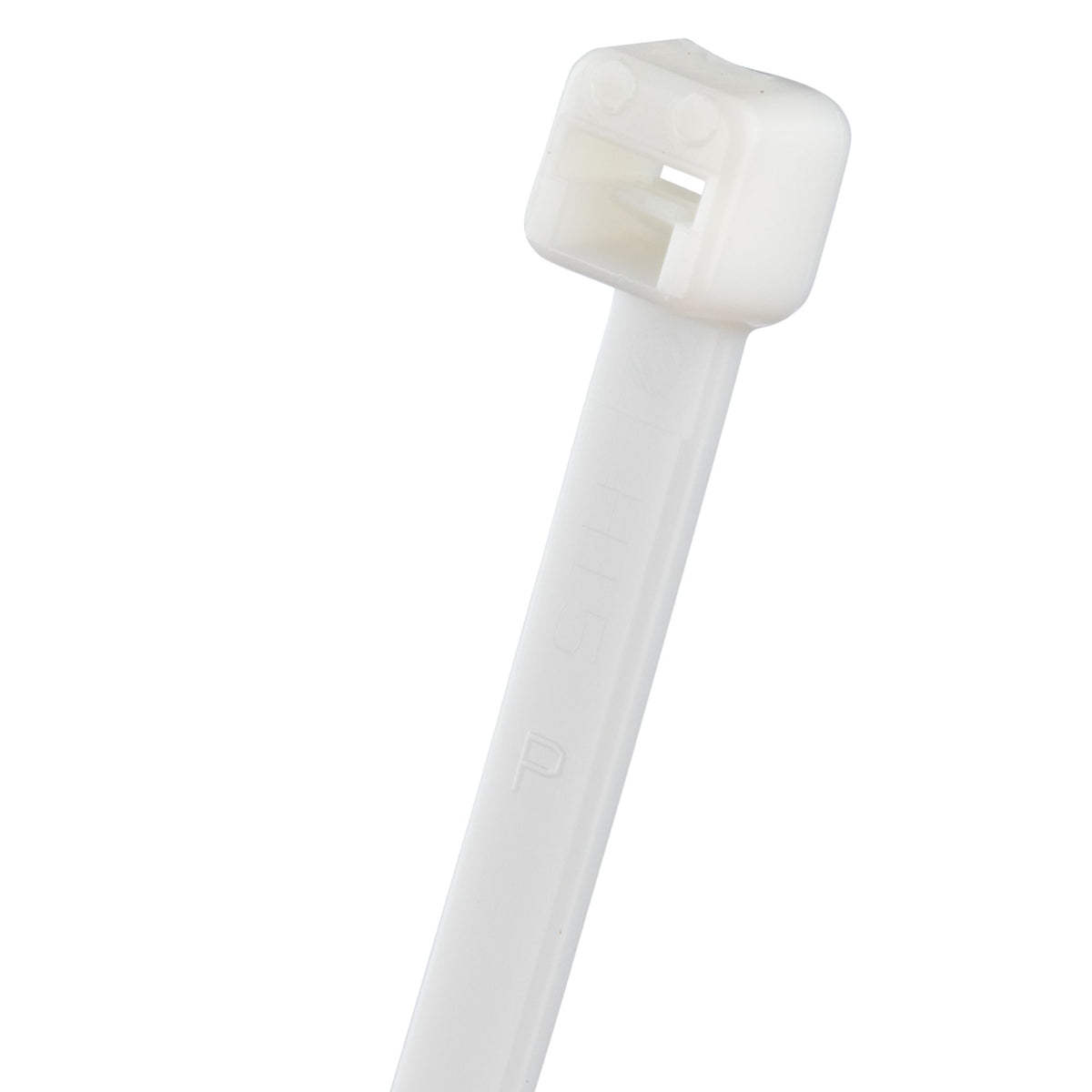

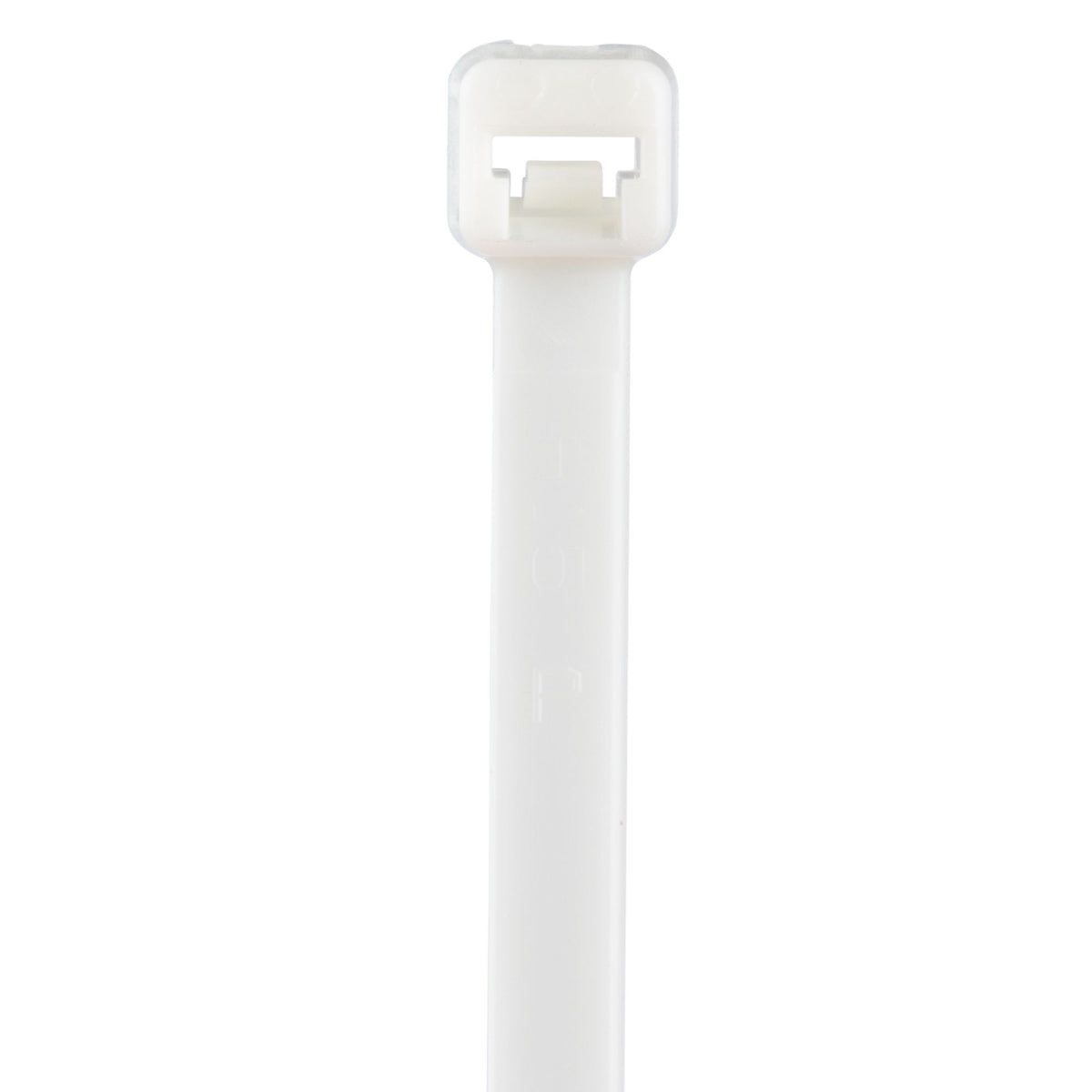

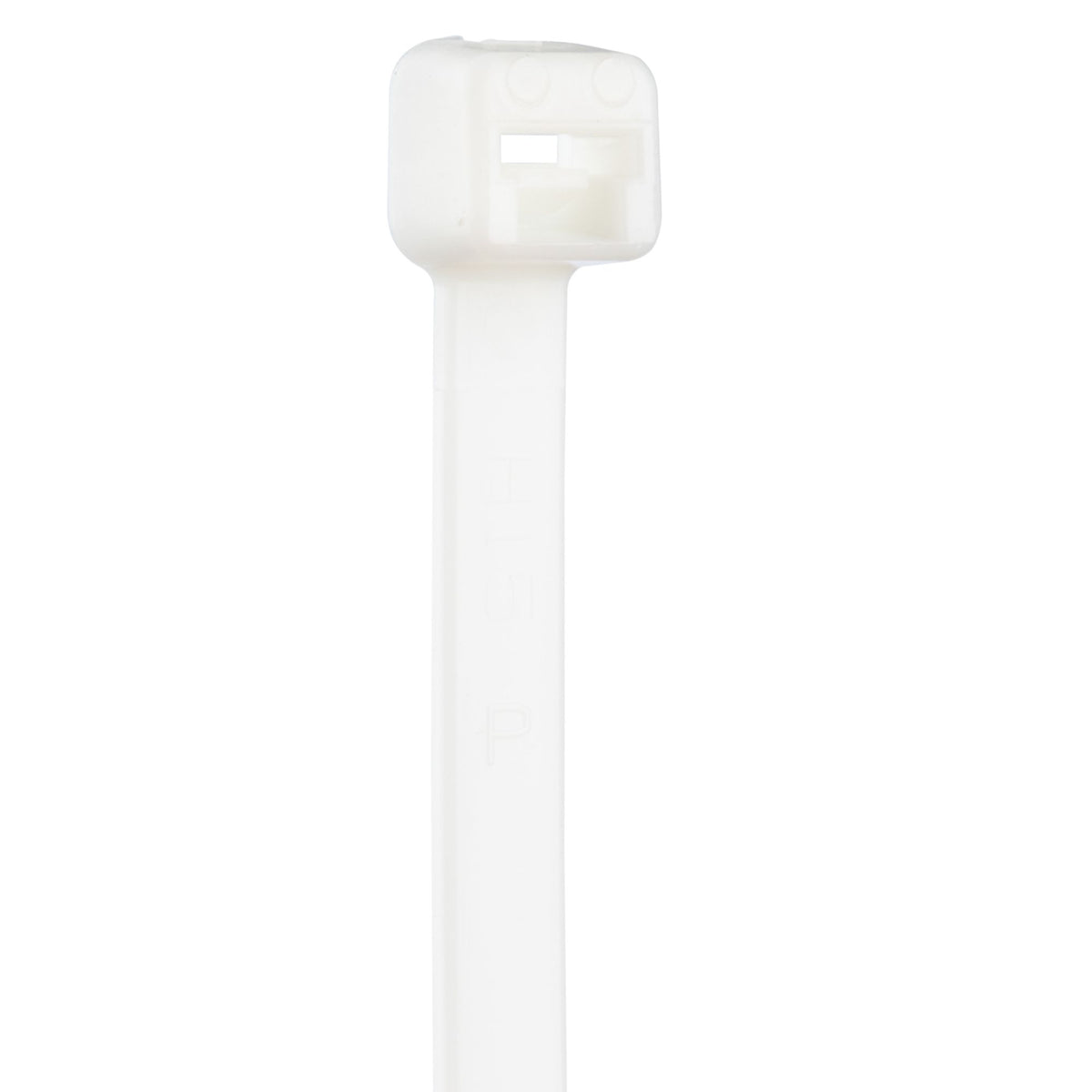

Pan-Ty locking tie, intermediate cross section, 11.4 (290mm) length, nylon 6.6, white.
Panduit PLT3I-M10 11.4";LG INTERMEDIATE CABLE TIENYLON 6/6 WHITE .145 WD X 3.0040LB TNSLE 1000/PK
Specifications
Specifications
Panduit - PLT3I-M10 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT3I-M10 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT3I-M10 |
| Item Description | Pan-Ty PLT3I-M10 Cable Tie, White, PA6.6, 11.4"L, 40lb, PK1000 |
| Product Type | Premium Cable Tie |
| Color | White |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Overall Length (In.) | 11.4 |
| Overall Length (mm) | 290 |
| Body Width (In.) | 0.145 |
| Body Width (mm) | 3.7 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76.2 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS |
| Application | General |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT3I-M10 - Package Information
| UPC | 07498356444 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.2572 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 2.5715 |
Panduit - PLT3I-M10 - Videos
| Video 1 | Click to View |
|---|
