Brand: Panduit
|
SKU:
300038

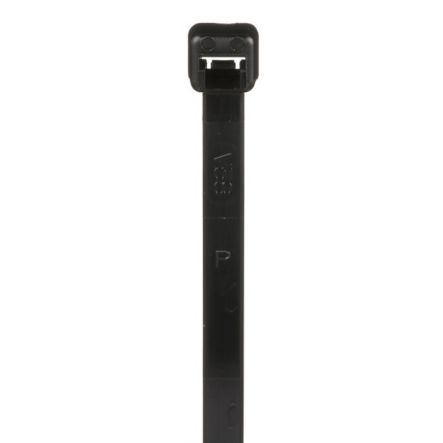

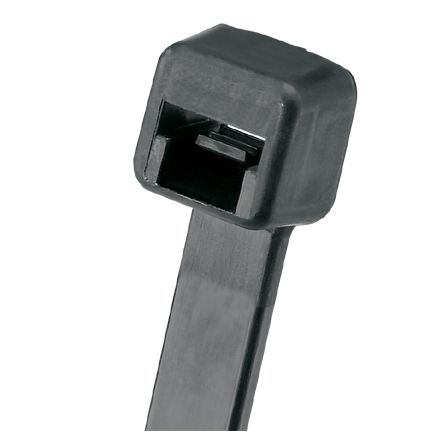

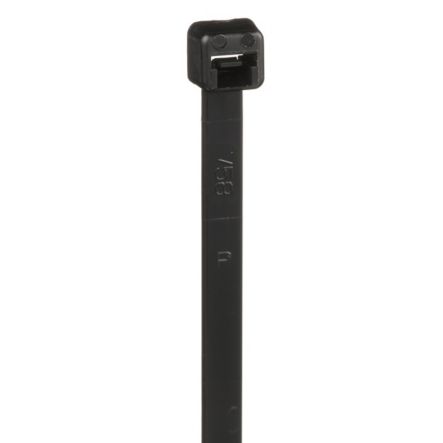

Panduit PLT3S-C20 Cable Tie, 11.5";L (292mm) Standard, Nylon, Black, Pack of 100
Regular price
$63.96
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT3S-C20 Cable Tie, 11.5";L (292mm) Standard, Nylon, ...
Regular price
$63.96
Unit price
Description
Description
Panduit PLT3S-C20 | PLT3S-C20 Premium Cable Tie
Pan-Ty locking tie, standard cross section, 11.5 (292mm) length, nylon 6.6, black, standard package.
Panduit - PLT3S-C20 - Features
- For indoor use
- Versatile cable ties can be used in countless applications
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- Curved tip is easy to pick up from flat suaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PLT3S-C20 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT3S-C20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT3S-C20 |
| Item Description | PLT3S-C20 Premium Cable Tie |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Overall Length (In.) | 11.5 |
| Overall Length (mm) | 292 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76.2 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH |
| Application | General |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT3S-C20 - Package Information
| UPC | 07498354800 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0556 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 0.5563 |
Panduit - PLT3S-C20 - Videos
| Video 1 | Click to View |
|---|
