Brand: Panduit
|
SKU:
PLT3S-M0-IE

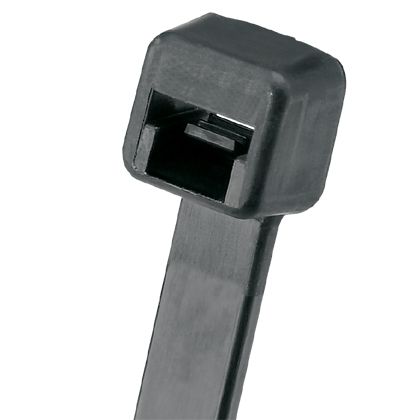

Panduit PLT3S-M0 | Pan-Ty PLT3S-M0 Cable Tie, Black, UV PA6.6, 11.5"L, 50lb, PK1000
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT3S-M0 | Pan-Ty PLT3S-M0 Cable Tie, Black, UV PA6.6, 11.5...
Regular price
$1.47
Unit price
Description
Description
Panduit PLT3S-M0 | Pan-Ty PLT3S-M0 Cable Tie, Black, UV PA6.6, 11.5"L, 50lb, PK1000
PLT3S-M0 Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 11.5” (292mm) length. For Indoor/Outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 1000.
Specifications
Specifications
Panduit - PLT3S-M0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT3S-M0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT3S-M0 |
| Item Description | Pan-Ty PLT3S-M0 Cable Tie, Black, UV PA6.6, 11.5"L, 50lb, PK1000 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 11.5 |
| Overall Length (mm) | 292 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Brand Name - PLT3S-M0 - Package Information
| UPC | 07498354062 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.3345 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 3.3446 |
Brand Name - PLT3S-M0 - Videos
| Video URL 1 | Click to View |
|---|
