Panduit PLT3S-VMR | Reel-Fed Cable Tie
Regular price
$848.82
Unit price
Brand: Panduit
|
SKU:
444198
Regular price
$848.82
Unit price
Description
Description

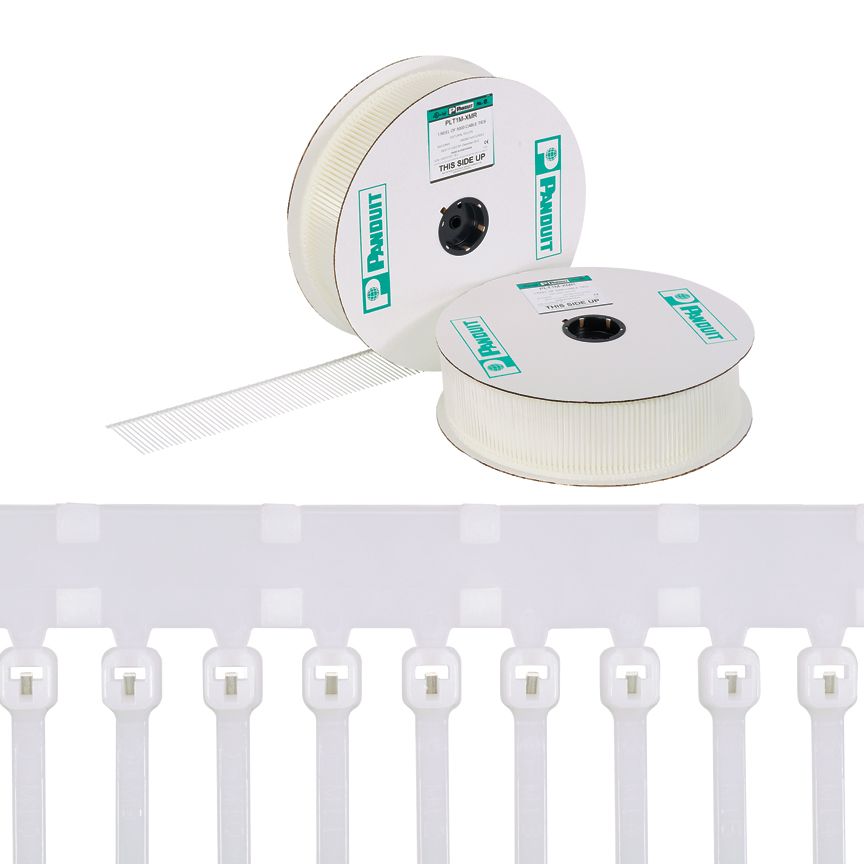

Panduit PLT3S-VMR | Reel-Fed Cable Tie
Achieve improved productivity with our high-speed reel-fed cable tie, providing a continuous supply for rapid cable management.
Panduit Cable Tie, Automated Cross Section Plenum Rated Reel-Fed Standard, Series: PLT, 11.3 in Length, 0.19 in Width, 0.05 in Thickness, 2-3/4 in Diameter Bundle, Lock Mechanism: Locking, 50 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Natural
Panduit - PLT3S-VMR - Features
- Continuously molded cable ties (2500 ties/reel) provide continuous feeding for high productivity and reduced downtime due to fewer reel changes
- All nylon, 1-piece locking ties with 50 lb minimum loop tensile strength in standard cross section for larger bundles up to 1.94 in Dia
Specifications
Specifications
Panduit - PLT3S-VMR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT3S-VMR |
| Product Type | Reel-Fed Cable Tie |
| Color | Natural |
| Environment | Indoor |
| For Use With | PAT3S System |
| Material | Nylon 6.6 |
| Overall Length (In.) | 11.3 |
| Overall Length (mm) | 287 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.047 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 2.75 |
| Maximum Bundle Diameter (mm) | 69.8 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498312315 |
Panduit - PLT3S-VMR - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - PLT3S-VMR - Videos
| Panduit PLT3S-VMR Video 1 | Click to View |
|---|---|
| Panduit PLT3S-VMR Video 2 | Click to View |
