Brand: Panduit | SKU: 300039

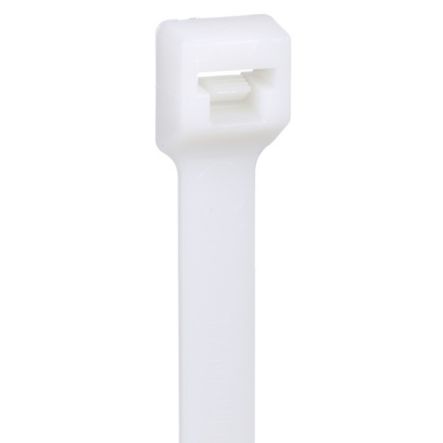

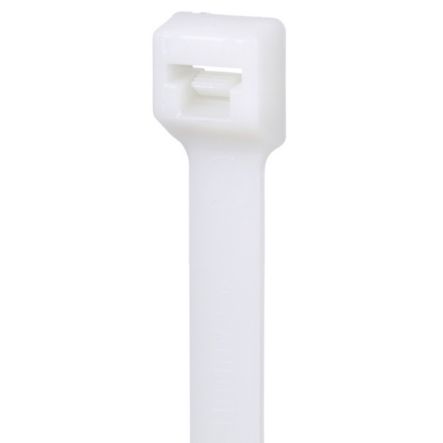

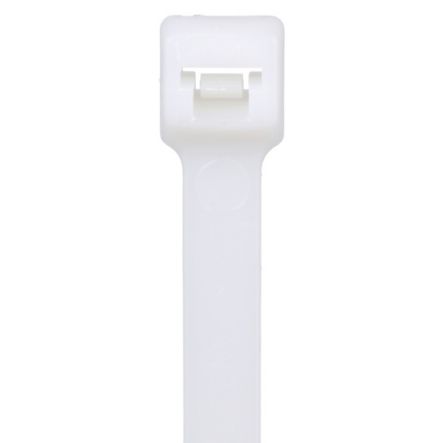

Panduit PLT4.5S-C | Plt4.5S-C Premium Cable Tie

Name: Panduit PLT4.5S-C | Plt4.5S-C Premium Cable Tie
Brand: Anixter
SKU: 300039
Price: 69.19 USD
Availability: InStock

$69.19

Description

Pan-Ty locking tie, standard cross section, 15.5 (394mm) length, nylon 6.6, natural, standard package.

For indoor use
Versatile cable ties can be used in countless applications
One-piece construction for consistent performance and reliability
Lowest threading force of any one-piece cable tie in the industry
A variety of materials and colors available for specific applications
Miniature to Standard cross sections feature a curved tip for easy threading and handling

Brand Name	Panduit
Manufacturer Part Number	PLT4.5S-C
Item Description	Plt4.5S-C Premium Cable Tie
Product Type	Premium Cable Tie
Color	Natural
Environment	Plenum
Material	Nylon 6.6
Overall Length (In.)	15.5
Overall Length (mm)	394
Body Width (In.)	0.19
Body Width (mm)	4.8
Body Thickness (In.)	0.052
Body Thickness (mm)	1.3
Maximum Bundle Diameter (In.)	4.5
Maximum Bundle Diameter (mm)	114.3
Minimum Bundle Diameter (In.)	0.06
Minimum Bundle Diameter (mm)	1.5
Minimum Loop Tensile Strength (N)	222
Minimum Loop Tensile Strength (lb)	50
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Standards Met	CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant
For Use With	GTS, GTSL, GS2B, GTH, GS4H, PTS, PPTS, PTH, STS2, STH2
Application	General
Part Features	One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.

Video 1	Click to View
