Brand: Panduit
|
SKU:
104690

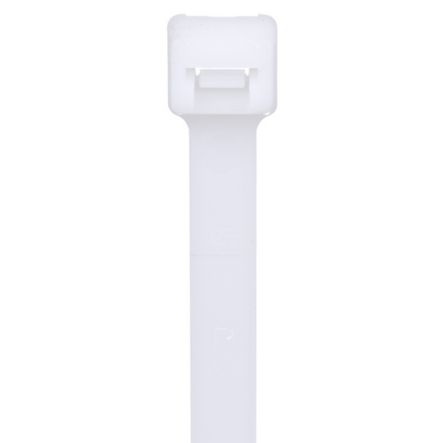

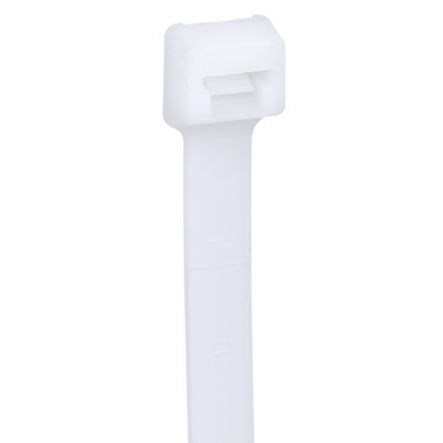

Panduit PLT4H-L Cable Tie, 14.5";L (368mm), Light-Heavy, Nylon, Natural, Pack of 50
Regular price
$40.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT4H-L Cable Tie, 14.5";L (368mm), Light-Heavy, Nylon...
Regular price
$40.47
Unit price
Description
Description
Panduit PLT4H-L | Pan-Ty PLT4H-L Cable Tie, PA6.6, 14.5"L, 120lb, PK50
Panduit PLT4H-L Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Light-Heavy cross section, 14.5" (368mm) length. Made of Nylon 6.6, are natural in color and come in packages of 50.
Panduit - PLT4H-L - Features
- For indoor use
- Versatile cable ties can be used in countless applications
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- A variety of materials and colors available for specific applications
- Miniature to Standard cross sections feature a curved tip for easy threading and handling
Specifications
Specifications
Panduit - PLT4H-L - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT4H-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT4H-L |
| Item Description | Pan-Ty PLT4H-L Cable Tie, PA6.6, 14.5"L, 120lb, PK50 |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 14.5 |
| Overall Length (mm) | 368 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.6 |
| Body Thickness (In.) | 0.075 |
| Body Thickness (mm) | 1.9 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.188 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant |
| Military Cross Reference Number | MS3367-3-9 |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Part Features | One piece construction provides consistent, reliable performance. Low thread force. |
Panduit - PLT4H-L - Package Information
| UPC | 07498354091 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0534 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.5339 |
Panduit - PLT4H-L - Videos
| Video 1 | Click to View |
|---|
