Brand: Panduit
|
SKU:
PAN-PLT4S-C30
Panduit PLT4S-C30 | Pan-Ty PLT4S-C30 Cable Tie, Black, High Heat PA6.6, 14.5"L, 50lb, PK100
Regular price
$67.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT4S-C30 | Pan-Ty PLT4S-C30 Cable Tie, Black, High Heat PA...
Regular price
$67.88
Unit price
Brand: Panduit
|
SKU:
PAN-PLT4S-C30
Regular price
$67.88
Unit price
Shipping calculated at checkout.
Description
Description

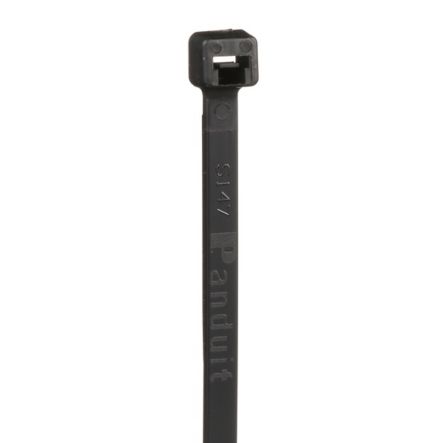

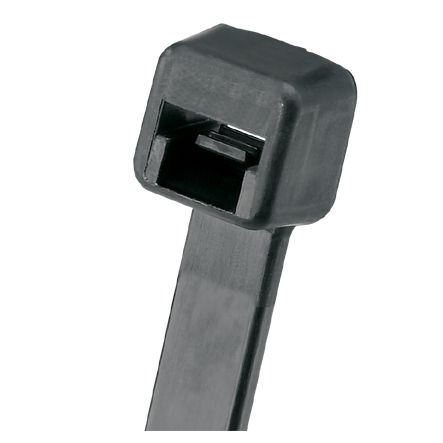

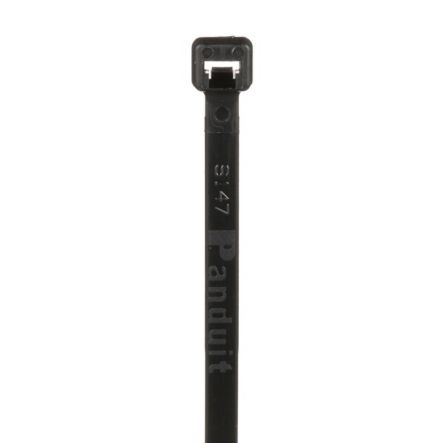

Panduit PLT4S-C30 | Pan-Ty PLT4S-C30 Cable Tie, Black, High Heat PA6.6, 14.5"L, 50lb, PK100
Panduit PLT4S-C30 Locking Cable Ties are designed to satisfy the needs of high temperature applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 14.5" (368mm) length. Made of Heat Stabilized Nylon 6.6, are black in color and come in packages of 100.
Panduit - PLT4S-C30 - Features
- Cable Tie, 14.5";, Standard cross section
- For high temperature applications up to 239F (115C) - indoor use
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- Curved tip design on Miniature to Standard cross setions is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PLT4S-C30 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT4S-C30 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT4S-C30 |
| Item Description | Pan-Ty PLT4S-C30 Cable Tie, Black, High Heat PA6.6, 14.5"L, 50lb, PK100 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor |
| Material | Heat Stabilized Nylon 6.6 |
| Resistance Properties | Heat Resistant |
| Overall Length (In.) | 14.5 |
| Overall Length (mm) | 368 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant |
| Military Cross Reference Number | MS3367-2-11 |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT4S-C30 - Package Information
| UPC | 07498354784 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0556 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.5563 |
Panduit - PLT4S-C30 - Videos
| Video 1 | Click to View |
|---|
