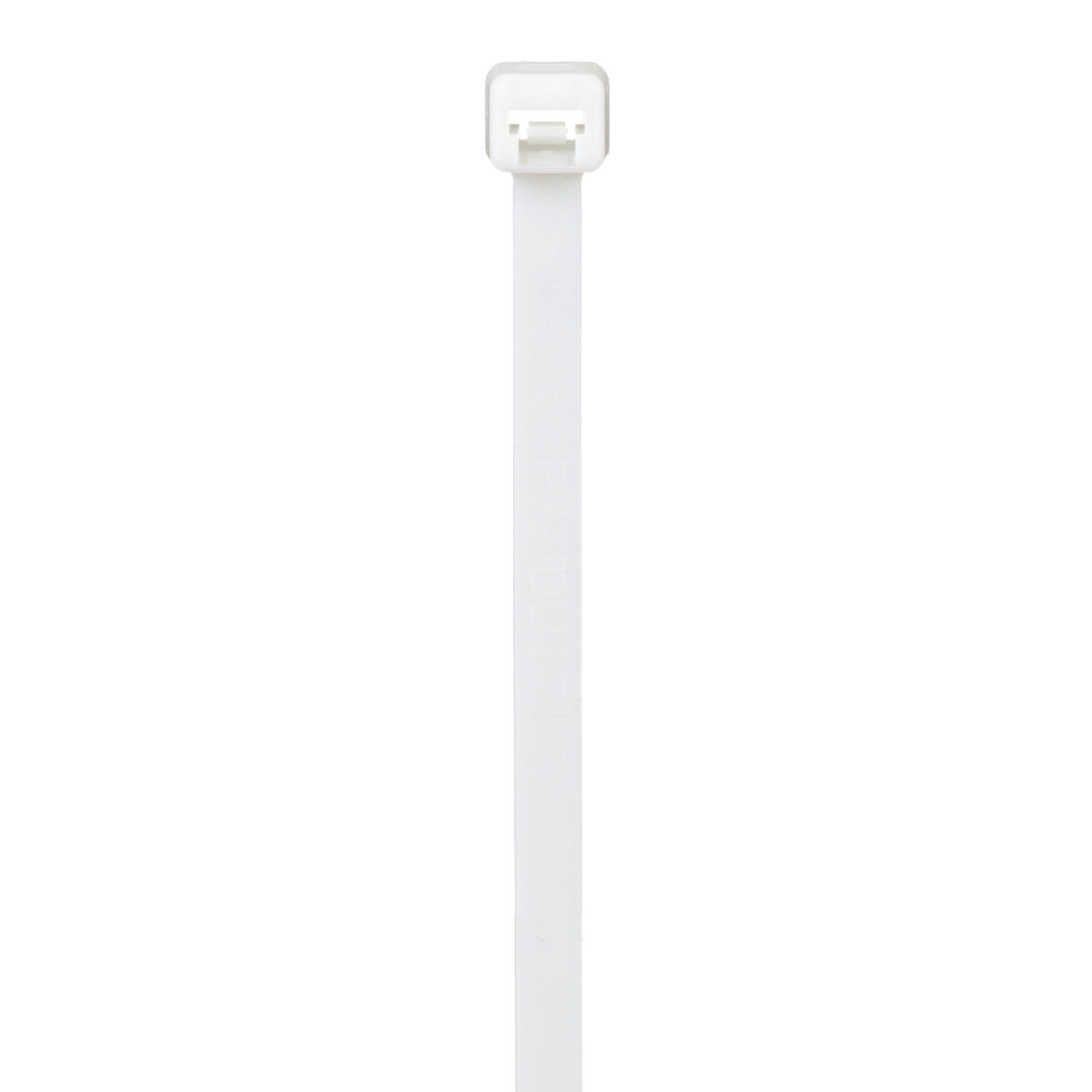

Panduit PLT4S-M10 | Premium Cable Tie
Regular price
$378.90
Unit price
Brand: Panduit
|
SKU:
670892
Regular price
$378.90
Unit price
Description
Description
Panduit PLT4S-M10 | Premium Cable Tie
Organize your cables efficiently with our standard locking cable tie. This cable tie has a curved tip for easy threading and a nylon material that resists weather.
Panduit Pan-Ty Cable Tie, Curved Tip Plenum Rated Standard, Series: PLT, 14-1/2 in Length, 0.19 in Width, 0.05 in Thickness, 4 in Bundle Dia, Locking, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, White
Panduit - PLT4S-M10 - Features
- 1-piece construction for consistent performance and reliability
- Lowest threading force of any 1-piece cable tie in the industry
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PLT4S-M10 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT4S-M10 |
| Material Description | Nylon 6.6 () |
| Product Type | Premium Cable Tie |
| Color | White |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Overall Length (In.) | 14.5 |
| Overall Length (mm) | 368 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498356615 |
Panduit - PLT4S-M10 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - PLT4S-M10 - Videos
| Panduit PLT4S-M10 Video 1 | Click to View |
|---|
