Panduit PLT5EH-C | Pan-Ty® Locking Cable Tie
Regular price
$162.75
Unit price
Brand: Panduit
|
SKU:
10083433
Regular price
$162.75
Unit price
Description
Description

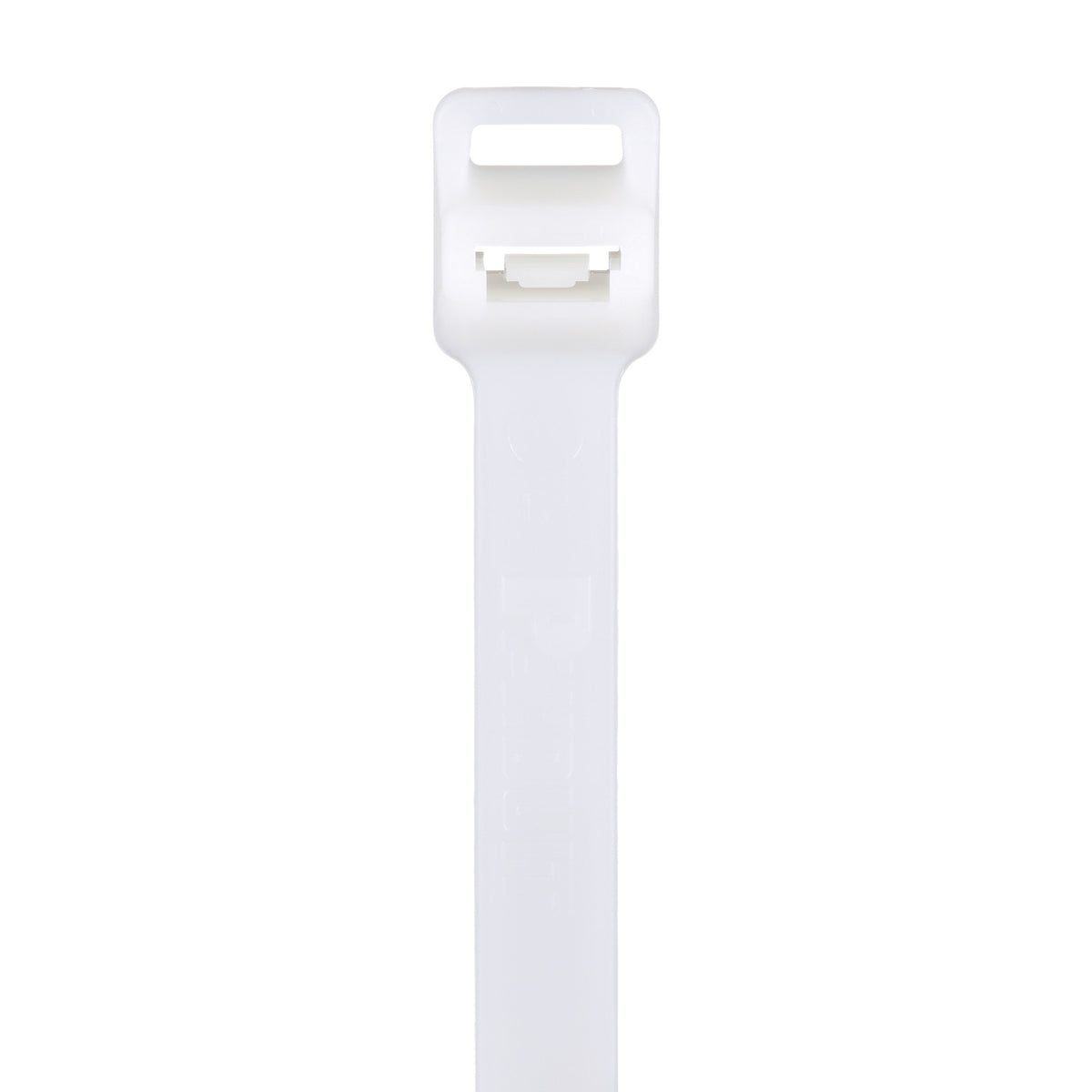

Panduit PLT5EH-C | Pan-Ty® Locking Cable Tie
Panduit Pan-Ty Lashing Cable Tie, Extra Heavy, Series: PLT, 20.1 in Length, 1/2 in Width, 0.08 in Thickness, 5 in Bundle Dia, Locking, 250 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Organize your cables efficiently with our standard locking cable tie. This cable tie has a curved tip for easy threading and a nylon material that resists weather.
Panduit - PLT5EH-C - Features
- 1-piece construction for consistent performance and reliability
- Low thread force
- Greater resistance to damage caused by ultraviolet light
- Can be used with MCEH mounting clip
Specifications
Specifications
Panduit - PLT5EH-C - Specifications
| Material Description | Nylon 6.6 () |
|---|---|
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 20.1 |
| Overall Length (mm) | 511 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Body Thickness (In.) | 0.075 |
| Body Thickness (mm) | 1.9 |
| Maximum Bundle Diameter (In.) | 5 |
| Maximum Bundle Diameter (mm) | 127 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 1112 |
| Minimum Loop Tensile Strength (lb) | 250 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498354117 |
Panduit - PLT5EH-C - Package Information
| UPC | 07498354117 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.2211 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 2.2112 |
Panduit - PLT5EH-C - Videos
| Panduit PLT5EH-C Videos | Click to View |
|---|
