Brand: Panduit
|
SKU:
457938
Panduit PLT5EH-C0 | Pan-Ty PLT5EH-C0 Cable Tie, Black, UV PA6.6, 20.1"L, 250lb, PK100
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT5EH-C0 | Pan-Ty PLT5EH-C0 Cable Tie, Black, UV PA6.6, 20...
Regular price
$3.00
Unit price
Description
Description

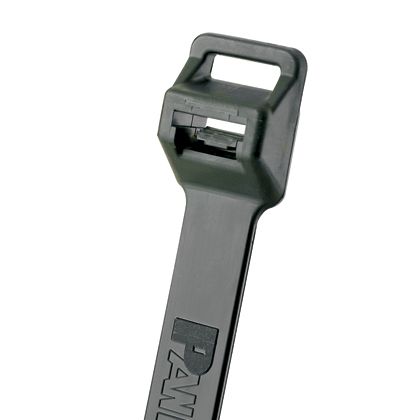

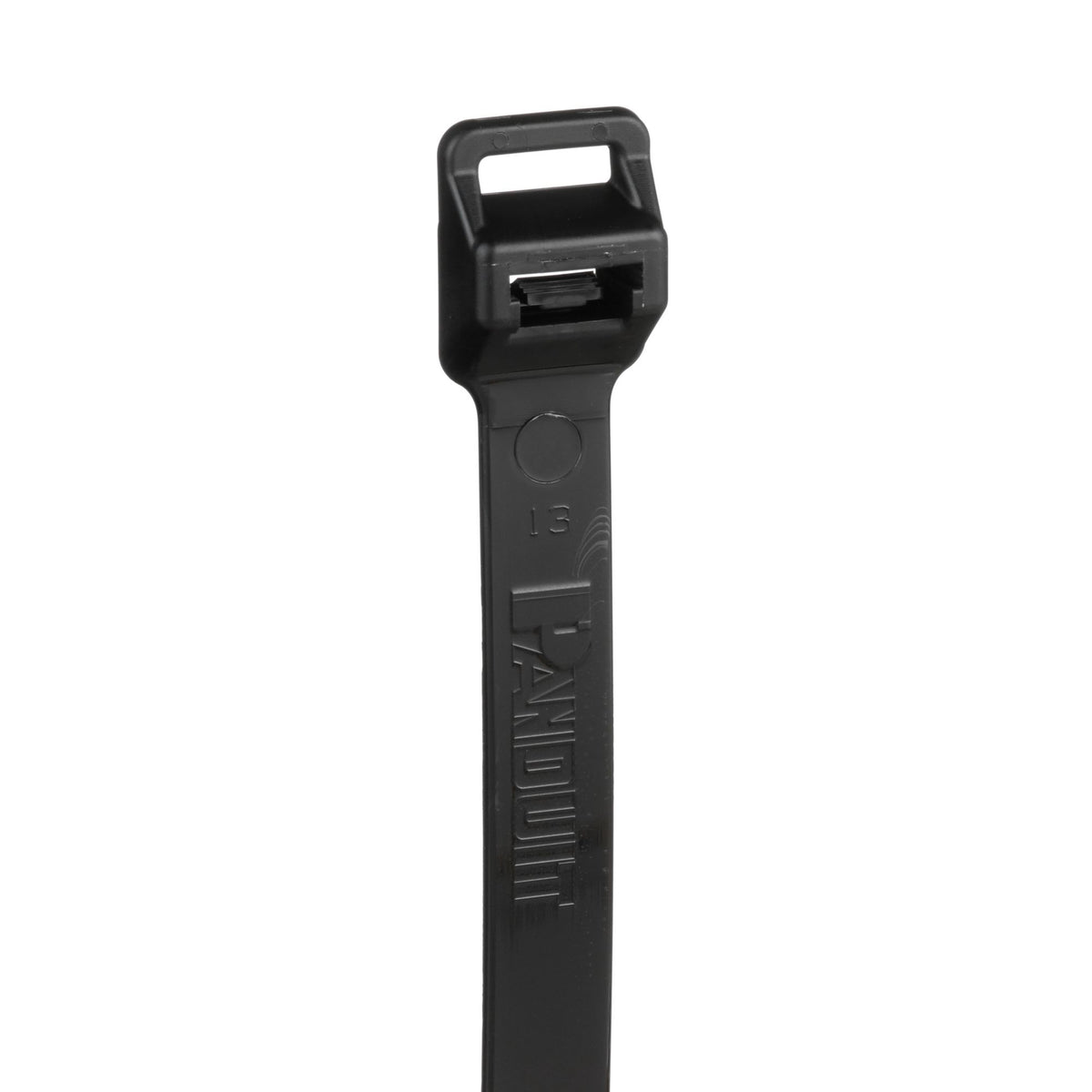

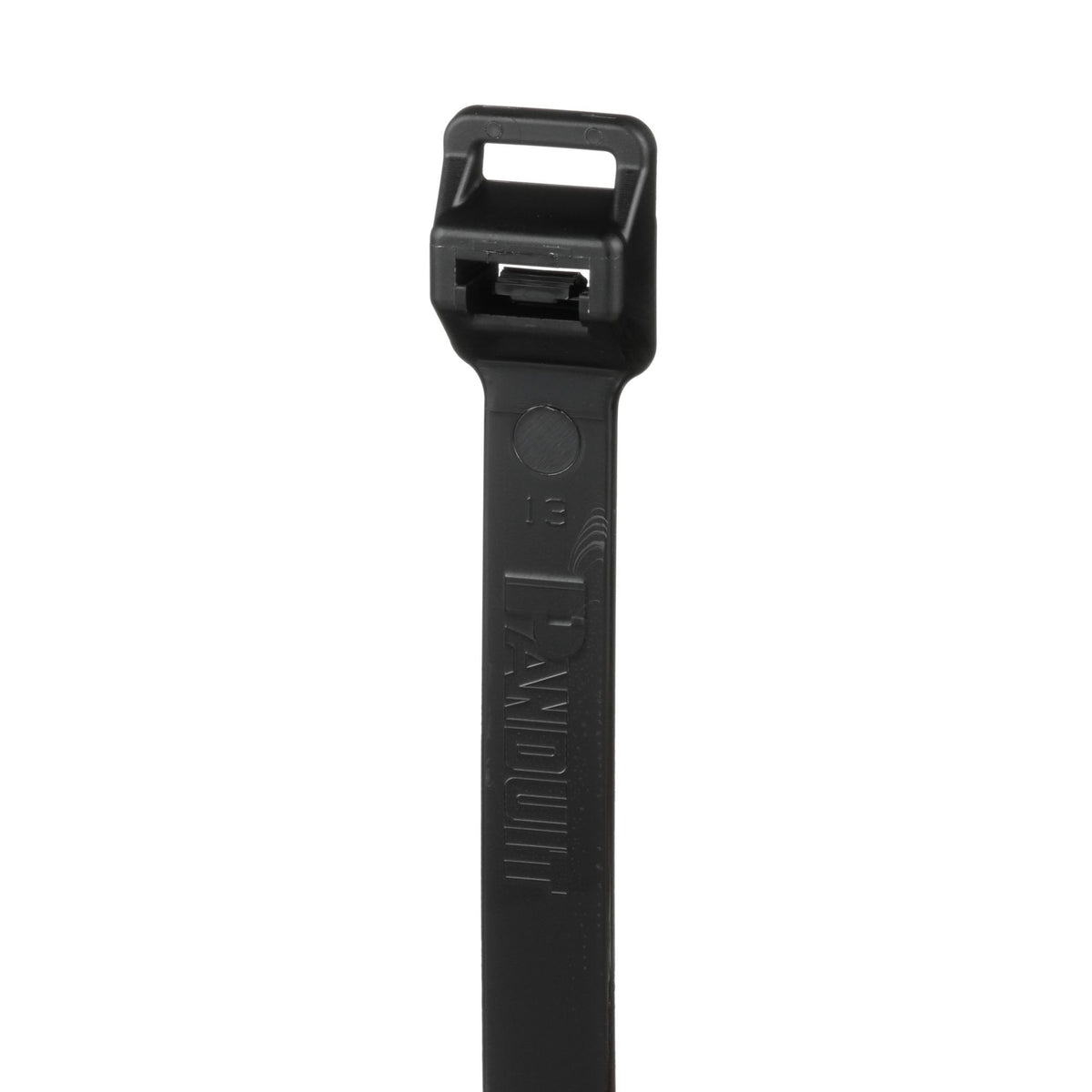

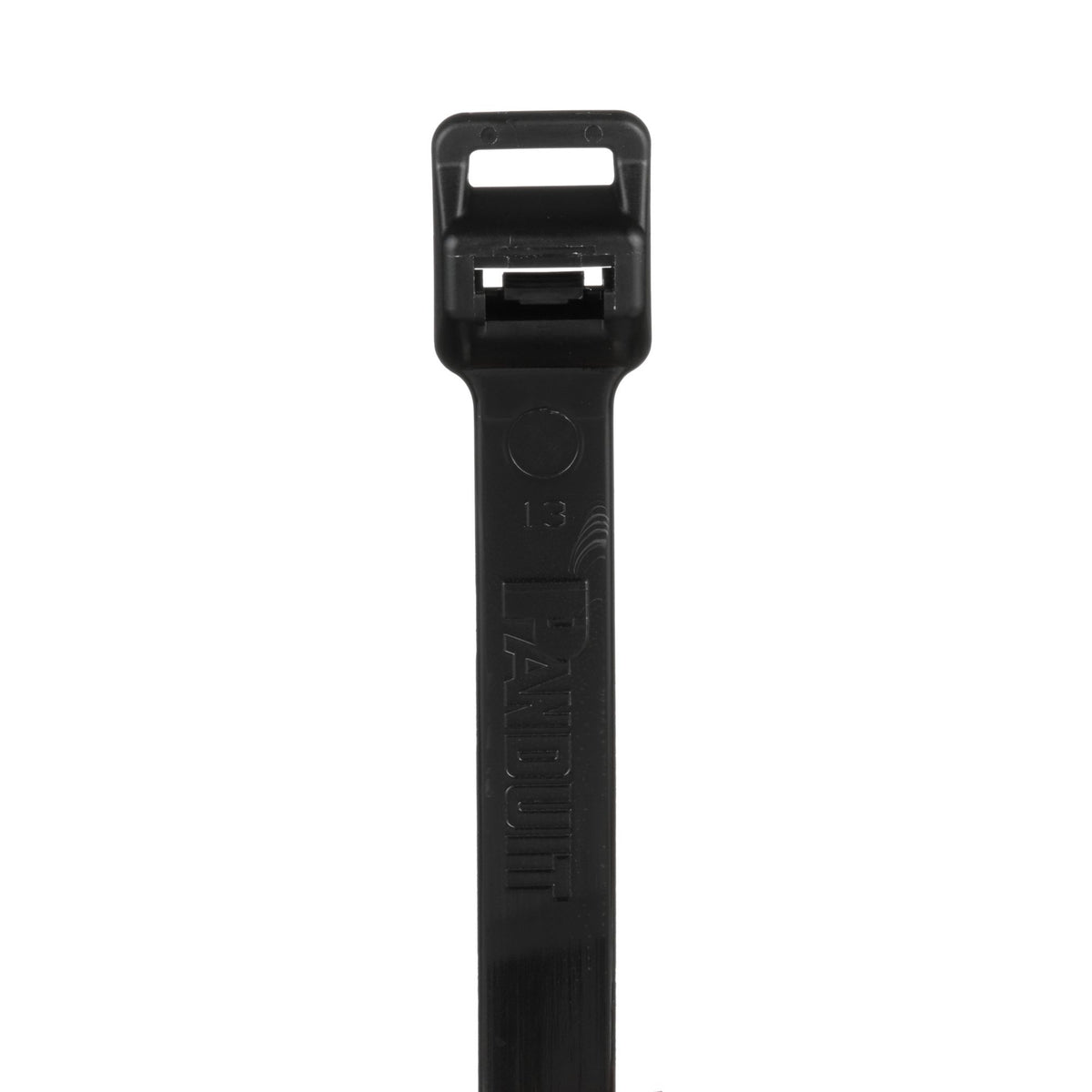

Panduit PLT5EH-C0 | Pan-Ty PLT5EH-C0 Cable Tie, Black, UV PA6.6, 20.1"L, 250lb, PK100
Panduit PLT5EH-C0 Lashing Cable Ties are ideal for heavy duty applications. Extra-Heavy cross section, 20.1" (511mm) length. For Indoor or outdoor use, made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 100.
Panduit PLT5EH-C0 Cable Tie, Eh, 20.1in, Weather Resistant, Blue
Specifications
Specifications
Panduit - PLT5EH-C0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT5EH-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT5EH-C0 |
| Item Description | Pan-Ty PLT5EH-C0 Cable Tie, Black, UV PA6.6, 20.1"L, 250lb, PK100 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 20.1 |
| Overall Length (mm) | 511 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Body Thickness (In.) | 0.075 |
| Body Thickness (mm) | 1.9 |
| Maximum Bundle Diameter (In.) | 5 |
| Maximum Bundle Diameter (mm) | 127 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 1112 |
| Minimum Loop Tensile Strength (lb) | 250 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), CSA Certified, RoHS Compliant |
| For Use With | GS4EH-E, ST3EH |
| Part Features | One piece construction provides consistent, reliable performance. Low thread force. Used for heavy duty applications. |
Panduit - PLT5EH-C0 - Package Information
| UPC | 07498354113 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.2163 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 2.1626 |
Panduit - PLT5EH-C0 - Videos
| Video 1 | Click to View |
|---|
