Brand: Panduit
|
SKU:
1003018
Panduit PLT5H-L0 | Cable Ties | UPC - 07498354103
Regular price
$82.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog

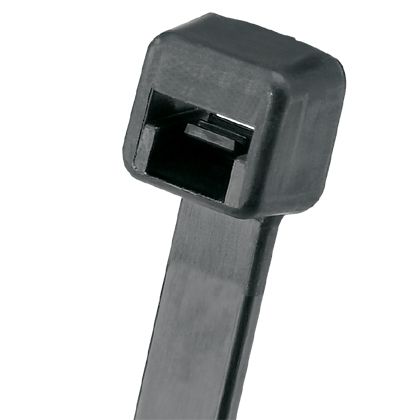

Panduit PLT5H-L0 | Cable Ties | UPC - 07498354103
Regular price
$82.24
Unit price
Description
Description
Panduit Pan-Ty Cable Tie, Heavy, Series: PLT, 17.7 in Length, 0.35 in Width, 0.08 in Thickness, 5 in Bundle Dia, Locking, 175 lb Tensile, -76 to 185 deg F, Nylon 6.6, Black
Features + Benefits
- 1-piece locking wedge for consistent performance and reliability
- Low thread force and high loop tensile strength
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
Panduit PLT5H-L0 Key Specs
| Product Type | Cable Ties |
| Color | Black |
| Environment | Indoor/Outdoor |
| Sub Brand | Pan-Ty |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Maximum Bundle Diameter (In.) | 5 |
| Maximum Bundle Diameter (mm) | 127 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Bundle Diameter (In.) | 0.188 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 778 |
| Minimum Loop Tensile Strength (lb) | 175 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Length (In.) | 17.7 |
| Overall Length (mm) | 450 |
| Body Width (In.) | 0.35 |
| Body Width (mm) | 8.9 |
| Body Thickness (In.) | 0.078 |
| Body Thickness (mm) | 2 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Complaint |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit PLT5H-L0 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PLT1.5M-CO Product Page | Download and View |
| Part Drawings | PAN-TY Locking Cable Tie: SS-5540 Sheet 4 | Download and View |
| Videos | Premium Cable Ties | Download and View |
| Selection Guides | Cable Ties Product Selection Guide. | Download and View |
