Panduit PLT5S-C0 | Pan-Ty Plt5S-C0 Cable Tie, Black, Uv Pa6.6, 17.5...
Description
Description

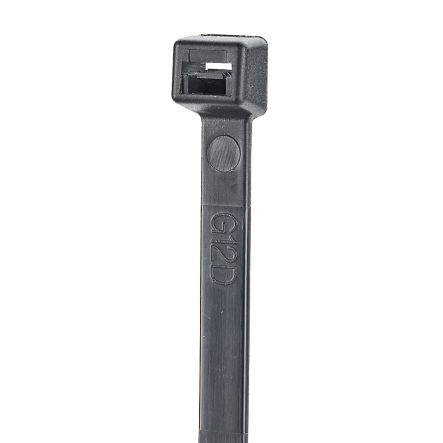

Panduit PLT5S-C0 Locking Cable Ties are designed to satisfy the needs of weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 17.5" (445mm) length. Made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 100.
Panduit - PLT5S-C0 - Features
- Greater resistance to damage caused by ultraviolet light - indoor or outdoor use
- Versatile cable ties can be used in countless applications
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- Curved tip on Standard cross section is easy to pick up from flat surfaces and allows faster initial threading to speed installation. Light-Heavy and Heavy cross section is a straight tip design
- Locking Tie
- Material: Weather-resistant Nylon 6.6
- Color: Black
- Cross Section: Standard
- Loop Tensile Strength: 50 lb (222 N) Minimum
- Continuous Use Temperature Range: -76 to 185 deg F (-60 to 85 deg C)
- Plenum: No
- Tool: GTS, GTSL, GS2B, GTH, GS4H, PTS, PTH, PPTS, STS2, STH2
- Bundle Diameter: 0.06 - 5 Inch (1.5 - 127 mm)
- Environment: Outdoor (UV Resistant)
- Dimension: 17.5 Inch Length x 0.19 Inch Width x 0.052 Inch Thickness (445 mm x 4.8 mm x 1.3 mm)
Specifications
Specifications
Panduit - PLT5S-C0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT5S-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT5S-C0 |
| Item Description | Pan-Ty Plt5S-C0 Cable Tie, Black, Uv Pa6.6, 17.5"L, 50Lb, Pk100 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 17.5 |
| Overall Length (mm) | 445 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 5 |
| Maximum Bundle Diameter (mm) | 127 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2 |
| Part Features | One piece construction provides consistent, reliable performance. Low thread force. |
Panduit - PLT5S-C0 - Package Information
| UPC | 07498354086 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0699 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.6991 |
