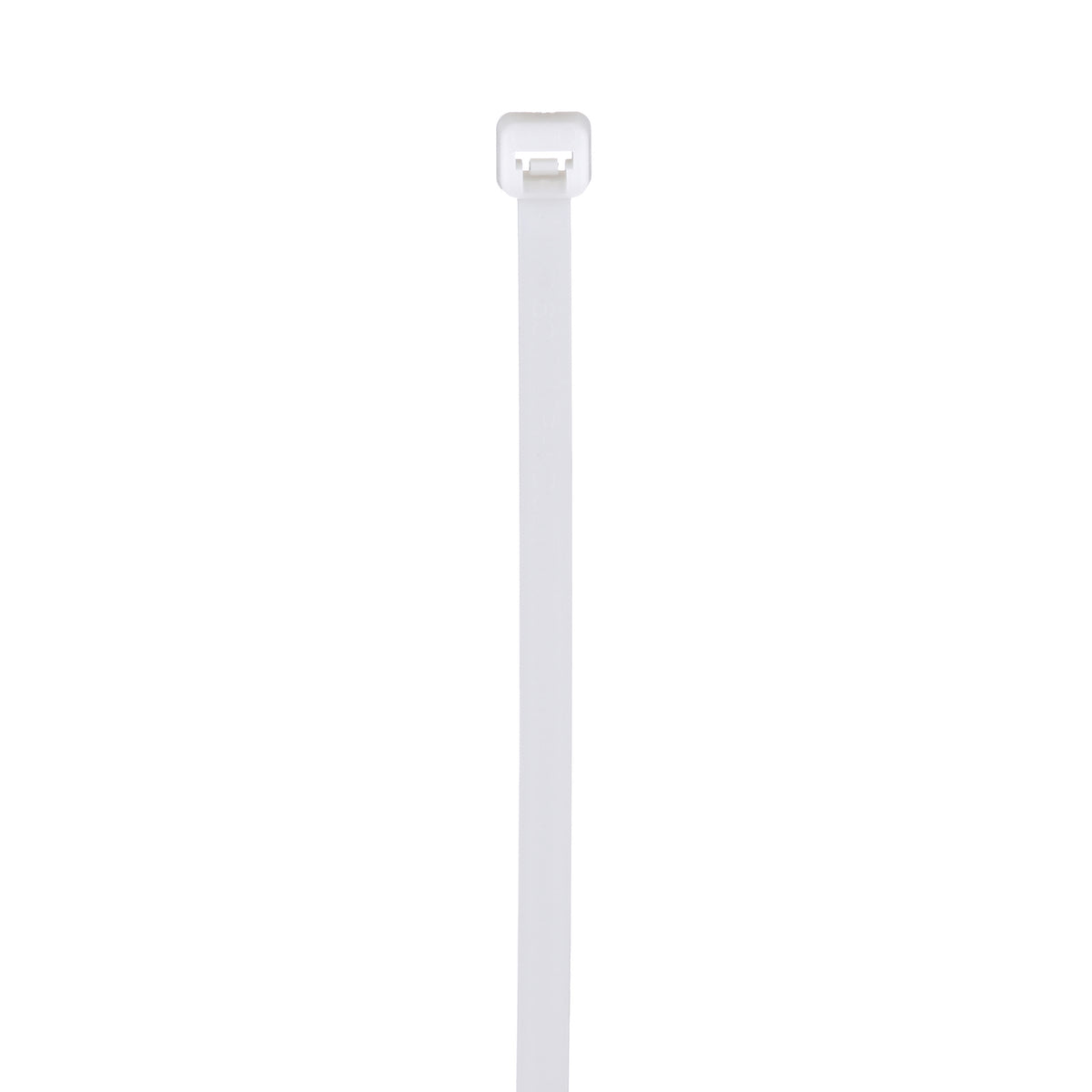

Panduit PLT5S-M | Cable Ties | UPC - 07498354087
Regular price
$400.52
Unit price
Brand: Panduit
|
SKU:
PAN-PLT5S-M
Regular price
$400.52
Unit price
Description
Description
Panduit Pan-Ty Cable Tie, Plenum Rated Standard, Series: PLT, 17-1/2 in Length, 0.19 in Width, 0.05 in Thickness, 5 in Bundle Dia, Locking, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Features + Benefits
- 1-piece locking wedge for consistent performance and reliability
- Low thread force and high loop tensile strength
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
Panduit PLT5S-M | Cable Ties | UPC - 07498354087 Key Specs
| Product Type | Cable Ties |
| Color | Natural |
| Environment | Indoor |
| Sub Brand | Pan-Ty |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2 |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 5 |
| Maximum Bundle Diameter (mm) | 127 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
Panduit PLT5S-M | Cable Ties | UPC - 07498354087 Data Sheets
| Part Drawings | PAN-TY Locking Cable Tie: SS-5540 Sheet 3 | Download and View |
| Videos | Premium Cable Ties | Download and View |
| Selection Guides | Cable Ties Product Selection Guide. | Download and View |
Panduit PLT5S-M | Cable Ties | UPC - 07498354087 Environmental Information
| Panduit's RoHS Statement | Download and View |
