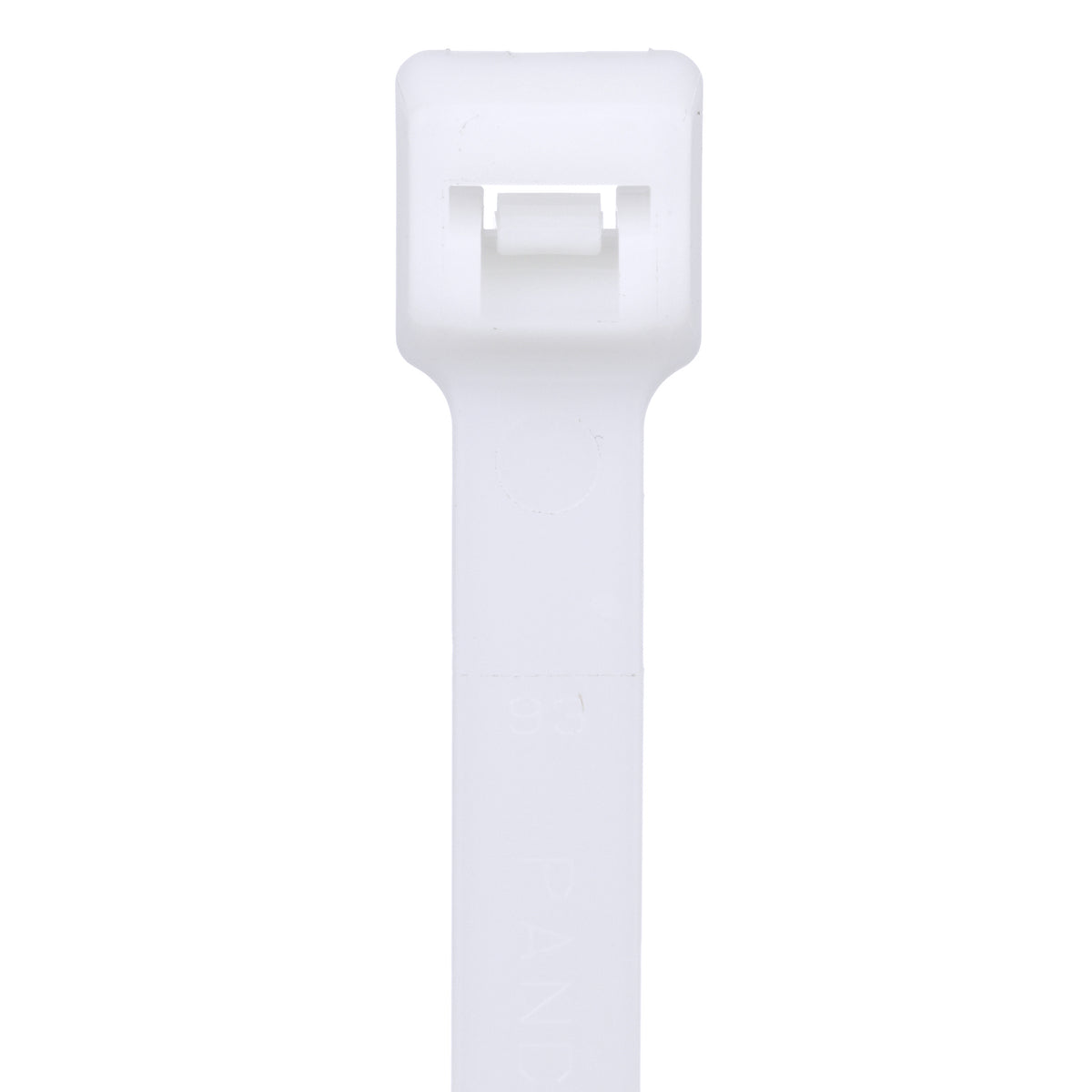

Panduit PLT6H-C | Pan-Ty® Locking Cable Tie
Regular price
$93.99
Unit price
Brand: Panduit
|
SKU:
10083461
Regular price
$93.99
Unit price
Description
Description
Panduit PLT6H-C | Pan-Ty® Locking Cable Tie
Panduit Pan-Ty Cable Tie, Heavy, Series: PLT, 20.9 in Length, 0.35 in Width, 0.08 in Thickness, 6 in Bundle Dia, Locking, 175 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Organize your cables efficiently with our standard locking cable tie. This cable tie has a curved tip for easy threading and a nylon material that resists weather.
Panduit - PLT6H-C - Features
- 1-piece locking wedge for consistent performance and reliability
- Low thread force and high loop tensile strength
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
Specifications
Specifications
Panduit - PLT6H-C - Specifications
| Material Description | Nylon 6.6 () |
|---|---|
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 20.9 |
| Overall Length (mm) | 530 |
| Body Width (In.) | 0.35 |
| Body Width (mm) | 8.9 |
| Body Thickness (In.) | 0.078 |
| Body Thickness (mm) | 2 |
| Maximum Bundle Diameter (In.) | 6 |
| Maximum Bundle Diameter (mm) | 152 |
| Minimum Bundle Diameter (In.) | 0.188 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 778 |
| Minimum Loop Tensile Strength (lb) | 175 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498338776 |
Panduit - PLT6H-C - Package Information
| UPC | 07498338776 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.1606 |
| Standard Ctn. Quantity | 2000 |
| Standard Ctn. Volume (cf) | 3.2122 |
