Brand: Panduit
|
SKU:
PAN-PLT7LH-LO

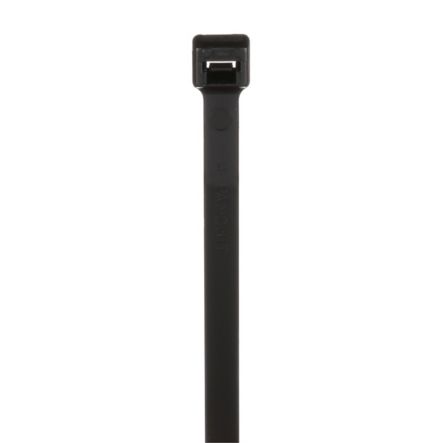

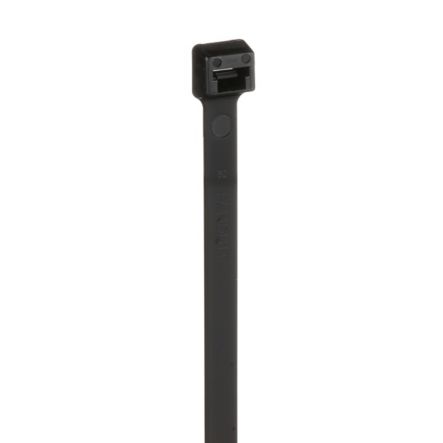

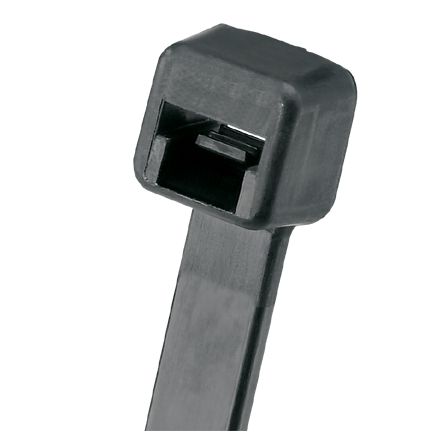

Panduit PLT7LH-L0 Cable Tie, 24.7";L (627mm), Light-Heavy, Weather-resistant, Black
Regular price
$79.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT7LH-L0 Cable Tie, 24.7";L (627mm), Light-Heavy, Wea...
Regular price
$79.64
Unit price
Brand: Panduit
|
SKU:
PAN-PLT7LH-LO
Regular price
$79.64
Unit price
Shipping calculated at checkout.
Description
Description
Panduit PLT7LH-L0 | Pan-Ty PLT7LH-L0 Cable Tie, Black, UV PA6.6, 24.7"L, 120lb, PK50
Panduit PLT7LH-L0 Locking Cable Ties are designed to satisfy the needs of weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Light-Heavy cross section, 24.7" (627mm) length. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 50.
Panduit - PLT7LH-L0 - Features
- Cable Tie, 24.7";, Light-Heavy cross section
- Greater resistance to damage caused by ultraviolet light - indoor or outdoor use
- Versatile cable ties can be used in countless applications
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- Curved tip on Standard cross section is easy to pick up from flat surfaces and allows faster initial threading to speed installation. Light-Heavy and Heavy cross section is a straight tip design
Specifications
Specifications
Panduit - PLT7LH-L0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT7LH-L0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT7LH-L0 |
| Item Description | Pan-Ty PLT7LH-L0 Cable Tie, Black, UV PA6.6, 24.7"L, 120lb, PK50 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 24.7 |
| Overall Length (mm) | 627 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.6 |
| Body Thickness (In.) | 0.075 |
| Body Thickness (mm) | 1.9 |
| Maximum Bundle Diameter (In.) | 7 |
| Maximum Bundle Diameter (mm) | 178 |
| Minimum Bundle Diameter (In.) | 0.188 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 Compliant (Type 2, 21), UL Recognized (File #E56854), CSA Certified, RoHS Compliant |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT7LH-L0 - Package Information
| UPC | 07498354169 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.1453 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 1.4527 |
Panduit - PLT7LH-L0 - Videos
| Video 1 | Click to View |
|---|
