Panduit PLT8LH-C120 | Pan-Ty PLT8LH-C120 Cable Tie, Black, UV Nylon...
Description
Description

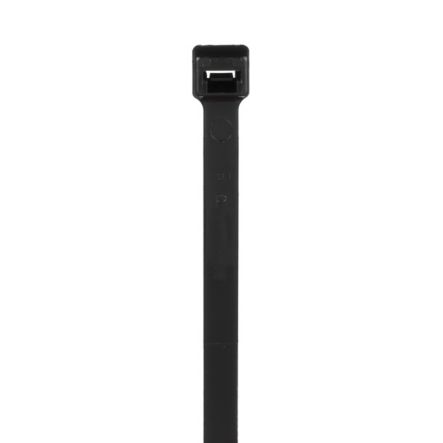

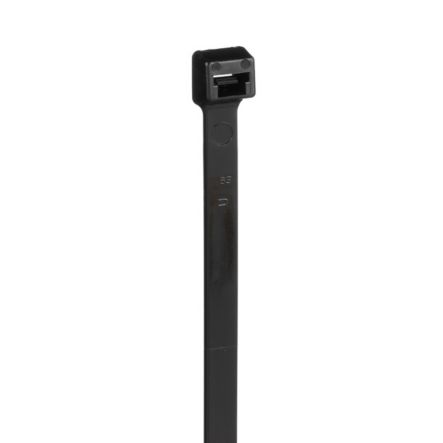

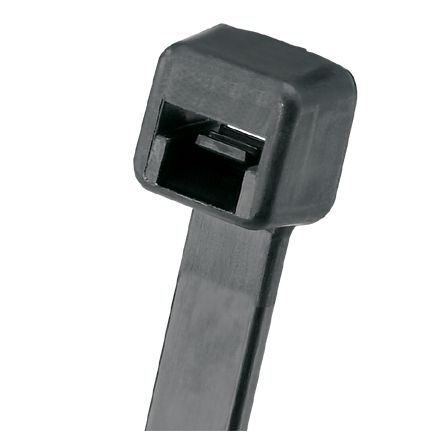

Panduit PLT8LH-C120 Locking Cable Ties are designed to satisfy the needs of solar applications and resistance to corrosive elements such as zinc chloride applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Light-Heavy cross section, 27.6" (701mm) length. Made of Weather Resistant Nylon 12 with high resistance to ultraviolet light, are black in color and come in packages of 100.
Specifications
Specifications
Panduit - PLT8LH-C120 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT8LH-C120 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT8LH-C120 |
| Item Description | Pan-Ty PLT8LH-C120 Cable Tie, Black, UV Nylon 12, 27.6"L, 90lb, PK100 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Nylon 12 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 27.6 |
| Overall Length (mm) | 701 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.6 |
| Body Thickness (In.) | 0.075 |
| Body Thickness (mm) | 1.9 |
| Maximum Bundle Diameter (In.) | 8 |
| Maximum Bundle Diameter (mm) | 203 |
| Minimum Bundle Diameter (In.) | 0.188 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 400 |
| Minimum Loop Tensile Strength (lb) | 90 |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS Compliant |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT8LH-C120 - Package Information
| UPC | 07498338740 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.1417 |
| Standard. Ctn. Quantity | 2000 |
| Standard. Ctn. Volume (cf) | 2.8336 |
Panduit - PLT8LH-C120 - Videos
| Video 1 | Click to View |
|---|
