Brand: Panduit
|
SKU:
363860
Panduit PLUP40SE-D | Premium Cable Tie
Regular price
$183.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLUP40SE-D | Premium Cable Tie
Regular price
$183.64
Unit price
Description
Description

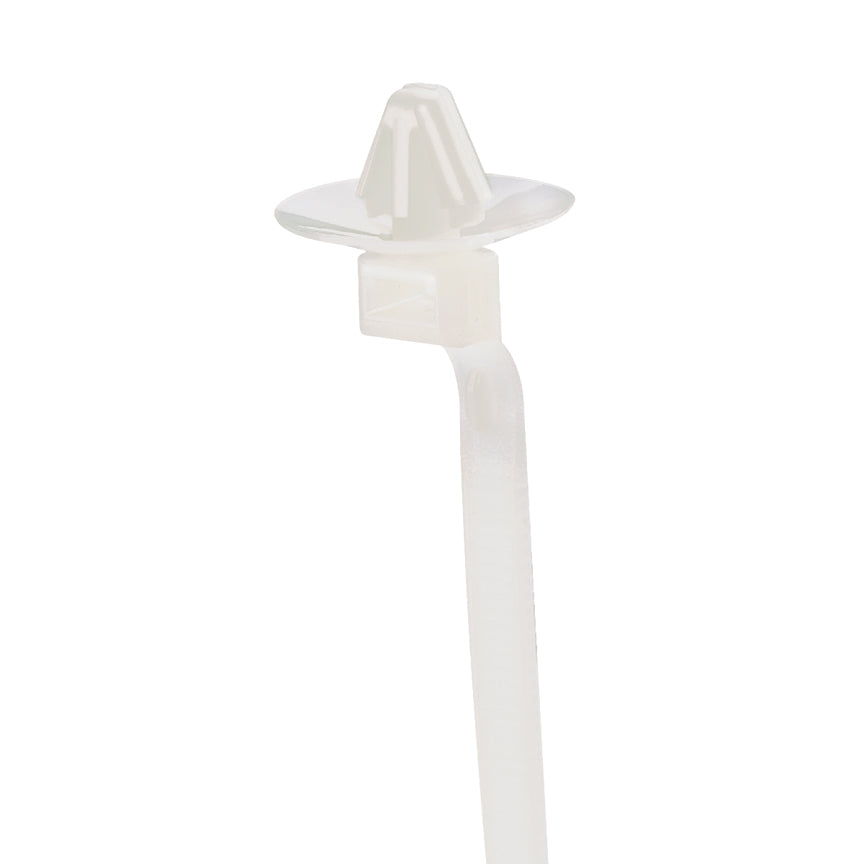

Panduit PLUP40SE-D | Premium Cable Tie
Our locking umbrella push mount tie is designed to keep tubing and cables stable and rattle-free. It seals panel holes with constant tension, withstanding high temperatures.
Umbrella Wing Push Mount Cable Tie, 7.0", Standard cross section
Panduit Pan-Ty Cable Tie, Standard Umbrella Wing Push Mount, 7 in Length, 0.19 in Width, 0.05 in Thickness, 1.57 in Diameter Bundle, Lock Mechanism: Locking, 50 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Natural
Panduit - PLUP40SE-D - Features
- Quick, secure way to fasten to clearance holes in panel
- Anchor is easily pressed into a pre-formed hole in a light gauge metal or plastic and locks in place
- Umbrella shaped disk provides constant tension for a stable, secure and rattle-free installation
- Disk forms a Dust-tight and semi-liquidtight seal to the panel surface
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Natural nylon material for indoor use
- Heat stabilized material for high temperature applications up to 239F (115C) - indoor use
- Quick, secure way to fasten to clearance holes in panel
- Anchor is easily pressed into a pre-formed hole in a light gaugemetal or plastic and locks in place
- Umbrella shaped disk provides constant tension for a stable, secure and rattle-free installation
- Disk forms a dust-tight and semi-liquid tight seal to the panel surface
- PLUP40SE style is for use with Corrugated LoomTubing
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PLUP40SE-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLUP40SE-D |
| Cable Tie Diameter | 7" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Material Description | Nylon 6.6 () |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 7 |
| Overall Length (mm) | 177 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.047 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 1.57 |
| Maximum Bundle Diameter (mm) | 39.9 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498371015 |
Panduit - PLUP40SE-D - Videos
| Panduit PLUP40SE-D Video 1 | Click to View |
|---|
