Panduit PLWP1.5I-D30 | Pan-Ty PLWP1.5I-D30 Wing Push Mount Tie, Bla...
Description
Description

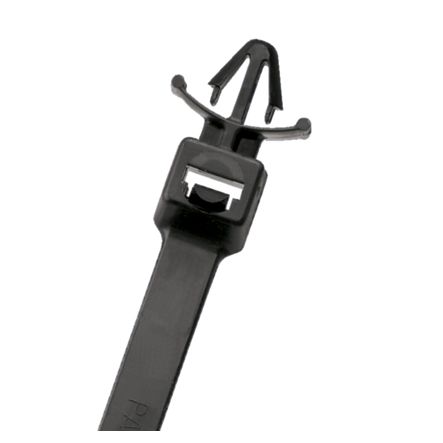

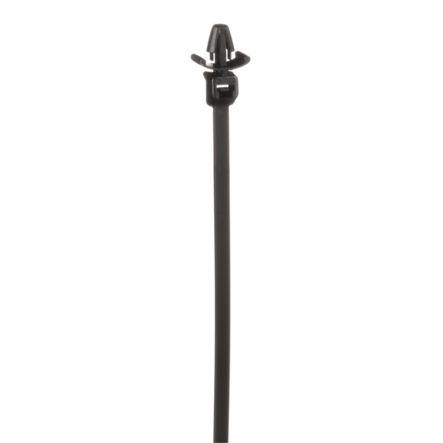

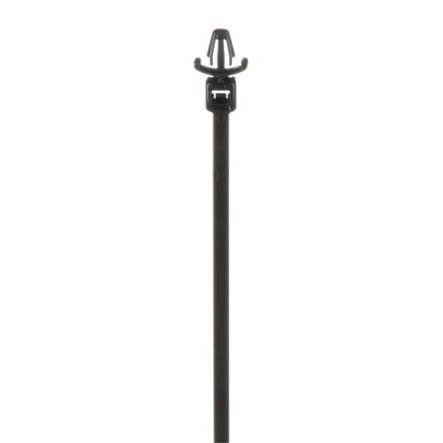

Panduit PLWP1.5I-D30 Wing Mount Push Cable Ties use an all-in-one design to attach bundles to another surface using a stable, secure, rattle-free connection. The anchor presses easily into a pre-formed hole and locks in place. Made of Heat Stabilized Nylon 6.6, they satisfy the needs of high temperature applications. Intermediate cross section, 6.0" (152mm) length. They are black in color and come in packages of 500.
Panduit PLWP1.5I-D30 - CABLE TIE - WINGED PUSH MOUNT TIES 6" LONG
Specifications
Specifications
Panduit - PLWP1.5I-D30 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLWP1.5I-D30 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLWP1.5I-D30 |
| Item Description | Pan-Ty PLWP1.5I-D30 Wing Push Mount Tie, Black, High Heat PA6.6, 6"L, 40lb |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor |
| Material | Heat Stabilized Nylon 6.6 |
| Resistance Properties | Heat Resistant |
| Overall Length (In.) | 6 |
| Overall Length (mm) | 152 |
| Body Width (In.) | 0.135 |
| Body Width (mm) | 3.4 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 1.25 |
| Maximum Bundle Diameter (mm) | 31.8 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
Panduit - PLWP1.5I-D30 - Package Information
| UPC | 07498322413 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.1120 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.1203 |
Panduit - PLWP1.5I-D30 - Videos
| Video 1 | Click to View |
|---|
