Brand: Panduit
|
SKU:
806044-MSSL

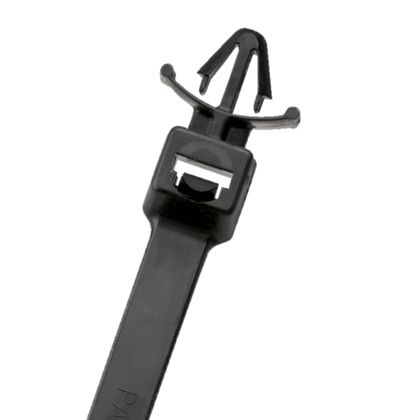

Panduit PLWP1.5S-D30 | Pan-Ty PLWP1.5S-D30 Wing Push Mount Tie, Black, High Heat PA6.6, 6.8"L, 50lb
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLWP1.5S-D30 | Pan-Ty PLWP1.5S-D30 Wing Push Mount Tie, Bla...
Regular price
$1.47
Unit price
Description
Description
Panduit PLWP1.5S-D30 | Pan-Ty PLWP1.5S-D30 Wing Push Mount Tie, Black, High Heat PA6.6, 6.8"L, 50lb
Pan-Ty Locking Wing Mount Push Ties use an all-in-one design to attach bundles to another surface using a stable, secure, rattle-free connection. Plus, with heat stabilized Nylon 6.6 material, it's ideal for temperatures up to 239 degrees. Standard cross section, 6.8in, Tensile Strength: 222, Black, 500pc.
Specifications
Specifications
Panduit - PLWP1.5S-D30 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLWP1.5S-D30 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLWP1.5S-D30 |
| Item Description | Pan-Ty PLWP1.5S-D30 Wing Push Mount Tie, Black, High Heat PA6.6, 6.8"L, 50lb |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Resistance Properties | Heat-Resistant |
| Overall Length (In.) | 6.8 |
| Overall Length (mm) | 173 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 1 |
| Maximum Bundle Diameter (mm) | 25.4 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL Recognized (File #E56854), RoHS Compliant |
| For Use With | GTS, GTSL, GS2B, GTH, GS4H, PTS, PTH, PPTS, STS2, STH2 |
| Application | High Temperature |
Brand Name - PLWP1.5S-D30 - Package Information
| UPC | 07498356804 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.2211 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 2.2112 |
Brand Name - PLWP1.5S-D30 - Videos
| Video URL 1 | Click to View |
|---|
