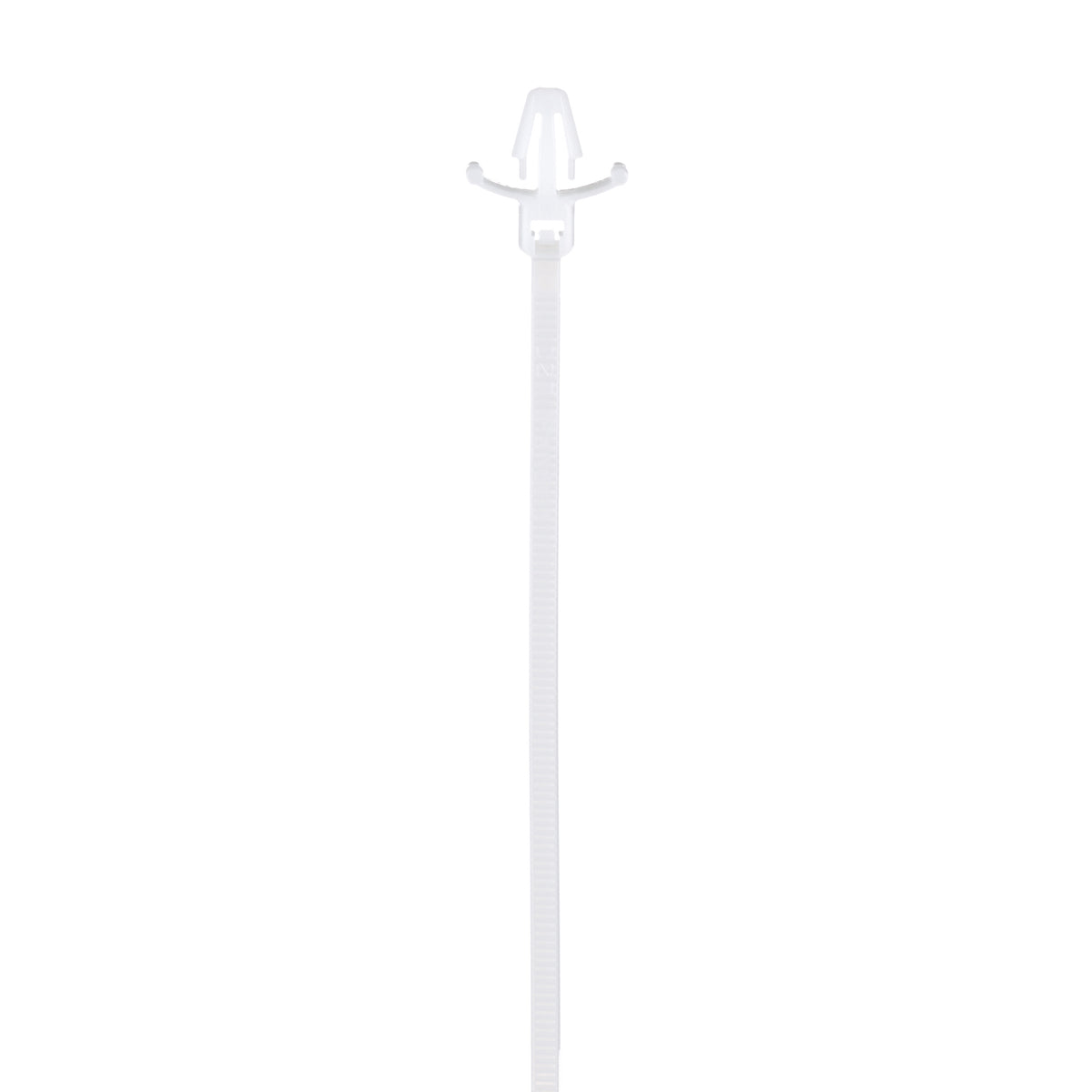

Panduit PLWP1M-D | Pan-Ty Wing Push Mount Cable Tie, PA6.6, 4.3"L, 18lb, PK500
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
No more loose or rattling cables with our locking wing mount push tie. This tie locks into place in any hole and provides a secure, stable connection while handling UV exposure and heat.
Pan-Ty metal detectable cable ties and mounts are designed to help the food, beverage and pharmaceutical industries meet product manufacturing safety standards. featuring metal impregnated material, these metal detectable products are identifiable by metal detection equipment. Panduit metal detectable products help companies comply with the U.S. food and Drug Administration HACCP* standards and the European Union (EU) hygiene monitoring regulations. Additionally, the distinct blue color facilitates quick visual detection. metal detectable cable ties and mounts are available in either nylon material for general purpose applications or polypropylene material which provides superior resistance to harsh cleaning chemicals. the GT series of tools captures the cut-off tips of ties to help further prevent process stream contamination. the Pan-Ty metal detectable cable ties, cable tie mounts and installation tools deliver a complete bundling solution to help reduce product contamination and loss.
Panduit Pan-Ty Miniature Cable Tie, Cross Section, 4.3 in Length, 0.1 in Width, 0.04 in Thickness, 0.87 in Bundle Dia, Locking, 18 lb Tensile, -70 to 185 deg F, Nylon 6.6, Natural
Panduit - PLWP1M-D - Features
- Cable tie, mount and fastener in a single part
- Anchor is easily pressed into a pre-formed hole and locks in place
- Wings provide constant tension for a stable, secure and rattle free installation
- Used to attach bundles to another surface such as a flat panel
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PLWP1M-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLWP1M-D |
| Material Description | Nylon 6.6 () |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 4.3 |
| Overall Length (mm) | 109 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.044 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22.1 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498354306 |
Panduit - PLWP1M-D - Videos
| Panduit PLWP1M-D Video 1 | Click to View |
|---|
