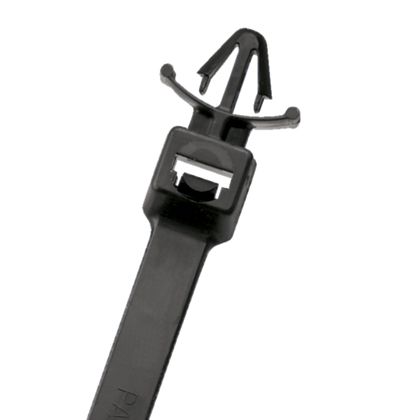

Panduit PLWP1M-D0 | Pan-Ty Wing Push Mount Cable Tie, Black, UV PA6.6, 4.3"L, 18lb, PK500
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLWP1M-D0 | Pan-Ty Wing Push Mount Cable Tie, Black, UV PA6...
Description
Description
No more loose or rattling cables with our locking wing mount push tie. This tie locks into place in any hole and provides a secure, stable connection while handling UV exposure and heat.
Wing Push Mount Tie, 4.3", Miniature cross section
Pan-Ty locking wing mount push ties use an all-in-one design to attach bundles to another surface using a stable, secure, rattle-free connection. Plus, with weather-resistant nylon 6.6 material, it's ideal for intense UV environments. Miniature cross section, 4.3 in, tensile strength: 80, Black, 500pc.
Panduit Pan-Ty Cable Tie, 4.3 in Length, 0.1 in Width, 0.04 in Thickness, 0.87 in Bundle Dia, Lock Mechanism: Locking, 18 lb Tensile, 185 deg F, Nylon 6.6, Black
Panduit - PLWP1M-D0 - Features
- Greater resistance to damage caused by ultraviolet light - indoor or outdoor use
- Cable tie, mount, and fastener in a single part
- Used to attach bundles to another surface such as a flat panel
- Anchor is easily pressed into a pre-formed hole and locks n place
- Wings provide constant tension for a stable, secure and rattle-free installation
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PLWP1M-D0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLWP1M-D0 |
| Cable Tie Diameter | 4" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 4.3 |
| Overall Length (mm) | 109 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.044 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498356806 |
Panduit - PLWP1M-D0 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
