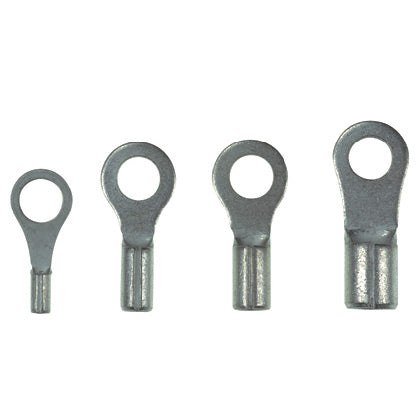

Panduit PM1-5R-C | Loose Piece Ring Terminal | UPC - 07498384154
Regular price
$40.76
Unit price
Brand: Panduit
|
SKU:
10044543
Regular price
$40.76
Unit price
Description
Description
Ring Terminal, 0.5 – 1.5mm² wire range, M5 stud size, non-insulated, bulk package.
Panduit Panduit PM1-5R-C | Loose Piece Ring Terminal | UPC - 07498384154 Key Specs
| Stud Hole Size (In.) | 29/100 |
| Stud Hole Size (mm) | 7.4 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | 22,18 |
| Maximum Wire Size (AWG) | #22, #18 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL 486A - UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Barrel Type | Funnel |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
Panduit Panduit PM1-5R-C | Loose Piece Ring Terminal | UPC - 07498384154 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PMV1-3RB-CY Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A4143002 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PM1-5R-C | Loose Piece Ring Terminal | UPC - 07498384154 Environmental Information
| Panduit's RoHS Statement | Download and View |
