Brand: Panduit
|
SKU:
10044544

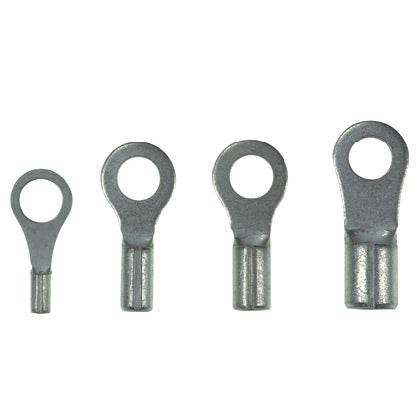

Panduit PM2-3R-C | Loose Piece Ring Terminal | UPC - 07498384210
Regular price
$50.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PM2-3R-C | Loose Piece Ring Terminal | UPC - 07498384210
Regular price
$50.91
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PM-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, M3 Stud, 0.62 in Length, Brazed Seam/Standard Barrel, 0.09 in ID Barrel, Ring Tongue, 0.23 in W x 0.03 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.22 in Clearance, 302 deg F, Copper, Tin Plated, Metallic
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit PM2-3R-C | Loose Piece Ring Terminal | UPC - 07498384210 Key Specs
| Stud Hole Size (In.) | 11/50 |
| Stud Hole Size (mm) | 5.6 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | 16,14 |
| Maximum Wire Size (AWG) | #16, #14 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL 486A - UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Barrel Type | Funnel |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
Panduit Panduit PM2-3R-C | Loose Piece Ring Terminal | UPC - 07498384210 Environmental Information
| Panduit's RoHS Statement | Download and View |
