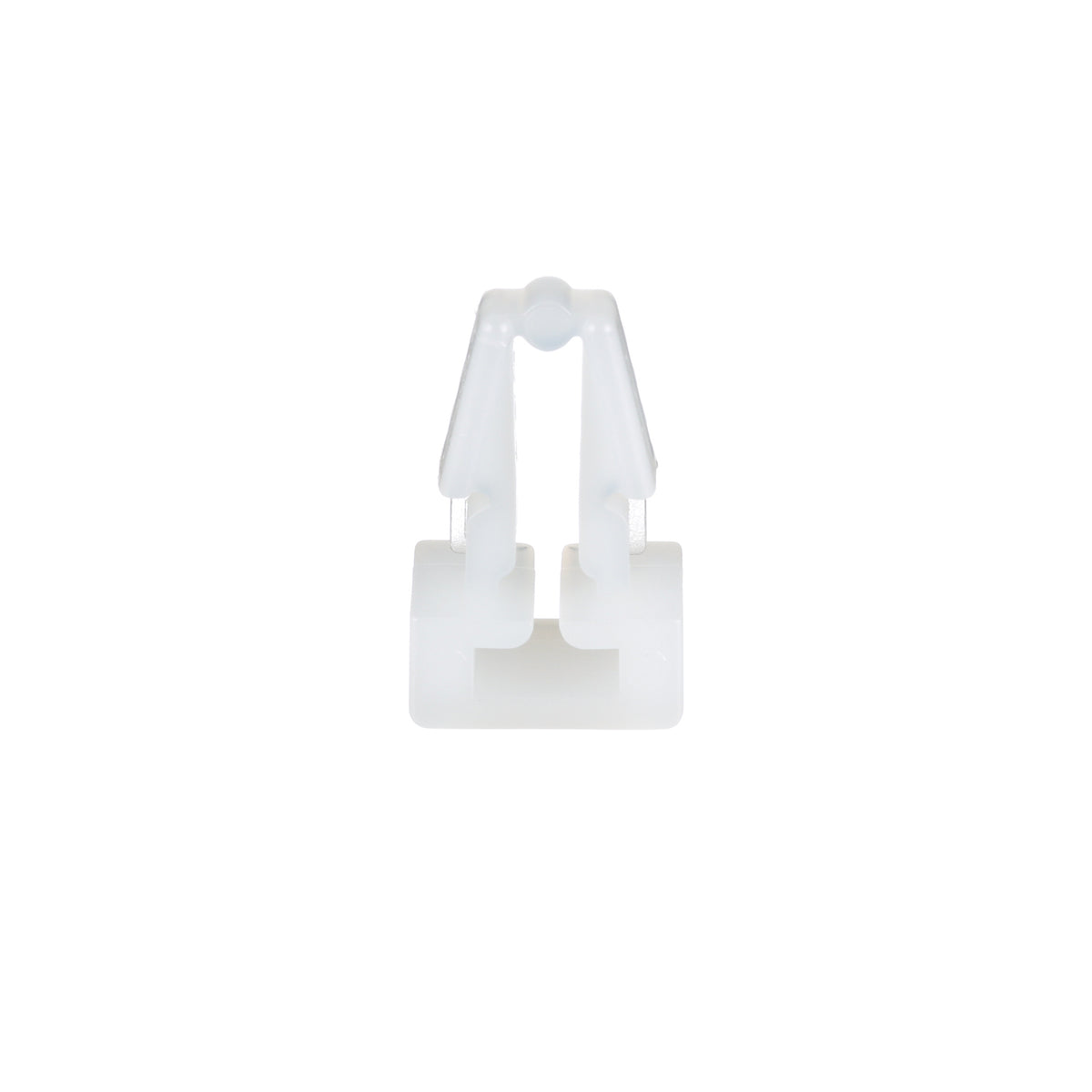

Panduit PM2H25-M | Cable Tie Mount, Natural, PA 6.6, Push Barb, 0.3x0.38", PK1000
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PM2H25-M | Cable Tie Mount, Natural, PA 6.6, Push Barb, 0.3...
Description
Description
Perfect for panels accessible from one side, the push cable tie mount requires no adhesives or extra hardware. Secure your cables effortlessly in indoor environments.
Panduit PM2H25-M Push Cable Mounts can be used where only one side of the panel is accessible and require no adhesive or additional mounting hardware. They have a maximum panel thickness limit of 0.13 (3.2mm) and require a panel hole of 0.25 (6.4mm) fo r mounting. For use in indoor environments and with miniature, intermediate and standard cable ties. Made of Nylon 6.6, are natural in color and come in packages of 1000.
Panduit Cable Tie Mount, 2-Way Tie Entry, Push Barb Mounting, 0.19 in Maximum Tie Width, 0.38 in Base Length, 0.38 in Base Width, Nylon 6.6, Natural
Panduit - PM2H25-M - Features
- Polyamide (PA) insulation
- For use with miniature, intermediate and standard cable ties
Specifications
Specifications
Panduit - PM2H25-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PM2H25-M |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie Mount |
| Application | Push Mounts for use where Only One Side of the Panel is Accessible |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.13 |
| Maximum Compatible Panel Thickness (mm) | 3.3 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Push Barb |
| Overall Length (In.) | 0.3 |
| Overall Length (mm) | 7.6 |
| Overall Width (In.) | 0.38 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.62 |
| Overall Height (mm) | 15.7 |
| Standards Met | CE Compliant, UL Recognized: E56854, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498358361 |
Panduit - PM2H25-M - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - PM2H25-M - Videos
| Panduit PM2H25-M Video 1 | Click to View |
|---|
