Panduit PM2H25-M | PM2H25-M Cable Tie Mount, Natural, PA 6.6, Push ...
Description
Description

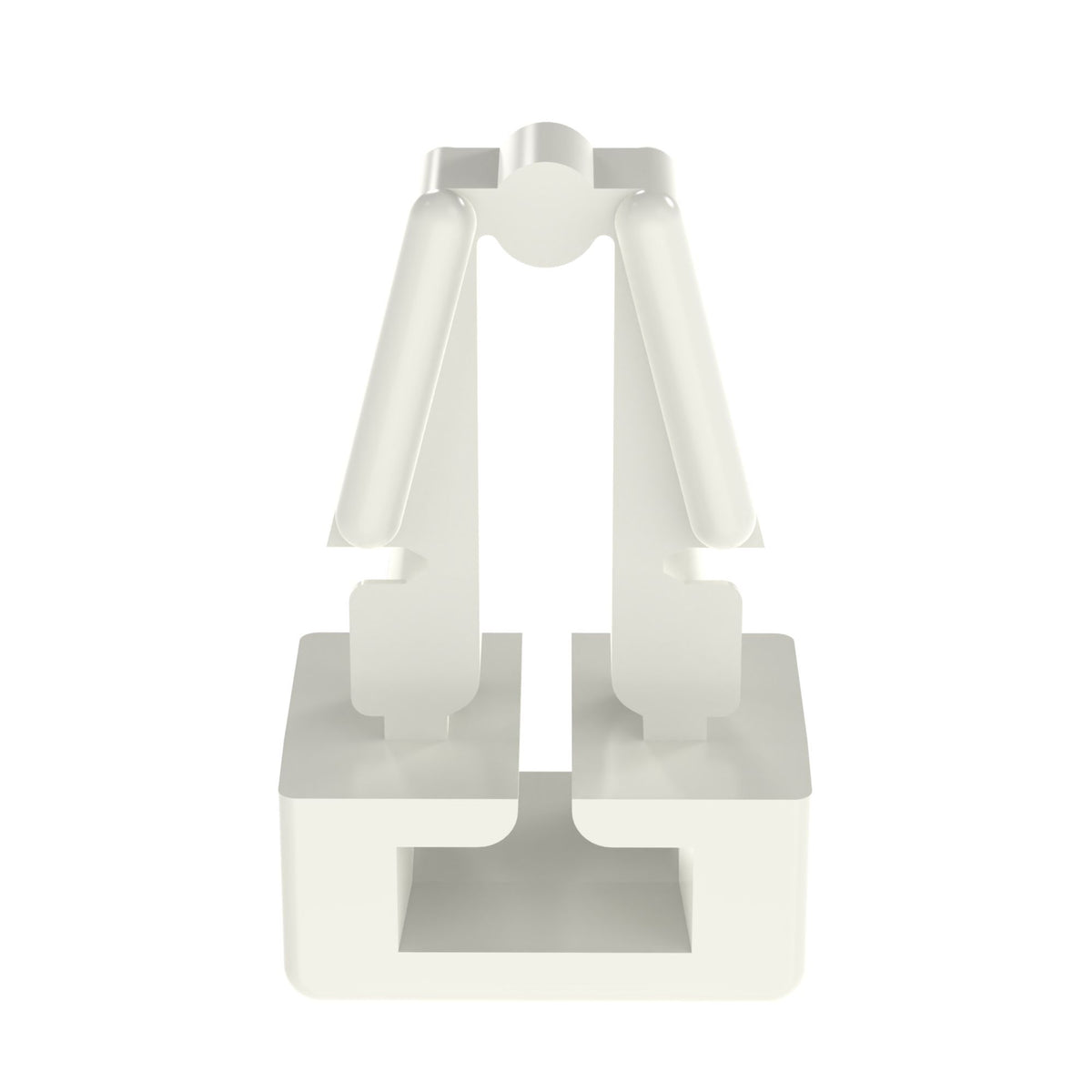

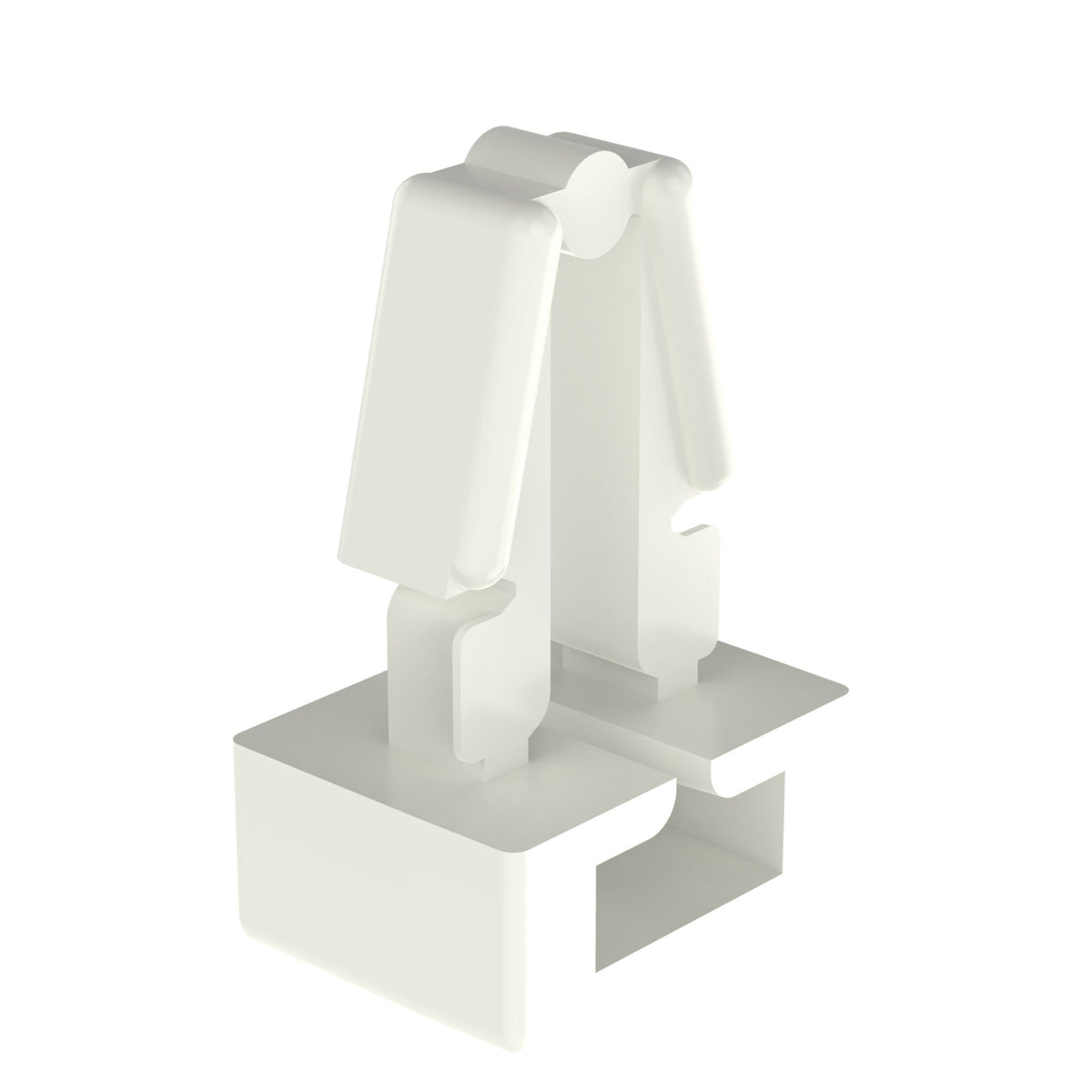

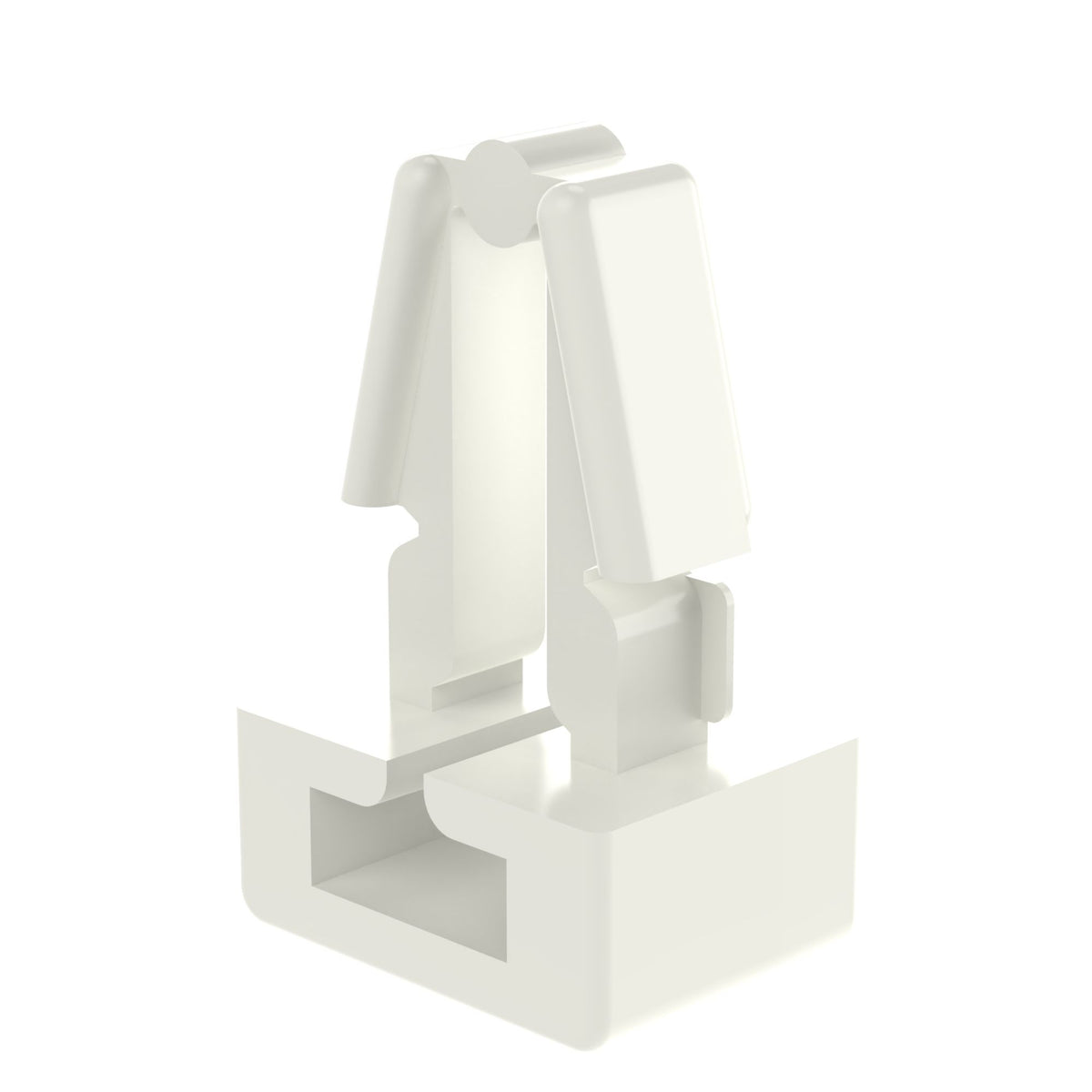

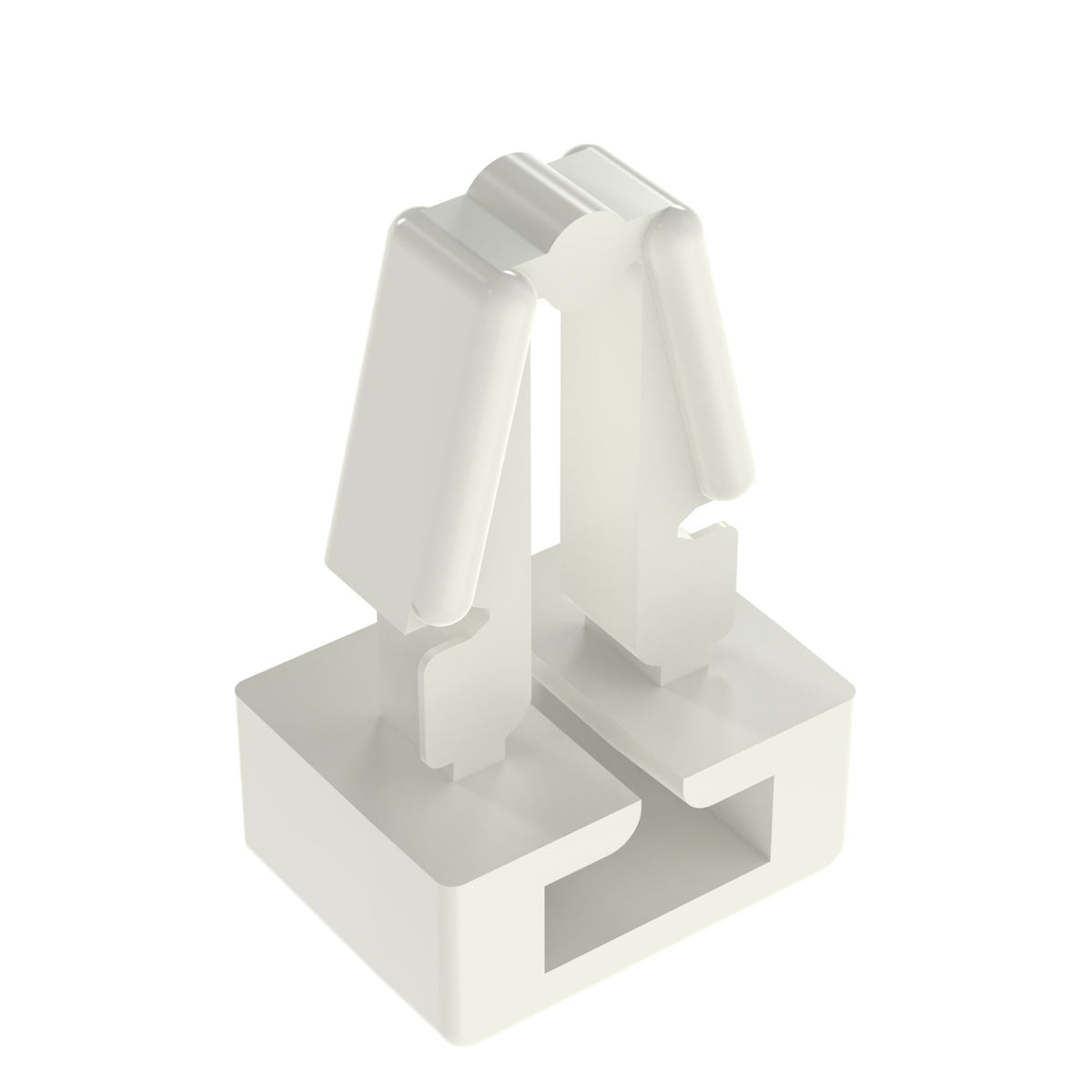

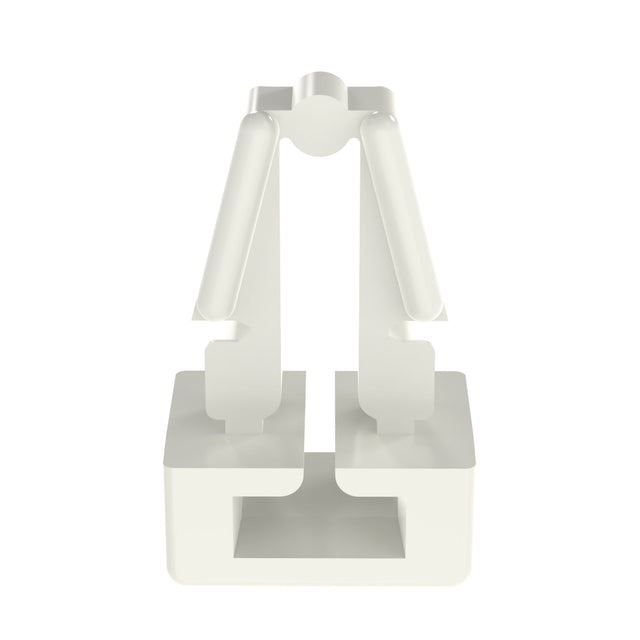

Panduit PM2H25-M Push Cable Mounts can be used where only one side of the panel is accessible and require no adhesive or additional mounting hardware. They have a maximum panel thickness limit of 0.13" (3.2mm) and require a panel hole of 0.25" (6.4mm) for mounting. For use in indoor environments and with miniature, intermediate and standard cable ties. Made of Nylon 6.6, are natural in color and come in packages of 1000.
Panduit PM2H25-M - CABLE TIE - PUSH BARB CABLE TIE MOUNT
Specifications
Specifications
Panduit - PM2H25-M - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - PM2H25-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PM2H25-M |
| Item Description | PM2H25-M Cable Tie Mount, Natural, PA 6.6, Push Barb, 0.3x0.38", PK1000 |
| Application | Push Mounts for use where Only One Side of the Panel is Accessible |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.13 |
| Maximum Compatible Panel Thickness (mm) | 3.3 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Push Barb |
| Overall Height (In.) | 0.62 |
| Overall Height (mm) | 15.7 |
| Overall Length (In.) | 0.3 |
| Overall Length (mm) | 7.6 |
| Overall Width (In.) | 0.38 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant, UL Recognized: E56854, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - PM2H25-M - Package Information
| UPC | 07498358361 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.0753 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 0.3765 |
Panduit - PM2H25-M - Videos
| Video 1 | Click to View |
|---|
