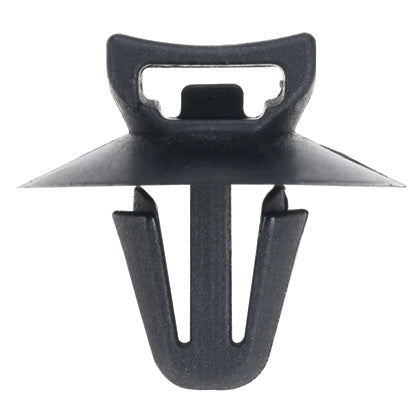

Panduit PMA-065-C0 | Cable Tie Mount | UPC - 07498312155
Description
Description
Fasteners for wire harnesses shall provide fifty pounds of pull-out force with no more than 45 deg maximum rotation of the installed bundle. When installed in the panel, the fastening method shall firmly retain a minimum wire gauge of 12 AWG within +/- 10mm (0.394 in) of the initial installation point. The mounts shall require no more than 9 to 14 lb of insertion force. Mounts shall be self-tensioning to prevent rattles and degradation of the mount over the life of the application. The material for the mounts and the cable ties shall be black, weather-resistant nylon 6.6. Application temperature range shall be -60 to +85 deg C (-76 to +185 deg F).
Panduit Push Barb Mount, Arrow Head Barb Mount, 0.3 in Base Length, 0.65 in Base Dia, Nylon 6.6, Black
Features + Benefits
- Robust barb design
- Exclusive contoured anvil head
- It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance and stiffness
- For use with miniature, intermediate and standard cable tie
Panduit PMA-065-C0 Key Specs
| Application | Push Barb Arrow Head Assembly |
| Product Type | Cable Tie Mount |
| Color | Black |
| Flammability Rating | UL94V-2 |
| Environment | Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.08 |
| Maximum Compatible Panel Thickness (mm) | 2 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Push Barb |
| Overall Height (In.) | 15.3 |
| Overall Height (mm) | 388.6 |
| Overall Length (In.) | 16.5 |
| Overall Length (mm) | 419.1 |
| Overall Width (In.) | 0.65 |
| Overall Width (mm) | 16.5 |
| Resistance Properties | Heat and Wear Resistant |
Panduit PMA-065-C0 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - DNF18-110FIB-C Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Female Disconnects, Nylon Fully Insulated, Funnel Entry | Download and View |
