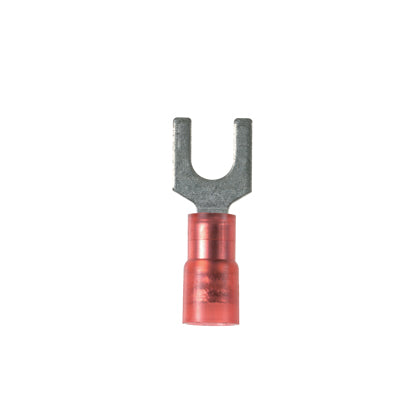

Panduit PMNF1-3F-C | Loose Piece Forks | UPC - 07498384202
Regular price
$3.00
Unit price
Brand: Panduit
|
SKU:
898423-EA
Regular price
$3.00
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece Metric, Series: PMNF-F, Stranded Copper Conductor, 0.5 to 1 sq-mm Conductor, M3 Stud, 0.83 in Length, Funnel Entry/Sleeved Barrel, Fork Tongue, 0.23 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 3.76 mm Dia Nylon Insulation, 5.1 mm Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Non-expanded insulation
Panduit PMNF1-3F-C | Loose Piece Forks | UPC - 07498384202 Key Specs
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | M3 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.5 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PMNF1-3F-C | Loose Piece Forks | UPC - 07498384202 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PMNF1-3F-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A41538 | Download and View |
| Part Drawings | Fork, Nylon (Funnel) Insulated 22 - 18 AWG - A41260 Rev 09 | Download and View |
Panduit PMNF1-3F-C | Loose Piece Forks | UPC - 07498384202 Environmental Information
| Panduit's RoHS Statement | Download and View |
