Brand: Panduit
|
SKU:
898423

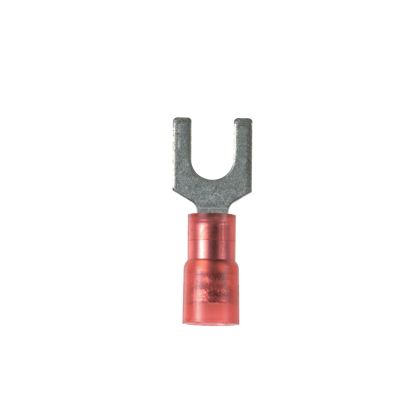

Panduit PMNF1-3F-C | Pan-Term PMNF1-3F-C Fork Terminal, Red, Nylon, 18-22 AWG, 1/8" Stud, PK100
Regular price
$142.40
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PMNF1-3F-C | Pan-Term PMNF1-3F-C Fork Terminal, Red, Nylon,...
Regular price
$142.40
Unit price
Description
Description
Panduit PMNF1-3F-C | Pan-Term PMNF1-3F-C Fork Terminal, Red, Nylon, 18-22 AWG, 1/8" Stud, PK100
Fork Terminal, 0.5 - 1.0mm² wire range, M3 stud size, nylon barrel insulated, funnel entry.
Panduit PMNF1-3F-C Metric Fork Terminal Funnelentry Nylon Insulated 0.5-1mm2wire Range 100/pk
Specifications
Specifications
Panduit - PMNF1-3F-C - Product Categories
- Wire Termination
- Fork Terminals
Panduit - PMNF1-3F-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PMNF1-3F-C |
| Item Description | Pan-Term PMNF1-3F-C Fork Terminal, Red, Nylon, 18-22 AWG, 1/8" Stud, PK100 |
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | M3 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.42 |
| Barrel Length (mm) | 10.5 |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Butted |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Stud Hole Size (In.) | #5 |
| Stud Hole Size (mm) | 3 |
| Overall Length (In.) | 0.83 |
| Overall Length (mm) | 21.1 |
| Overall Width (In.) | 0.23 |
| Overall Width (mm) | 5.8 |
| Tongue Length (In.) | 0.42 |
| Tongue Length (mm) | 10.5 |
| Sub Brand | Pan-Term |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.23 |
| Tongue Width (mm) | 5.8 |
| Packaging Type | Bottle |
| Product Type | Fork Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | Fork design provides for fast and easy installation, without the need to remove fastener. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel se |
Panduit - PMNF1-3F-C - Package Information
| UPC | 07498384202 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0074 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0368 |
