Brand: Panduit
|
SKU:
890630

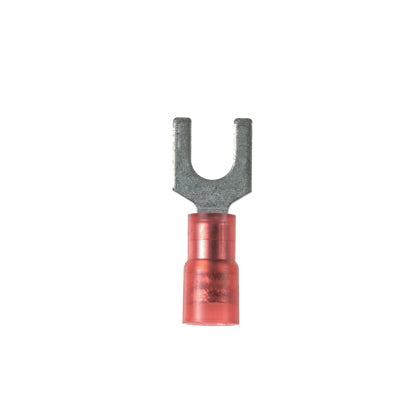

Panduit PMNF1-5F-C | Loose Piece Forks | UPC - 07498384206
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PMNF1-5F-C | Loose Piece Forks | UPC - 07498384206
Regular price
$3.00
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece Metric, Series: PMNF-F, Stranded Copper Conductor, 0.5 to 1 sq-mm Conductor, M5 Stud, 0.9 in Length, Funnel Entry/Insulation Grip Sleeve Barrel, Standard Fork Tongue, 0.35 in W Tongue, 600 VAC, 0.22 in L Wire Strip, 0.15 in Nylon Insulation, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PMNF1-5F-C Key Specs
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | M5 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.5 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PMNF1-5F-C Data Sheets
| Installation Documents | Installation Instructions/Best Practices - Technical Reference | Download and View |
| Part Drawings | Wiring Duct - Type C Cover 2" Part Drawing 36897-876 | Download and View |
| Specification Sheets | Type C Wiring Duct Cover with Protective Film | Download and View |
