Brand: Panduit | SKU: 10044733

Panduit PMNF2-3F-3K | Terminals on a Reel | UPC - 07498368471

$2,019.97

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

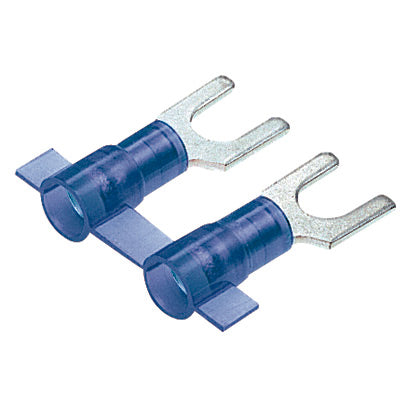

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed Metric, Series: PMNF-F, Stranded Copper Conductor, 1.5 to 2.5 sq-mm Conductor, M3 Stud, 0.78 in Length, Funnel Entry/Sleeved Barrel, Reel Fed Fork Tongue, 0.23 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 4.11 mm Dia Nylon Insulation, 5.1 mm Clearance, 221 deg F, Copper, Tin Plated, Blue

Brazed seam barrel is serrated for high pullout value
Insulation is color coded
On Mylar tape

Panduit Panduit PMNF2-3F-3K | Terminals on a Reel | UPC - 07498368471 Key Specs

Fork Type	Standard
Insulation Material	Nylon
Insulation Type	Nylon
Maximum Copper Conductor Size (AWG SOL)	#14
Maximum Copper Conductor Size (AWG STR)	#14
Maximum Copper Conductor Size (AWG)	#14
Maximum Wire Size (AWG)	#14
Minimum Wire Size (AWG)	#16
Minimum Copper Conductor Size (AWG SOL)	#16
Minimum Copper Conductor Size (AWG STR)	#16
Minimum Copper Conductor Size (AWG)	#16
Maximum Metric Conductor Size (mm²)	2.5
Minimum Metric Conductor Size (mm²)	1.5
Stud Size	M3
Wire Strip Length (In.)	0.25
Wire Strip Length (mm)	6.4
Standards Met	UL Listed 587H E52164; CSA Certified LR31212
Maximum Voltage (V)	600
Maximum Voltage (kV)	0.6
Base Material	Copper

Panduit Panduit PMNF2-3F-3K | Terminals on a Reel | UPC - 07498368471 Environmental Information

Panduit's RoHS Statement

Download and View
