Panduit PMNF2-3R-3K | Ring Terminal | UPC - 07498368434
Regular price
$2,019.97
Unit price
Description
Description

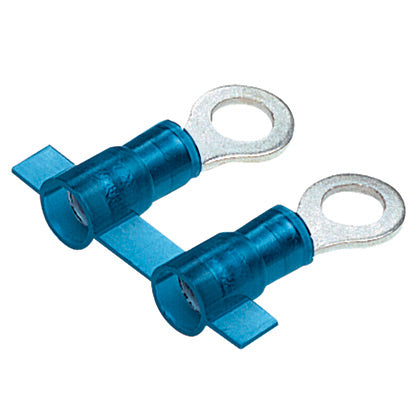

Panduit Pan-Term Reel Smart Terminal, Type PMNF-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, M3 Stud, 0.76 in Length, Insulation Grip Sleeve/Funnel Entry Barrel, Ring Tongue, 0.23 in W x 0.03 in THK Tongue, 600 VAC, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
- For nuclear containment areas and high temperature to 300 deg F (150 deg C) applications
- Natural with appropriate color stripe to identify wire range
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Panduit Panduit PMNF2-3R-3K | Ring Terminal | UPC - 07498368434 Key Specs
| Stud Hole Size (In.) | 13/100 |
| Stud Hole Size (mm) | 3.3 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Maximum Copper Conductor Size (AWG) | 14 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | 16 |
| Minimum Copper Conductor Size (AWG STR) | 16 |
| Minimum Copper Conductor Size (AWG) | 16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
Panduit Panduit PMNF2-3R-3K | Ring Terminal | UPC - 07498368434 Environmental Information
| Panduit's RoHS Statement | Download and View |
