Brand: Panduit
|
SKU:
10044678

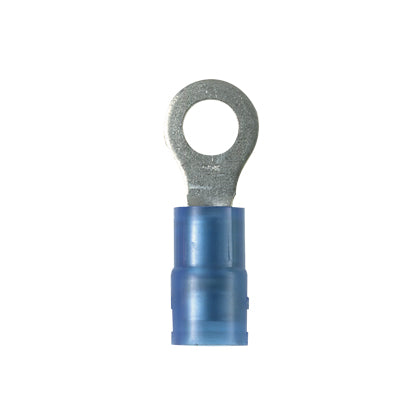

Panduit PMNF2-3R-C | Ring Terminal | UPC - 07498384250
Regular price
$148.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PMNF2-3R-C | Ring Terminal | UPC - 07498384250
Regular price
$148.76
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PMNF-R, Solid/Stranded Conductor, 1.5 to 2.5 sq-mm Conductor, M3 Stud, 0.76 in Length, Funnel Entry/Insulation Grip Sleeve Barrel, Ring Tongue, 0.23 in W x 0.03 in THK Tongue, 600 VAC, 5.5 mm L Wire Strip, 4.8 mm Clearance, 221 deg F, Copper, Tin Plated, Blue
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Panduit Panduit PMNF2-3R-C | Ring Terminal | UPC - 07498384250 Key Specs
| Stud Hole Size (In.) | 13/100 |
| Stud Hole Size (mm) | 3.3 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Maximum Copper Conductor Size (AWG) | 14 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | 16 |
| Minimum Copper Conductor Size (AWG STR) | 16 |
| Minimum Copper Conductor Size (AWG) | 16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.3 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
Panduit Panduit PMNF2-3R-C | Ring Terminal | UPC - 07498384250 Environmental Information
| Panduit's RoHS Statement | Download and View |
