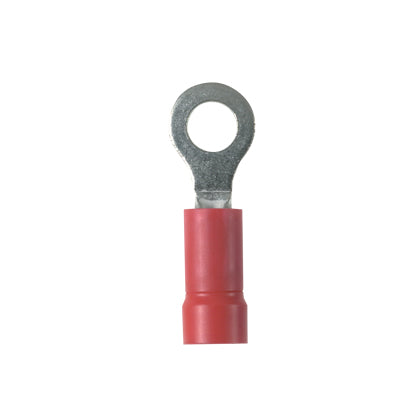

Panduit PMV1-3RB-CY | Ring Terminal | UPC - 07498369519
Regular price
$84.86
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PMV-RB, Stranded Conductor, 0.5 to 1 sq-mm Conductor, M3 Stud, 0.82 in Length, Butted Seam/Funnel Entry Barrel, Ring Tongue, 0.23 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.22 in Clearance, 221 deg F, Copper, Tin Plated, Red
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
- Types YAE-G terminals are rated 105 deg C and meet military standard AS25036 class 2 and SAE-AS7928 requirements
- Multi-finger insulation grip - Provides superior insulation holding characteristics
- Especially on epr and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Deep V groove, inner barrel serrations - Provide optimum conductivity, reliability and holding power
- Smooth funnel entry provides easy wire insertion
Panduit Panduit PMV1-3RB-CY | Ring Terminal | UPC - 07498369519 Key Specs
| Note | PMV1-3RB-CY replaces PMV1-3RB-C |
| Stud Hole Size (In.) | 13/100 |
| Stud Hole Size (mm) | 3.3 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Maximum Copper Conductor Size (AWG) | 18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed, UL 486A, UL 486B; CSA Certified C22.2 No. 65 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PMV1-3RB-CY | Ring Terminal | UPC - 07498369519 Environmental Information
| Panduit's RoHS Statement | Download and View |
